90° Tilt Glass Vacuum Lifter
A 90 Degree Tilting Pneumatic Glass Manipulator that flips glass smoothly from vertical to horizontal or horizontal to vertical for safe transfer and machine loading.
Glass Vacuum Lifter-Work in Workshops-BILLIONS LIFTER®
Glass Vacuum Lifter--Work in WORKSHOPS
Products Description
Technical Parameter
Products Description

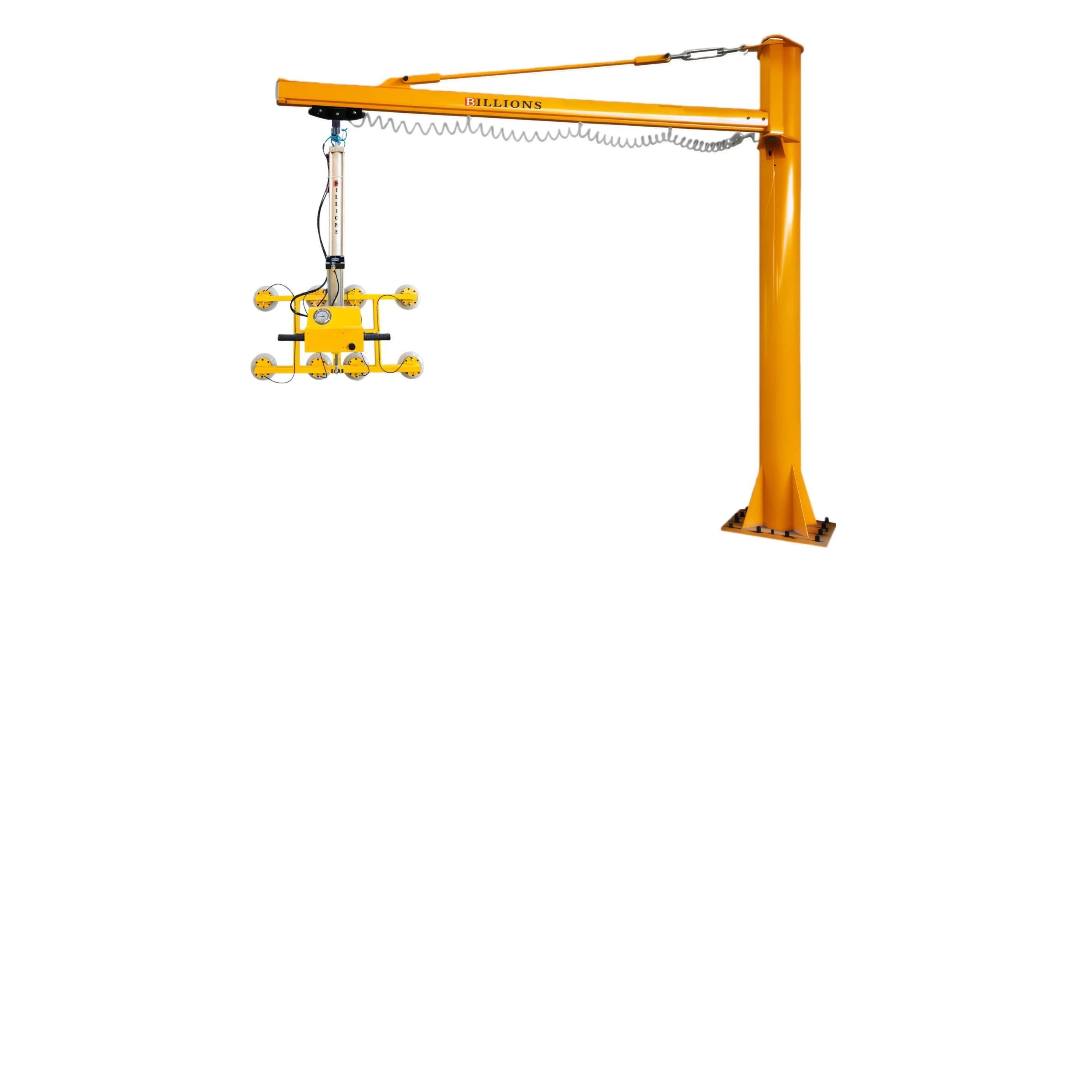

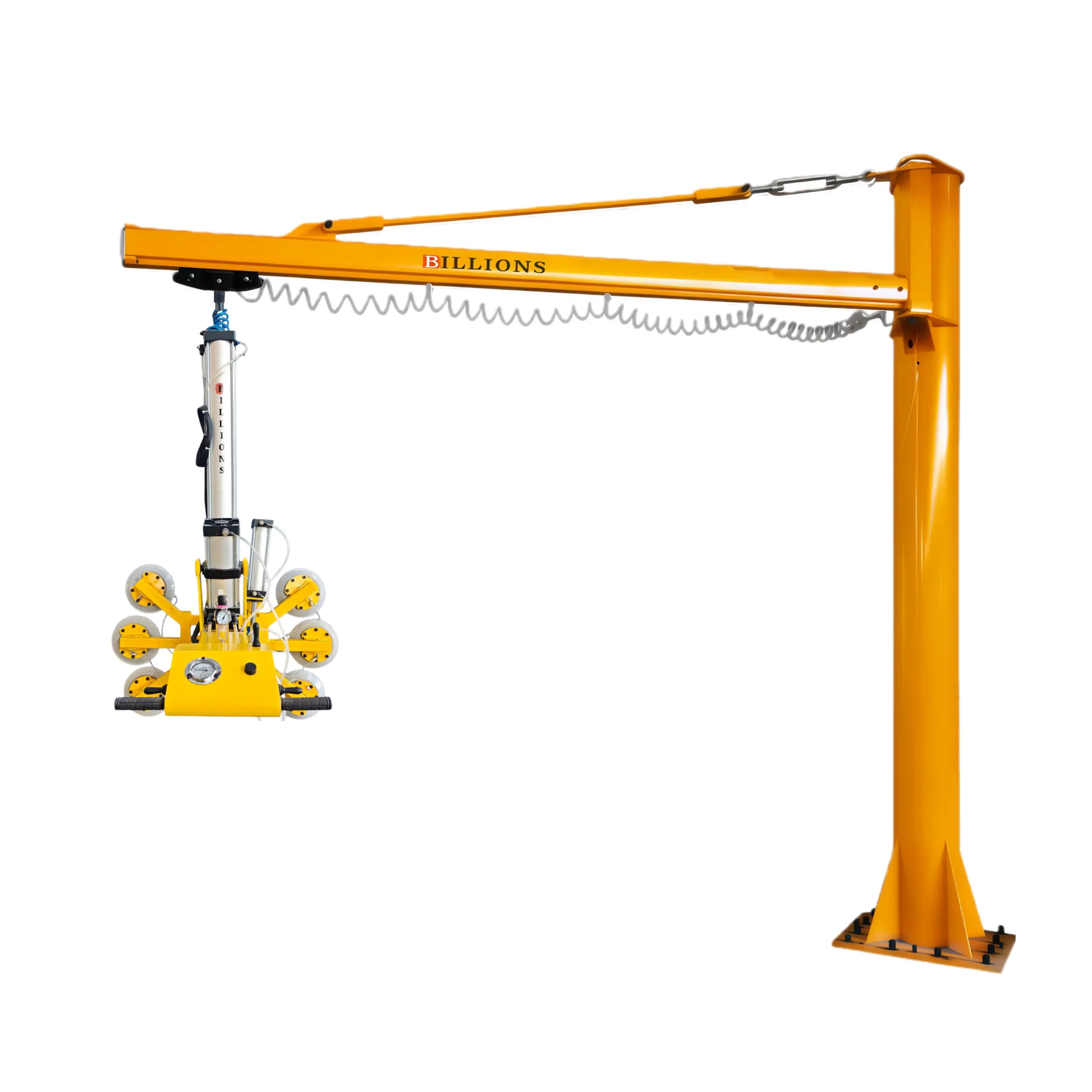

BILLIONS LIFTER® Pneumatic Glass Vacuum Lifter
BILLIONS LIFTER® Pneumatic Glass Vacuum Lifter
The BILLIONS LIFTER® Pneumatic Glass Vacuum Lifter is a compressed air glass vacuum lifting equipment engineered specifically for glass processing plants. Driven entirely by compressed air, this cylinder-operated glass vacuum hoist uses powerful suction cups to securely grip the glass, while the lifting cylinder provides smooth vertical movement.

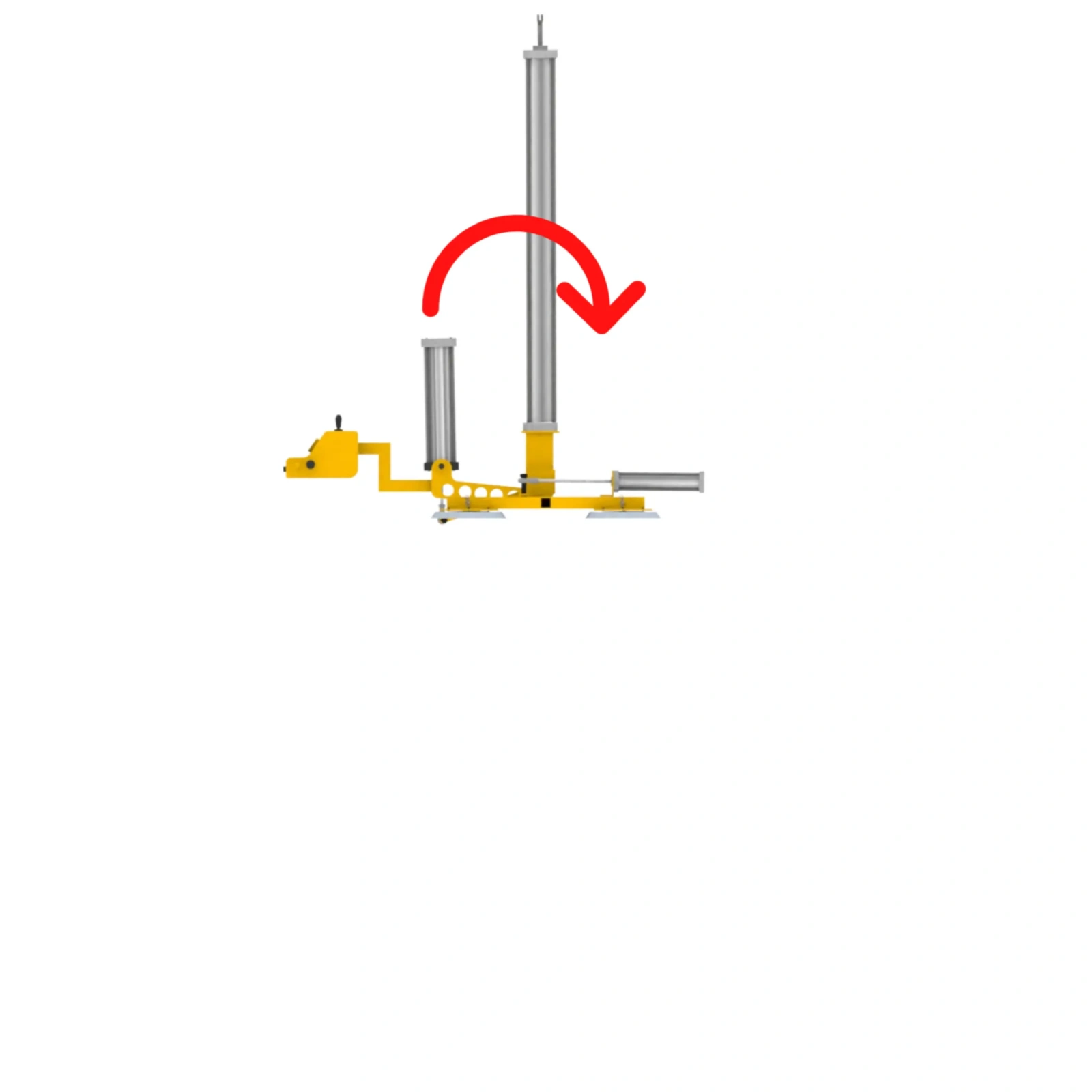

90° Tilt
Glass flipping function

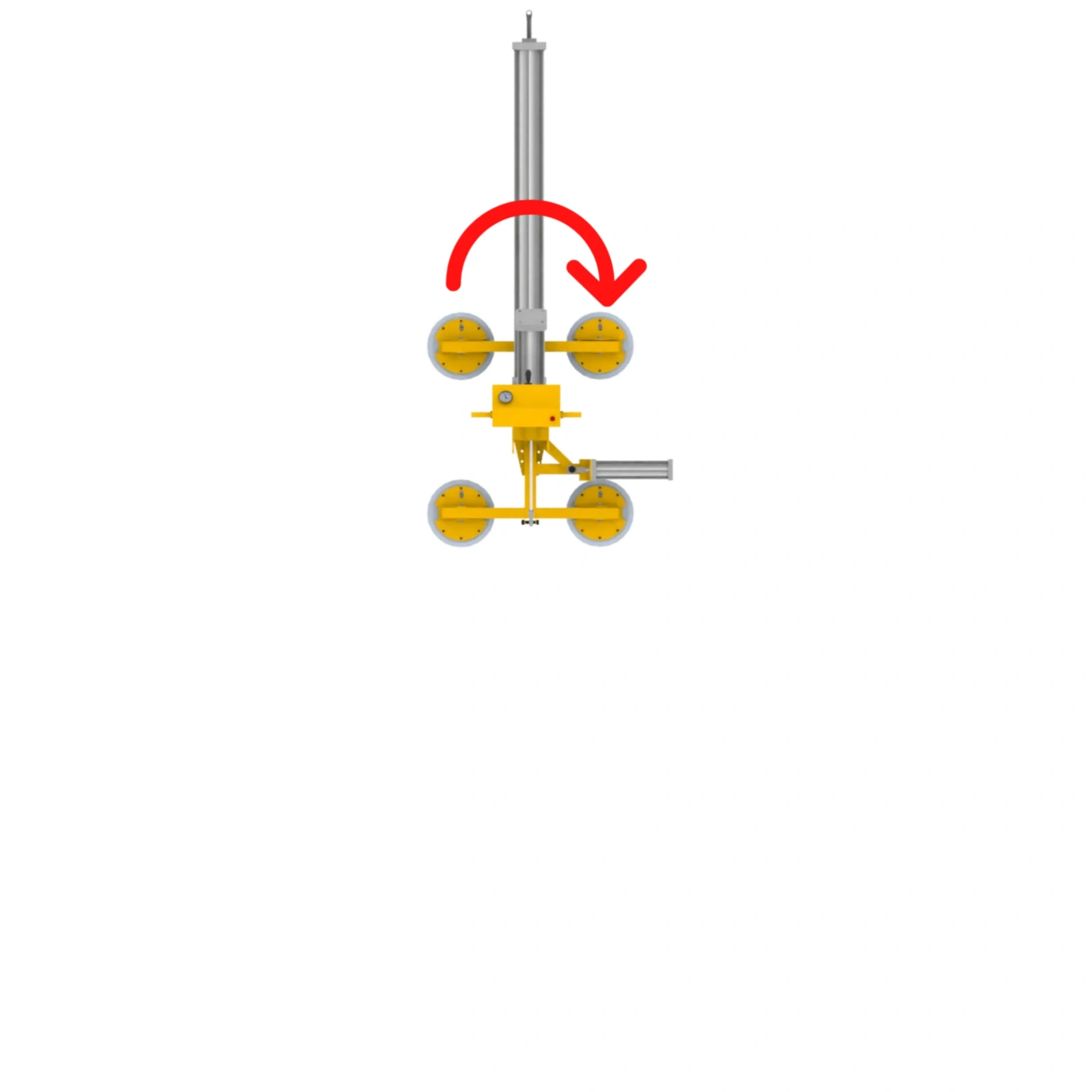

90° Rotate
Glass positioning control

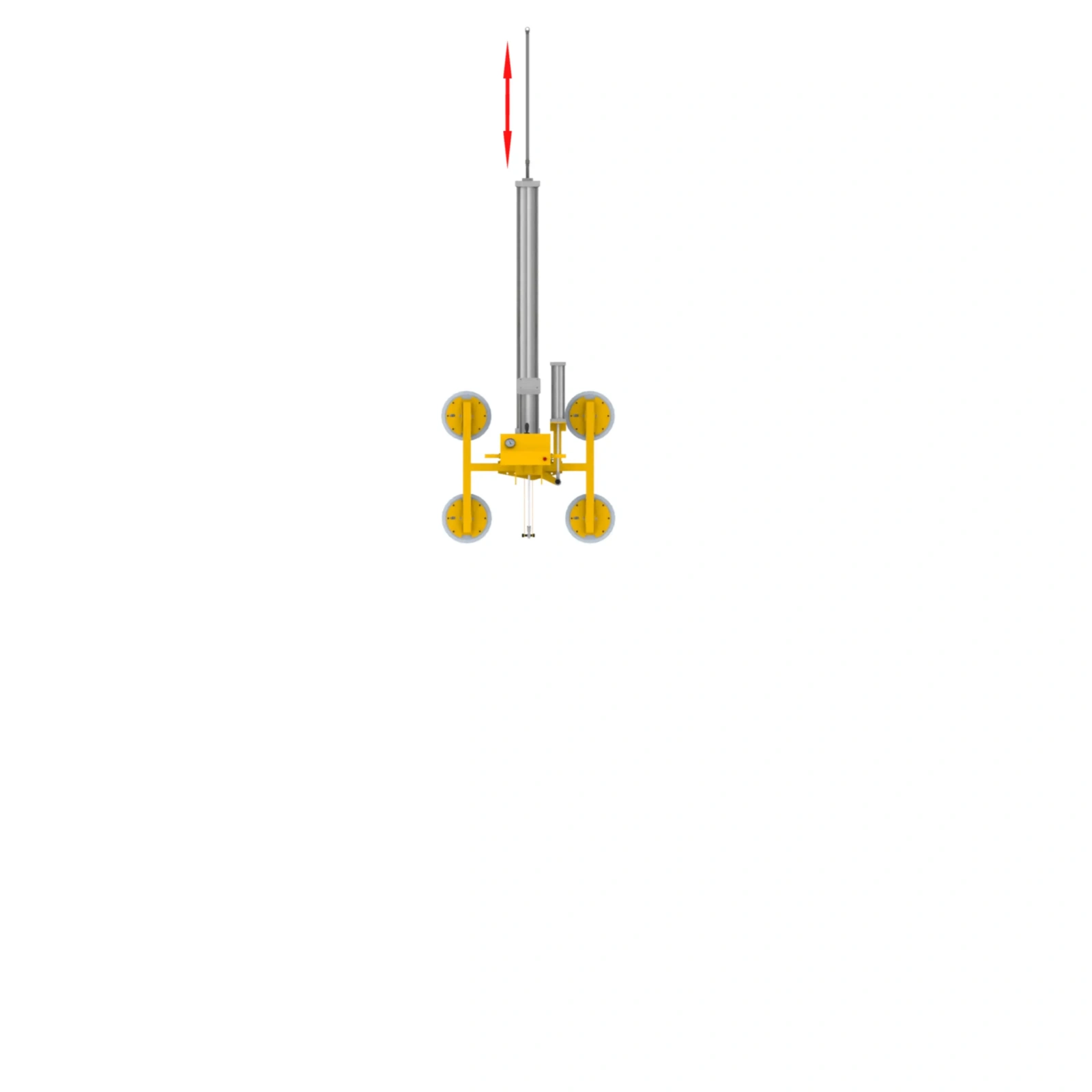

Pneumatic Lift
Cylinder vertical movement
≥8 kgf/cm²
Compressed air driven
Pneumatic. Safe. Glass-Ready.
Air-powered glass vacuum lifting device for IG lines, edge grinding, tempering and cutting table handling.
Function Introduction
Core Functions of the Pneumatic Glass Vacuum Lifter
The BILLIONS LIFTER® pneumatic glass manipulator integrates 90° flipping, 90° rotation, pneumatic cylinder lifting, and compressed-air-driven handling into one compact glass vacuum lifting system.
Application Scenarios
Designed for Glass Processing Line Loading & Unloading

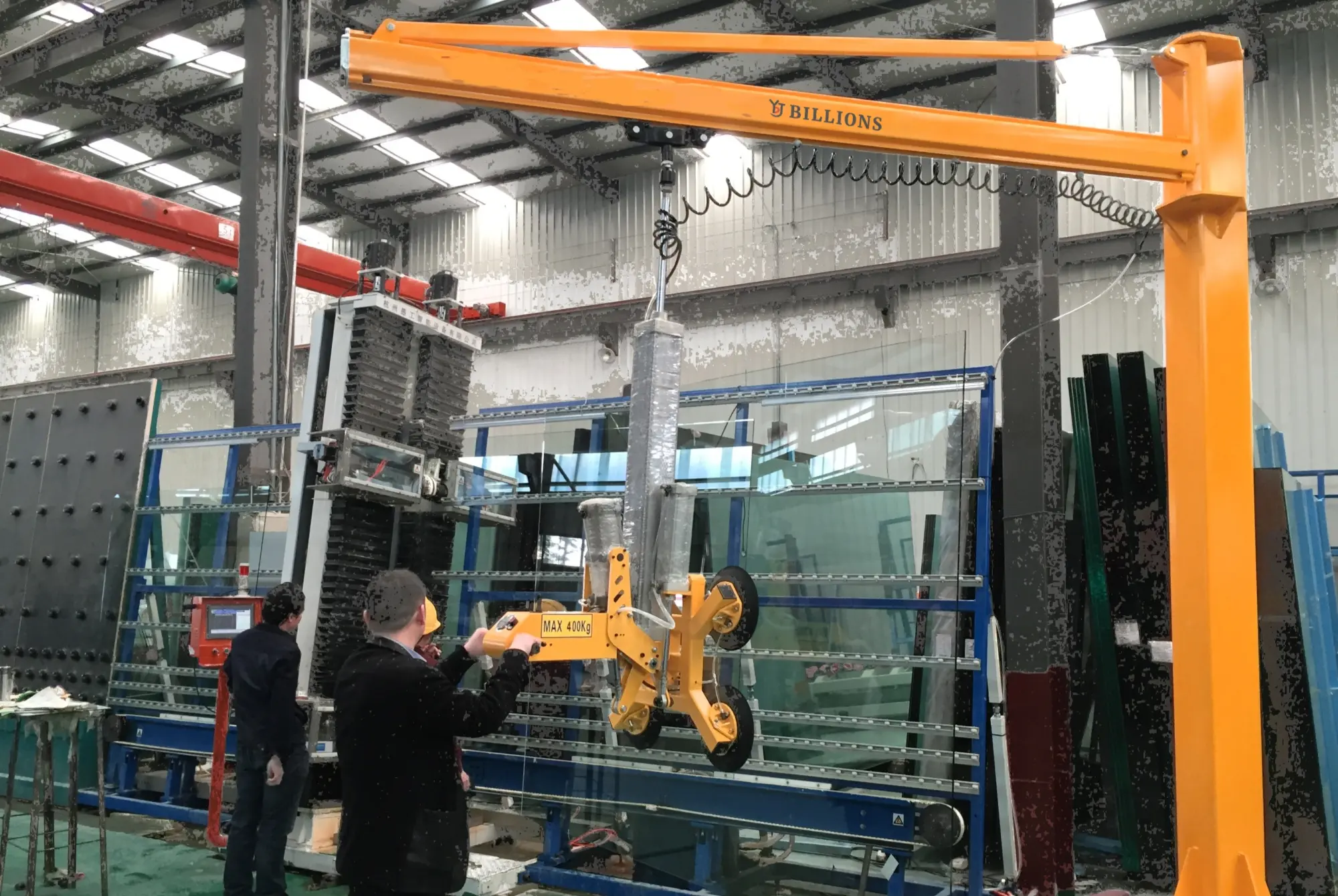

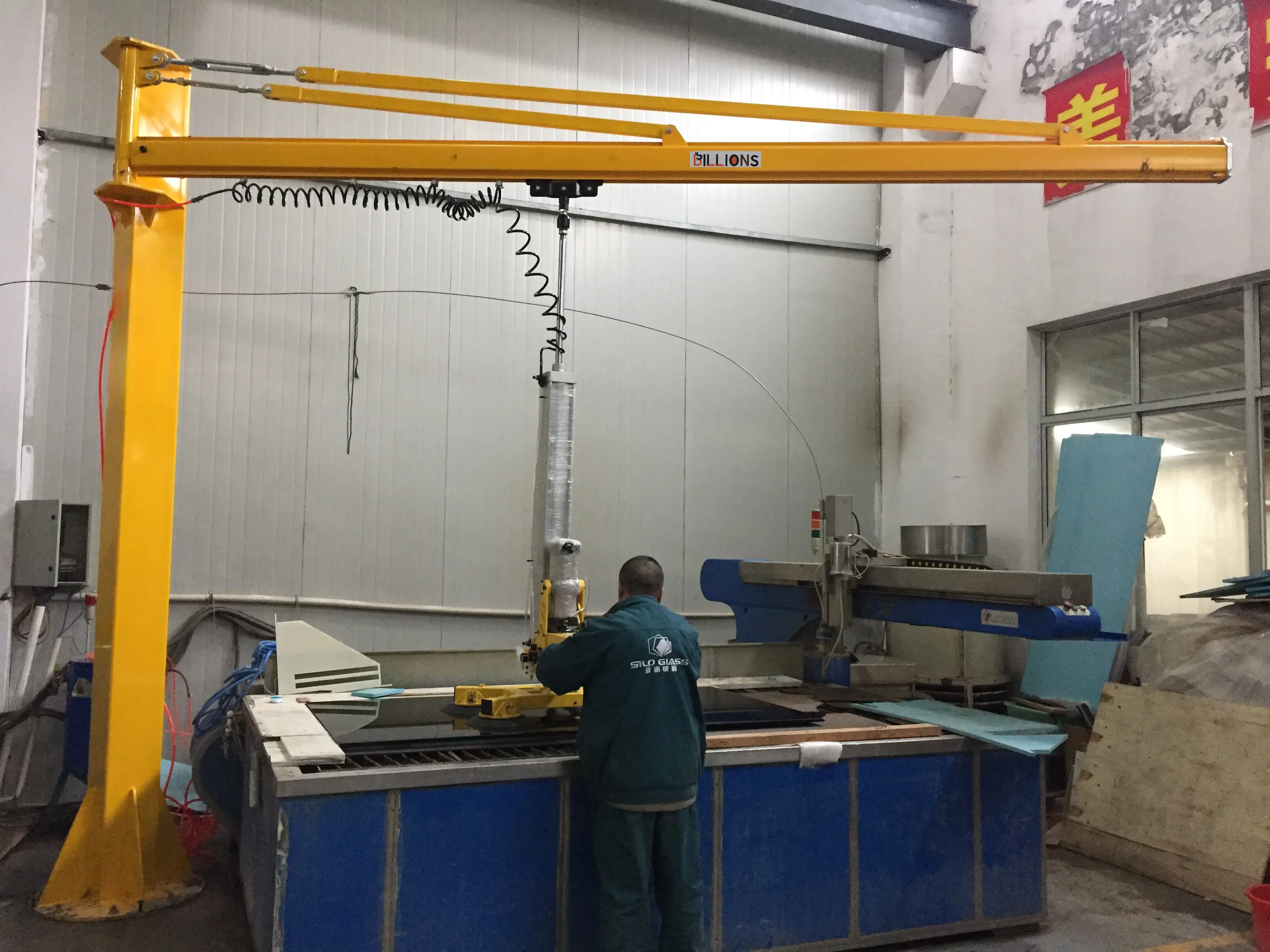

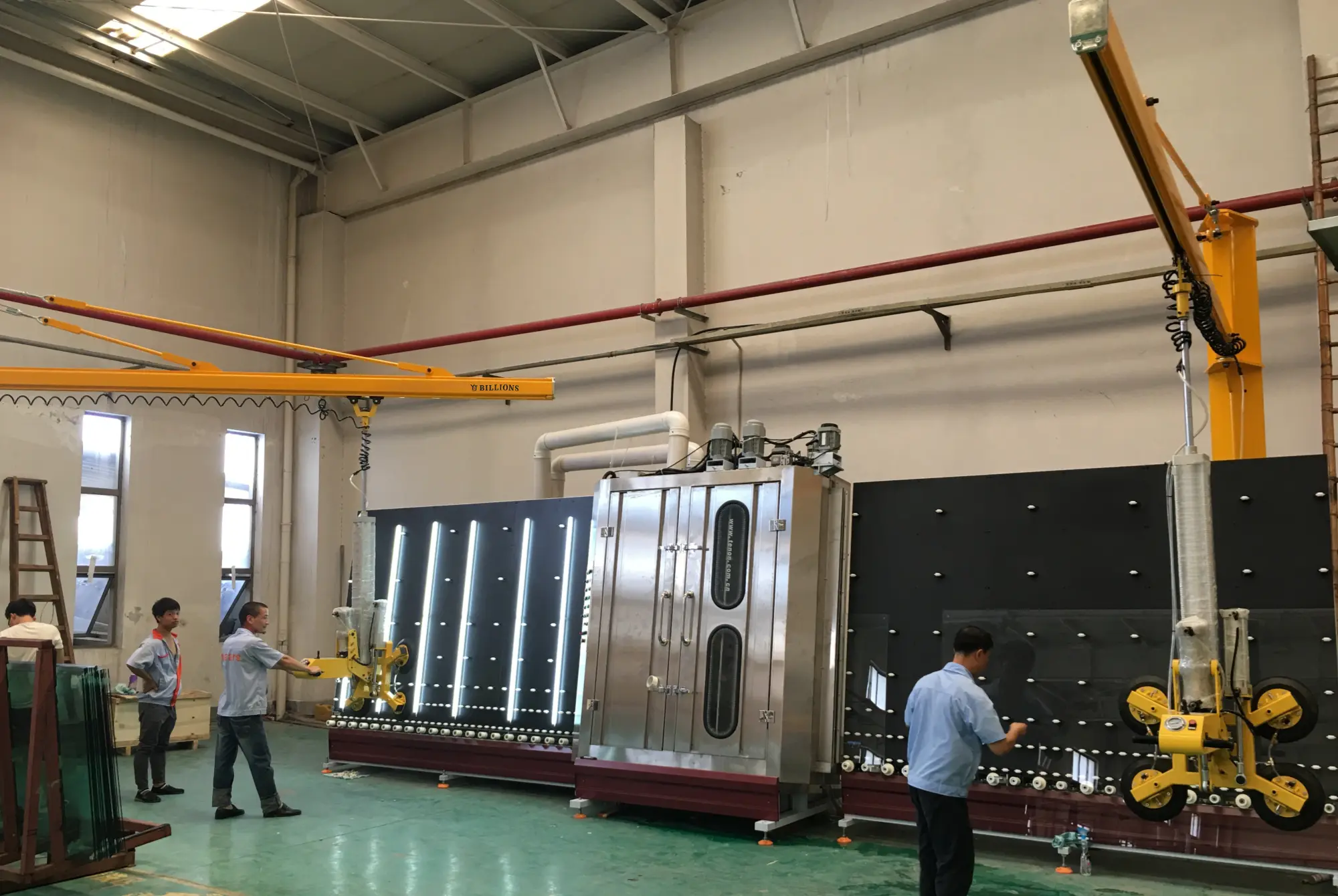

BILLIONS LIFTER® pneumatic glass vacuum lifting equipment is suitable for insulating glass lines, edge grinding machines, tempering furnaces, cutting tables and lamination lines.
Standard Models
Pneumatic Glass Vacuum Lifter Models
Click to expand the standard model specifications. Each model combines 0-90° flipping, 0-90° rotation, pneumatic lifting and suction cup gripping for glass handling.
View Full Product Specifications Load capacity, function, suction cup diameter, suction cup quantity and compressed air supply.
| Model | Product Image | Load Capacity | Function | Sucker Diameter | Sucker Quantity | Air Supply |
|---|---|---|---|---|---|---|
| TB-VGP-200KG |
|
200 kgApprox. 441 lb | 0-90° Flipping + 0-90° RotationDual Function | 250 mmApprox. 9.8 in | 22 suction cups | ≥0.8 MPa≥8 kgf/cm² |
| TB-VGP-250KG |
|
250 kgApprox. 551 lb | 0-90° Flipping + 0-90° RotationDual Function | 250 mmApprox. 9.8 in | 44 suction cups | ≥0.8 MPa≥8 kgf/cm² |
| TB-VGP-350KG |
|
350 kgApprox. 772 lb | 0-90° Flipping + 0-90° RotationDual Function | 250 mmApprox. 9.8 in | 66 suction cups | ≥0.8 MPa≥8 kgf/cm² |

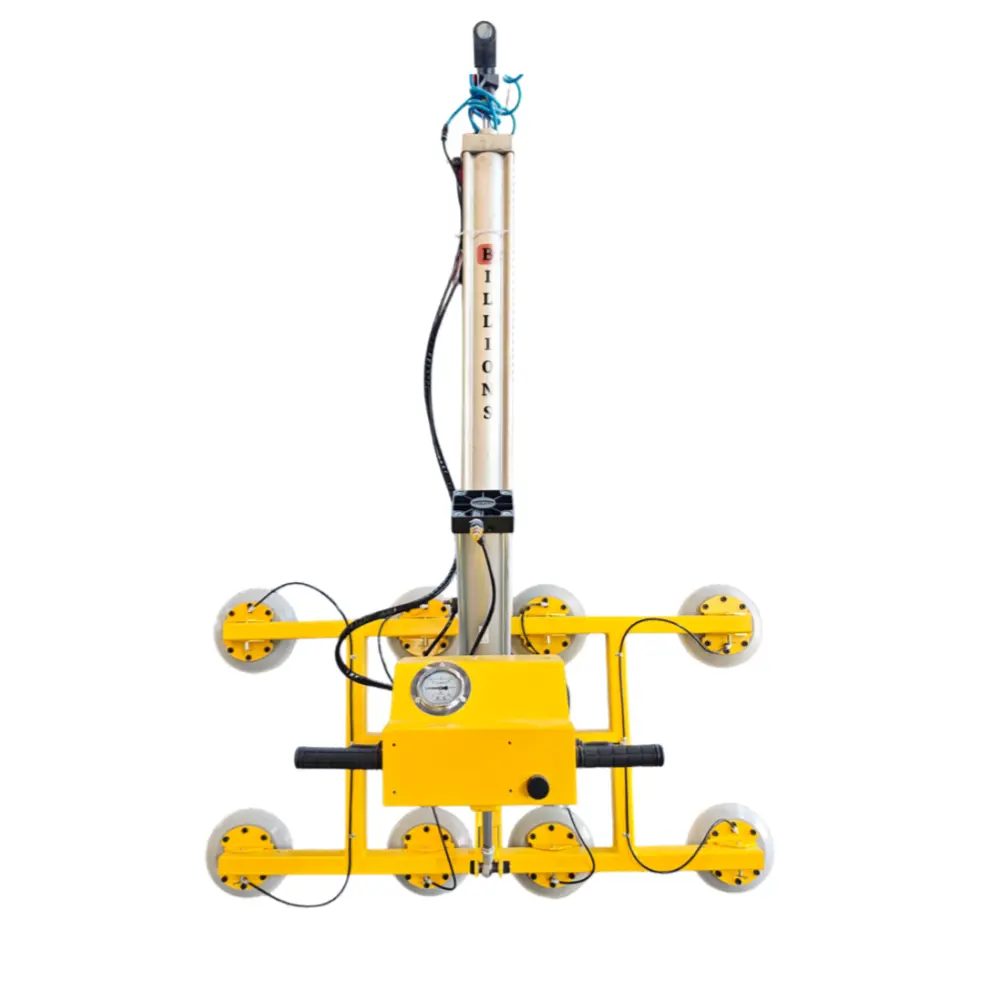

| TB-VGP-400KG |
|
400 kgApprox. 882 lb | 0-90° Flipping + 0-90° RotationDual Function | 250 mmApprox. 9.8 in | 88 suction cups | ≥0.8 MPa≥8 kgf/cm² |
Reference note:
Standard configurations shown above are commonly used for glass thicknesses from 3 mm to 19 mm.
Custom configurations for different glass sizes, thicknesses and heavier capacities are also available.
Video Demonstration
See BILLIONS Pneumatic Glass Vacuum Lifter in Action
Watch how the air-powered glass vacuum lifter performs 90° tilting, 90° rotation, pneumatic lifting and glass loading operations in real glass processing environments.
Pneumatic Glass Handling Demonstration
Compressed air glass vacuum lifting equipment for IG lines, edge grinding machines, tempering furnaces and cutting table applications.
Factory Direct & Customization
Contact BILLIONS LIFTER® for Pneumatic Glass Vacuum Lifting Solutions
BILLIONS LIFTER® is a direct manufacturer of pneumatic glass vacuum lifting equipment for glass processing plants. We provide compressed air glass manipulators, cylinder-operated glass vacuum hoists, and customized glass handling systems for IG lines, edge grinding machines, tempering furnaces, cutting tables and lamination lines.
Tell us your glass size, weight, thickness, required movements, machine connection point and compressed air condition. Our engineering team will recommend the most suitable pneumatic glass lifting solution for your production line.
FAQ
Frequently Asked Questions
Common buyer questions about pneumatic glass vacuum lifters, air-powered glass manipulators and compressed air driven glass handling systems.
Q1: What is a pneumatic glass vacuum lifter, and how does it differ from an electric glass lifter?
A pneumatic glass vacuum lifter – also called a compressed air glass vacuum lifter, air-powered glass manipulator, or cylinder-operated vacuum hoist – uses compressed air to generate vacuum and power all movements. Unlike electric vacuum lifters, the BILLIONS LIFTER® pneumatic glass lifter requires no electrical power directly at the lifting unit, making it ideal for dusty, wet glass processing plants. It provides explosion-proof operation, simpler maintenance, and is perfectly suited for high-cycle loading/unloading on insulating glass lines, edge grinding machines, and tempering furnaces.
Q2: Does BILLIONS LIFTER offer a 90° tilt and 90° rotation glass vacuum lifter?
Yes. BILLIONS LIFTER® provides both 90° tilt glass vacuum lifters and 90° rotation glass vacuum hoists, as well as combined tilt-and-rotate models. Whether you need to tilt glass sheets from horizontal to vertical for edge polisher feeding or rotate them into position for a tempering furnace, the cylinder-driven mechanism ensures smooth, controlled movement with load capacities from 200 kg to 500 kg.
Q3: What is the maximum load capacity? What glass thickness can it handle?
Standard BILLIONS LIFTER® pneumatic glass vacuum lifters cover 200 kg, 300 kg, 400 kg and 500 kg capacities. They are generally suitable for glass thicknesses from 3 mm to 19 mm. Custom configurations for heavier loads or non-standard glass dimensions are also available.
Q4: What happens if the compressed air supply fails? Will the glass fall?
The glass will not fall immediately. Every BILLIONS LIFTER® air-powered glass vacuum lifting device is equipped with check valves, a vacuum storage tank and a pneumatic safety lock. In the event of an air supply loss, the vacuum is maintained long enough to sound an alarm and allow operators to safely lower or secure the load.

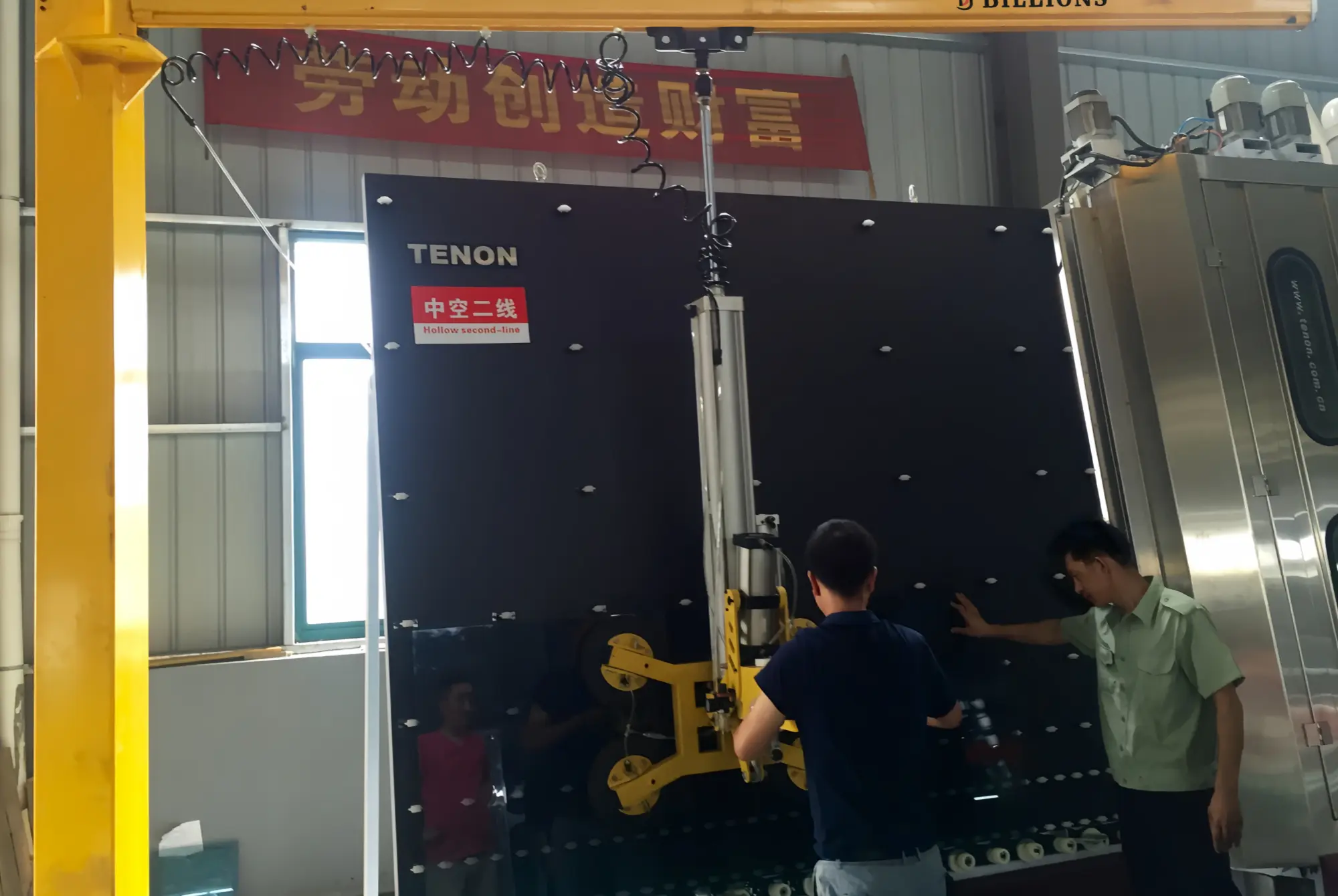

Q5: Can this vacuum lifter be used for loading glass onto an insulating glass (IG) line?
Absolutely. BILLIONS LIFTER® compressed air glass manipulators are designed specifically for loading and unloading glass on IG lines, edge grinding machines, tempering lines and cutting tables. The 90° tilting version is particularly popular for picking glass from storage racks and placing it horizontally onto the IG line washing machine inlet, dramatically reducing manual handling and breakage.
Q6: Is electrical power required? How do you operate it?
No electrical power is required at the lifter. The entire glass vacuum hoist operates solely on compressed air, typically 0.6–0.8 MPa, to power vacuum generation and cylinder lifting, tilting, and rotating. Operators control all movements via a handle or push-button pendant – fully pneumatic, simple and safe.
Technical Parameter
BILLIONS VACUUM LIFTERS
Professional Glass Handling Solutions - Efficient, Safe, Reliable

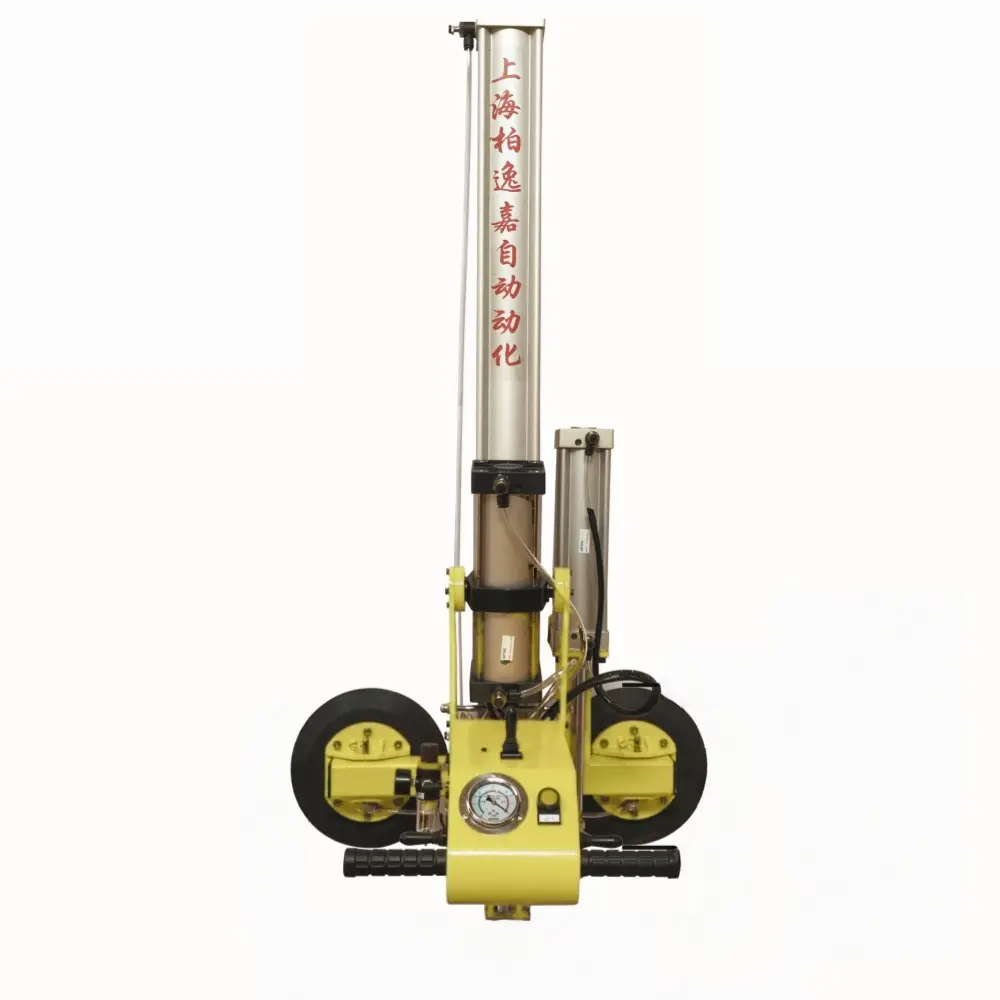

TB-VGP-200KG
- Load Capacity: 200KG
- Function: 0-90° Flipping + 0-90° Rotation Dual Function
- Sucker Diameter: 250mm
- Sucker Quantity: 2
TB-VGP-300KG
- Load Capacity: 300KG
- Function: 0-90° Flipping + 0-90° Rotation Dual Function
- Sucker Diameter: 300mm
- Sucker Quantity: 4
TB-VGP-500KG
- Load Capacity: 500KG
- Function: 0-90° Flipping Single Function
- Sucker Diameter: 300mm
- Sucker Quantity: 8
