Battery-Powered
No external power source required, providing maximum mobility and flexibility for outdoor glazing and on-site installation.
Glass Vacuum Lifter-work on JOB SITE (Manual)-BILLIONS LIFTER
Glass Vacuum Lifter-work on JOB SITE (Manual)
Products Description
Technical Parameter
Products Description
BILLIONS LIFTER® Electric Glass Vacuum Lifter
BILLIONS LIFTER® Electric Glass Vacuum Lifter – 24V Battery, 1500kg, Manual Tilt & Rotate
The BILLIONS LIFTER® Electric Glass Vacuum Lifter is a high-capacity, battery-powered glass suction lifter engineered for outdoor and on-site glass installation. Powered entirely by a 24V rechargeable battery, this cordless glass vacuum hoist eliminates the need for external power cables or air hoses, giving glazing crews unrestricted mobility.
With a maximum lifting capacity of 1500kg, the unit securely handles large curtain wall panels, tempered laminated glass, and oversized glazing sheets. Its robust vacuum system and reservoir maintain constant adhesion, while the 90° manual tilt and 360° manual rotation allow operators to effortlessly position glass from horizontal to vertical and fine-tune alignment during installation.
<1500KG
Max lifting load
>8 Hours
Battery endurance
90° Flip
Manual tilt function
360° Rotate
Manual rotation function
24V Battery. 1500kg Capacity. Outdoor Ready.
Cordless electric glass manipulator for curtain wall panels, structural glazing and on-site glass lifting.
Function Introduction
Battery-Powered Glass Lifting for Outdoor Installation
Designed for glazing crews who need mobility, long endurance, safety and simple positioning control on demanding building sites.
Long Endurance
Extended operating time supports continuous use in demanding installation projects and long work shifts.
High Safety
Reliable vacuum suction, reservoir protection and safety alarms help ensure secure glass handling even in challenging conditions.
Easy Mobility
Ideal for outdoor and on-site installation projects with no power constraints, no air hose and no cable limitation.
<1500KG
Maximum load capacity for large glass panels and heavy glazing sheets.
>8 Hours
Battery life for practical installation workflows and extended site use.
90° + 360°
Manual tilt and rotation for positioning glass from transport to installation angle.
Application Scenarios
Cordless Glass Handling for Construction & Glazing Projects

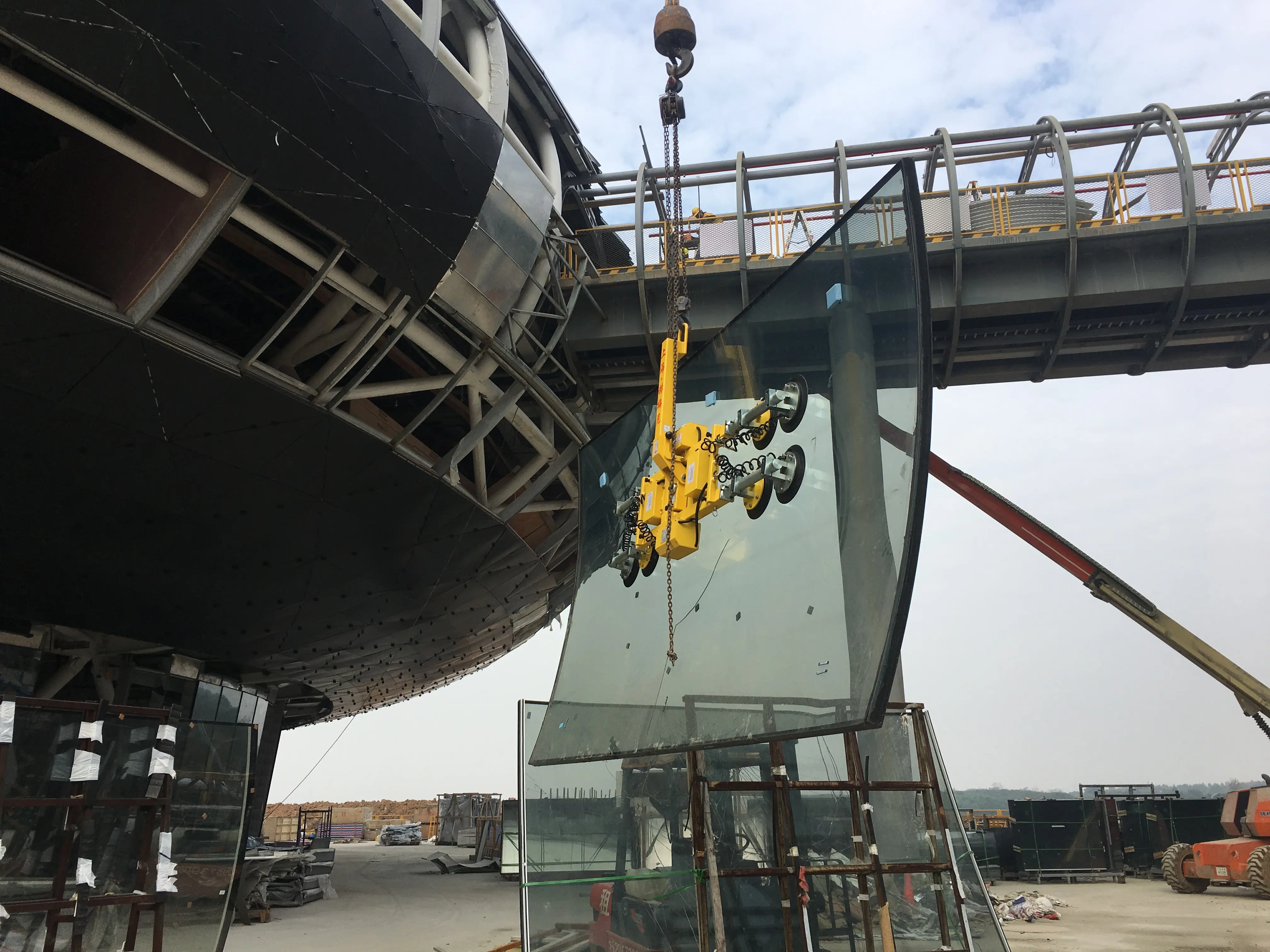

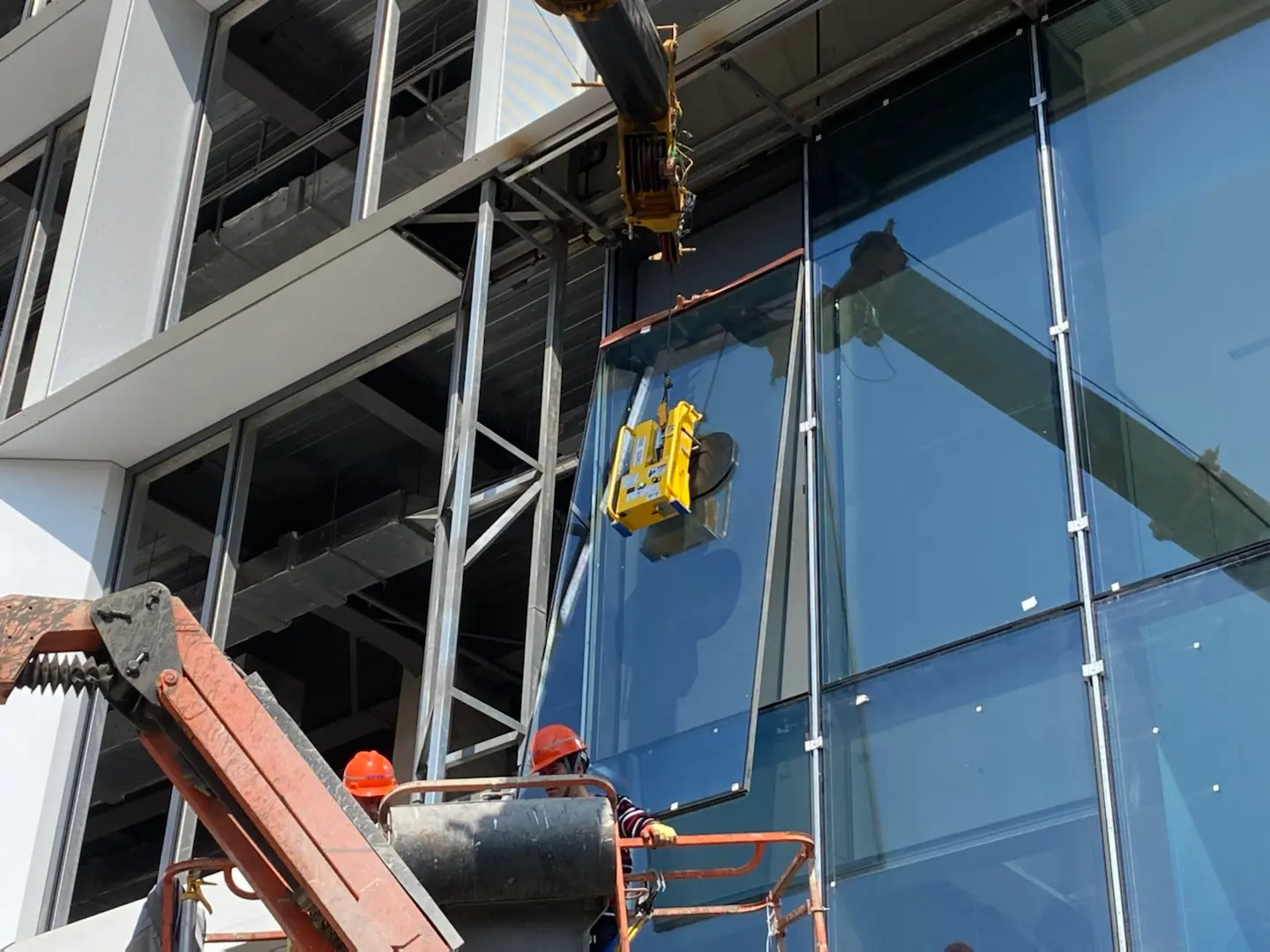

BILLIONS LIFTER® electric glass vacuum lifter is designed for curtain wall installation, façade glazing, window and door glazing, shopfronts, skylights, atriums, retrofit and general glass handling.
Product Specifications
Electric Glass Vacuum Lifter Models
Click to expand model specifications. BILLIONS LIFTER® provides multiple suction cup layouts and capacities for different glass sizes and installation requirements.
View Full Product Specifications Load capacity, tilt and rotation function, suction cup size, suction quantity, battery system and reference units.
| Model / Series | Product Image | Load Capacity | Function | Sucker Size | Sucker Quantity | Power System |
|---|---|---|---|---|---|---|

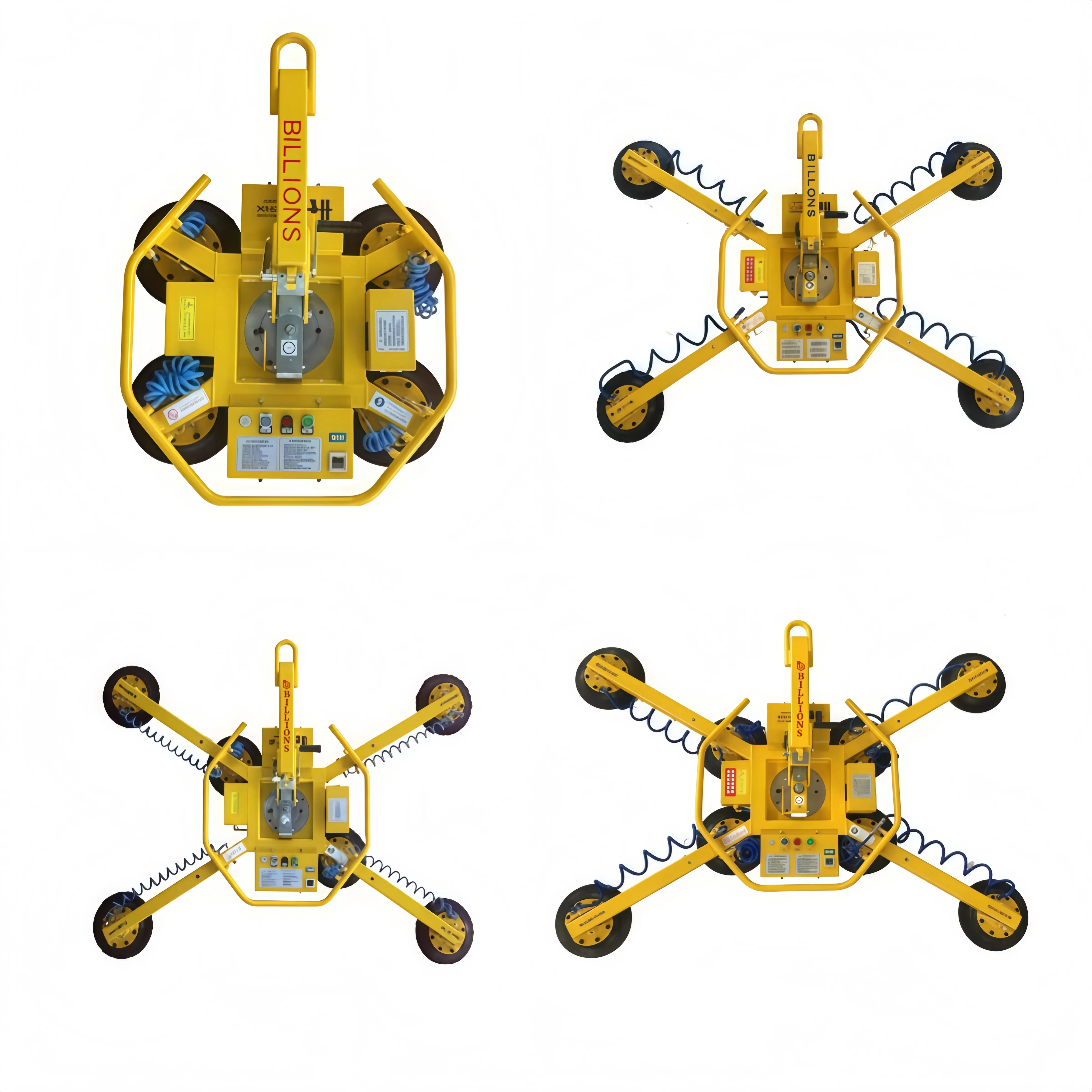

| TB-VGOX Series |
|

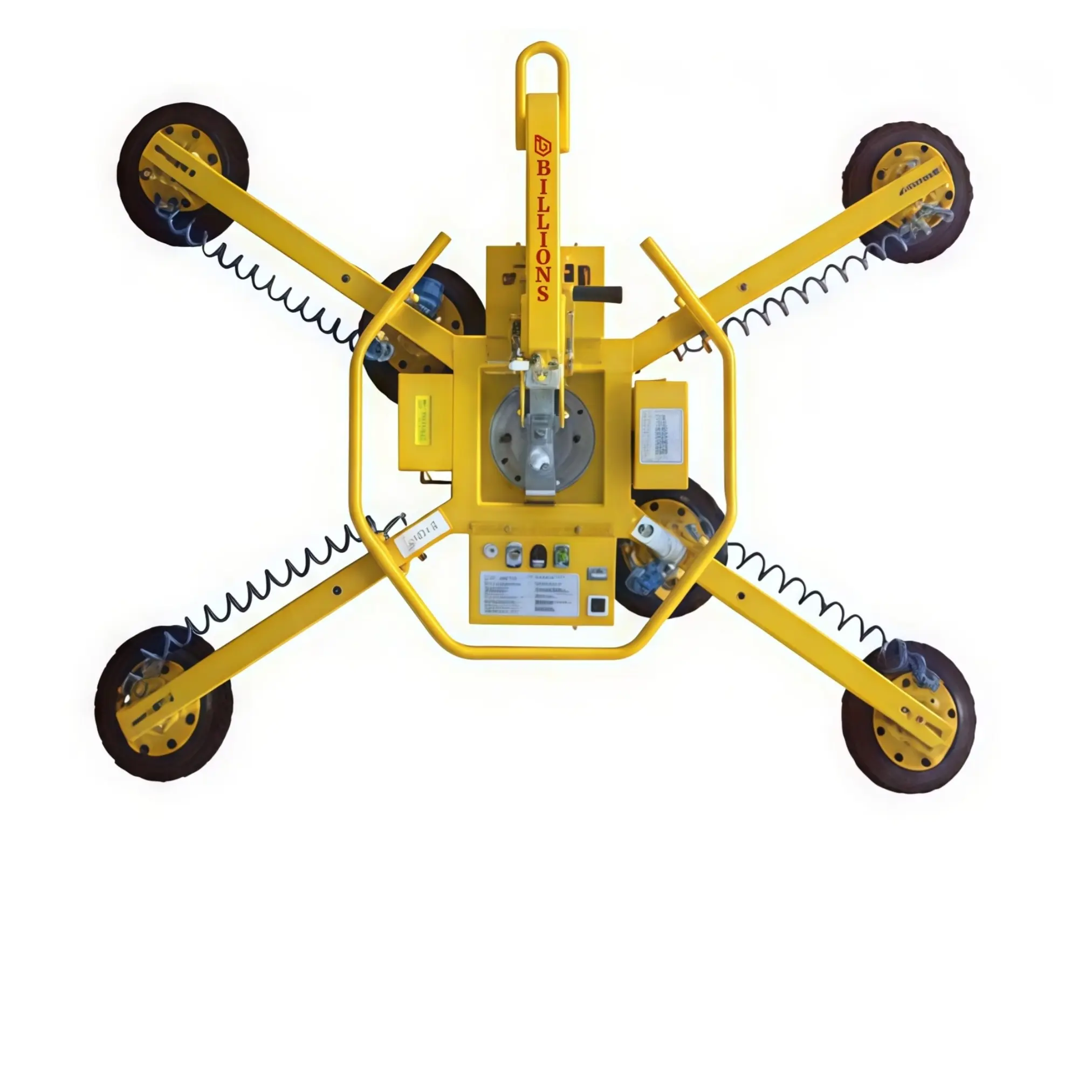

400 / 600 / 800 kgApprox. 882 / 1,323 / 1,764 lb | 90° Flip + 360° RotationManual tilt and manual rotation | 300 mmApprox. 11.8 in diameter | 4 / 6 / 8Configurable suction cups | 24V BatteryRechargeable DC battery |
| TB-VGOI Series |
|

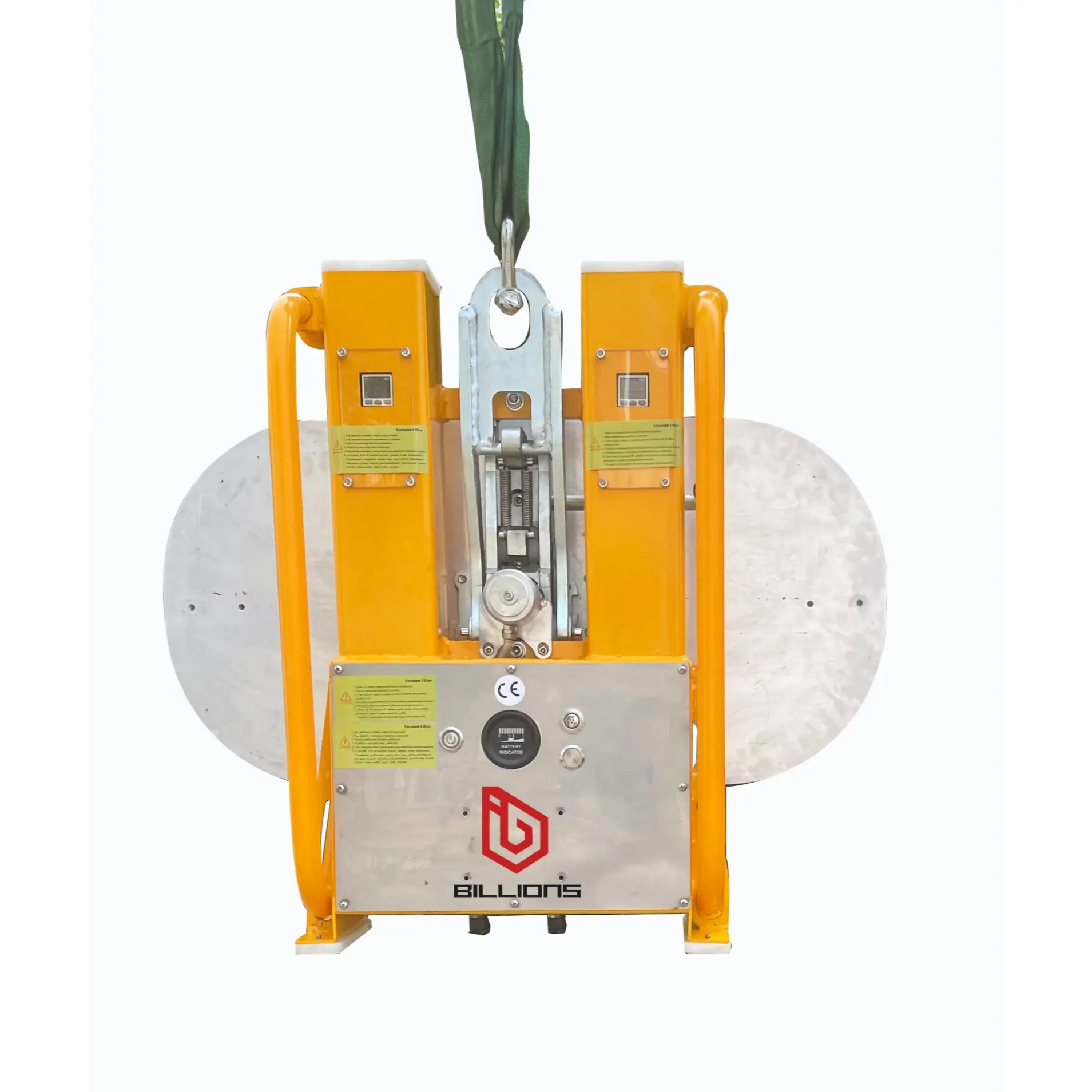

500 / 800 kgApprox. 1,102 / 1,764 lb | 90° Flip + 360° RotationDual function positioning | 800 × 400 mm / 1000 × 500 mmApprox. 31.5 × 15.7 in / 39.4 × 19.7 in | 1Large vacuum pad | 24V BatteryRechargeable DC battery |
| TB-VGOH Series |
|

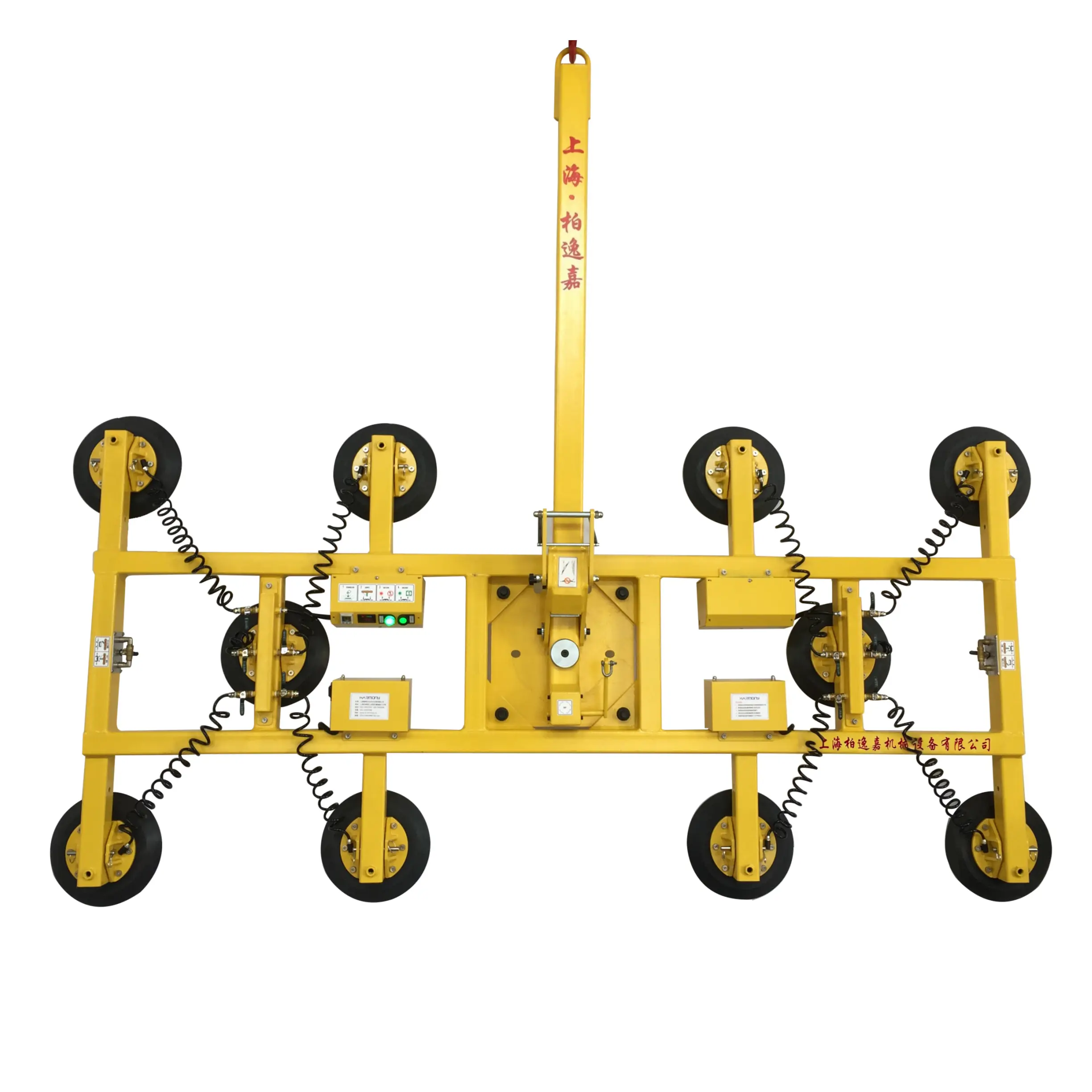

1000 / 1500 kgApprox. 2,205 / 3,307 lb | 90° Flip + 360° RotationDual function positioning | 300 mmApprox. 11.8 in diameter | 10 / 1610 or 16 suction cups | 24V BatteryRechargeable DC battery |
Video Demonstration
See BILLIONS Electric Glass Vacuum Lifter in Action
Watch how the battery-powered glass suction lifter performs 90° manual tilt, 360° manual rotation and on-site glass installation handling.
Electric Glass Installation Demonstration
24V battery-powered glass vacuum lifter for curtain wall panels, structural glazing, skylights, balustrades and replacement glass.
Factory Direct & Customization
Contact BILLIONS LIFTER® for Electric Glass Vacuum Lifting Solutions
BILLIONS LIFTER® is a direct manufacturer of battery-powered glass vacuum lifters for outdoor glass installation, curtain wall glazing, window replacement, skylight installation, shopfront glazing and general construction-site glass handling.
Tell us your glass size, glass weight, installation height, crane or forklift connection method, rotation requirements and site working conditions. Our engineering team will recommend the most suitable electric glass manipulator configuration.
FAQ
Frequently Asked Questions
Common buyer questions about electric glass vacuum lifters, battery-powered glass suction lifters and cordless glazing equipment.
Q1: What is an electric glass vacuum lifter, and how does it compare with pneumatic or electric hoist types?
A: An electric glass vacuum lifter, also called a battery-powered glass suction lifter, cordless glass manipulator, or DC electric glass vacuum hoist, uses an on-board 24V battery to run a vacuum pump that grips the glass. Unlike pneumatic lifters that require an air hose, BILLIONS LIFTER® electric glass lifters are completely self-contained – no cables, no hoses. This makes them ideal for outdoor glass installation, curtain wall glazing, and glass replacement where power and air are hard to reach.
Q2: Does BILLIONS LIFTER offer a 90° manual tilt and 360° manual rotation electric glass lifter?
A: Yes. The standard BILLIONS LIFTER® battery glass lifter includes both a 90° manual tilt and a 360° manual rotation mechanism. The 90° manual tilting function lets you rotate glass from horizontal transport position to vertical installation position, while the 360° manual rotating head provides precise angular alignment to match window frames or mullions. Both are operated effortlessly via hand wheel or lever – no power needed for positioning.
Q3: The maximum load is 1500kg. How is safety ensured? Will the glass fall if the battery dies?
A: The BILLIONS LIFTER® electric glass vacuum lifter is equipped with a dual-circuit vacuum system and a vacuum storage reservoir. In the event of battery failure or power loss, check valves automatically seal the suction cups, holding vacuum for a guaranteed period, typically over 20 minutes. An audio-visual alarm activates immediately, giving the operator plenty of time to lower the glass safely or secure it.
Q4: How long does the 24V battery last? Can it work while charging?
A: Battery life depends on usage frequency and load. Under continuous full-load 1500kg cycling, a fully charged battery can last over half a workday; with lighter loads or intermittent use, it often lasts a full day. The smart charger supports fast charging. We do not recommend using the lifter while connected to the charger for safety. Optional extended battery packs are available from BILLIONS LIFTER to meet longer shifts.
Q5: What applications is this electric glass lifter designed for? Can it be used indoors?
A: It is purpose-built for outdoor glass installation – curtain wall panel mounting, skylight glazing, window replacement, balustrade glass setting, etc. It can certainly be used indoors as well, such as in exhibition halls or clean workshops, as long as no explosion-proof rating is required. Its cordless, portable nature makes it a favorite among glazing contractors and installation crews.
Q6: Can it handle oversized or slightly curved glass?
A: Yes. BILLIONS LIFTER® electric glass vacuum lifters feature an adjustable beam and configurable suction cup positions to accommodate various glass sizes and shapes, including extra-wide curtain wall panels and mild cylindrical bends. For specific radii, we can recommend a customized cup layout to ensure full adhesion.
