Metal Sheet Loading and Unloading
Efficiently load and unload metal sheets for laser cutting machines while reducing manual handling intensity and improving workshop productivity.
Sheet Vacuum Lifter (AIR)-BILLIONS LIFTER®
Sheet metal handling. It operates without the need for a power cord or battery. By simply connecting to an air compressor, the system utilizes 0.6–0.8 MPa compressed air as its power source. The built-in vacuum generator creates negative pressure to securely grip sheet metal, while the cylinder’s lifting and lowering motion—assisted by a jib crane—completes the handling process.
Products Description
Technical Parameter
Products Description

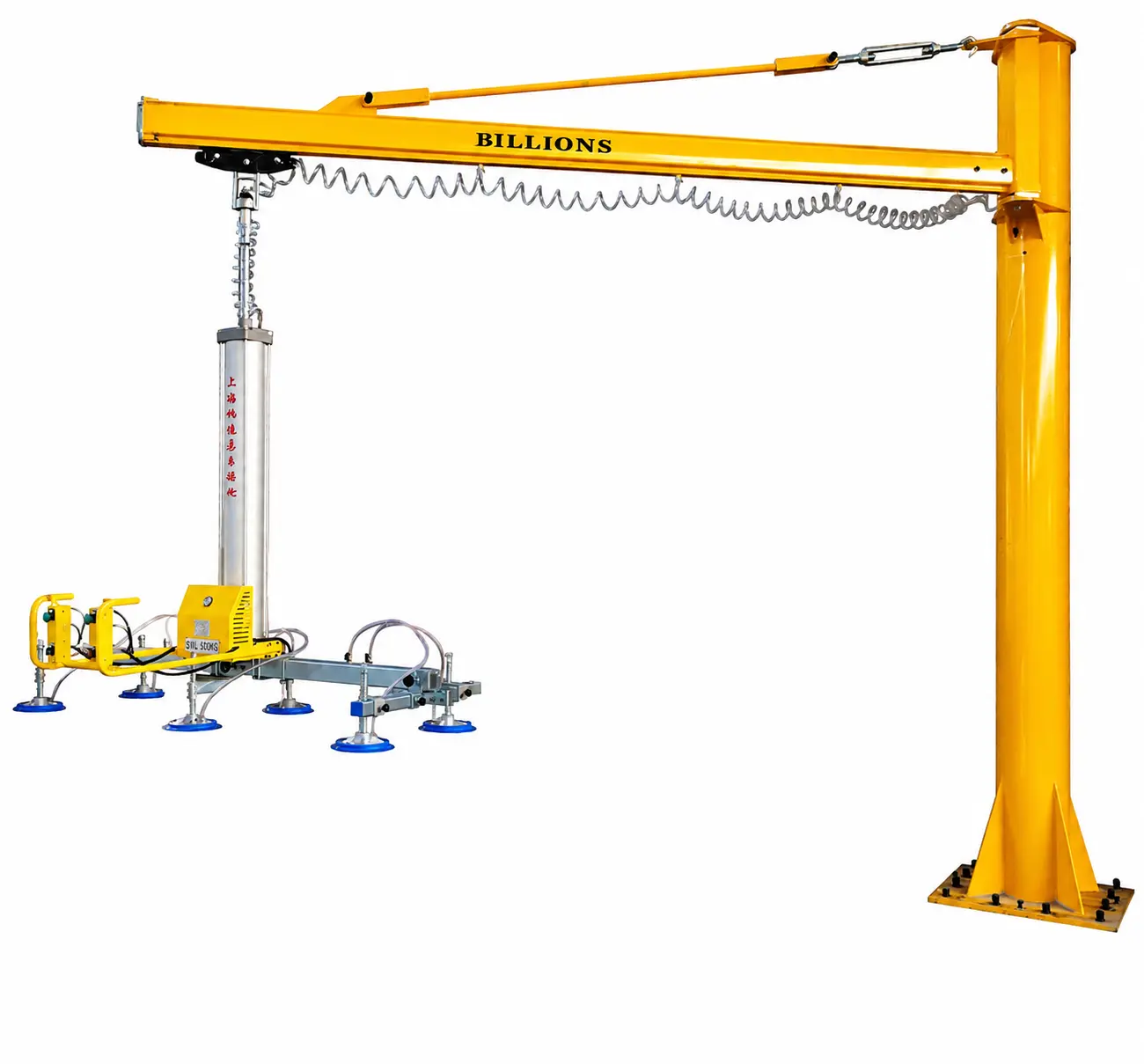

BILLIONS LIFTER® Pneumatic Sheet Lifter
BILLIONS LIFTER® Pneumatic Sheet Lifter for Laser Cutting Machine Loading
The BILLIONS LIFTER® Pneumatic Sheet Lifter is purpose-engineered for demanding laser cutting machine loading tasks. This entirely compressed air driven system utilizes a powerful cylinder lifting mechanism to handle heavy sheets weighing 300 - 500 kg with smooth, precise control. As a premier pneumatic lifting equipment solution, it operates completely free of electricity, delivering intrinsic explosion-proof safety. It stands as the ultimate cylinder lifting vacuum lifter for seamless integration into any metal fabrication laser cutting line.
300-500 kg
Sheet load range
Air Driven
No electricity required
6 Cups
Vacuum suction layout
Custom
Sheet size configuration

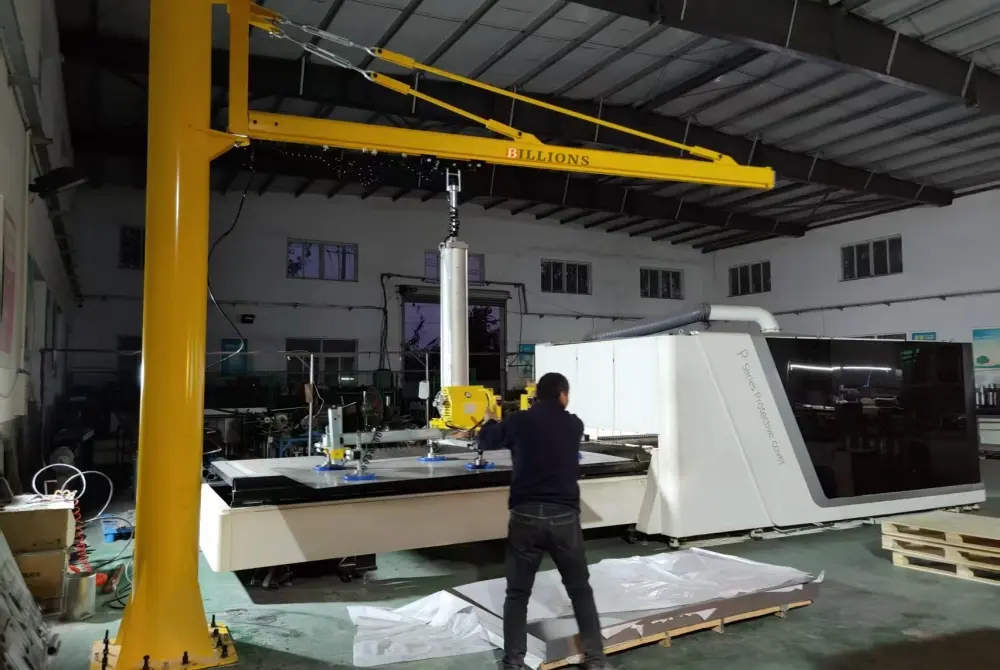

Compressed Air Driven. Safe. Efficient.
Pneumatic sheet lifting equipment for heavy metal sheet loading and laser cutting feeding lines.
Application Scenarios

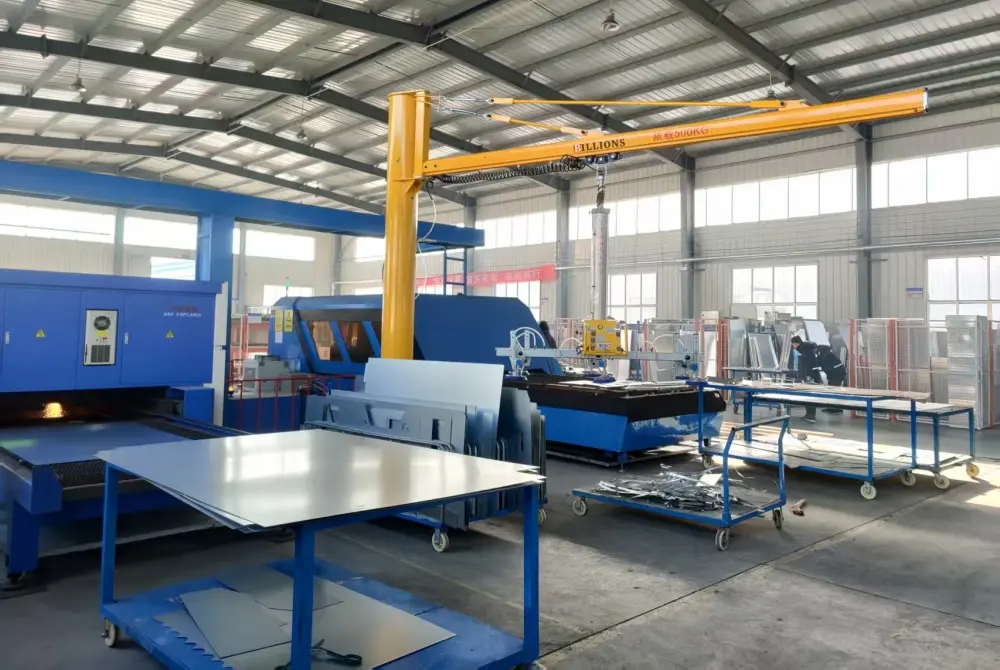

Pneumatic Sheet Handling for Laser Cutting Lines
BILLIONS LIFTER® pneumatic sheet lifter is designed for metal sheet loading and unloading, stainless steel vacuum handling, carbon steel automatic vacuum lifting, and pneumatic vacuum suction cup gripping in demanding fabrication workshops.
Stainless Steel Vacuum Handling
Stable vacuum gripping for stainless steel sheets, helping reduce surface damage during transfer, positioning and laser cutting line loading.
Carbon Steel Automatic Vacuum Lifting
Designed for carbon steel sheet loading with strong suction cup gripping and smooth cylinder lifting control for heavy-duty production cycles.

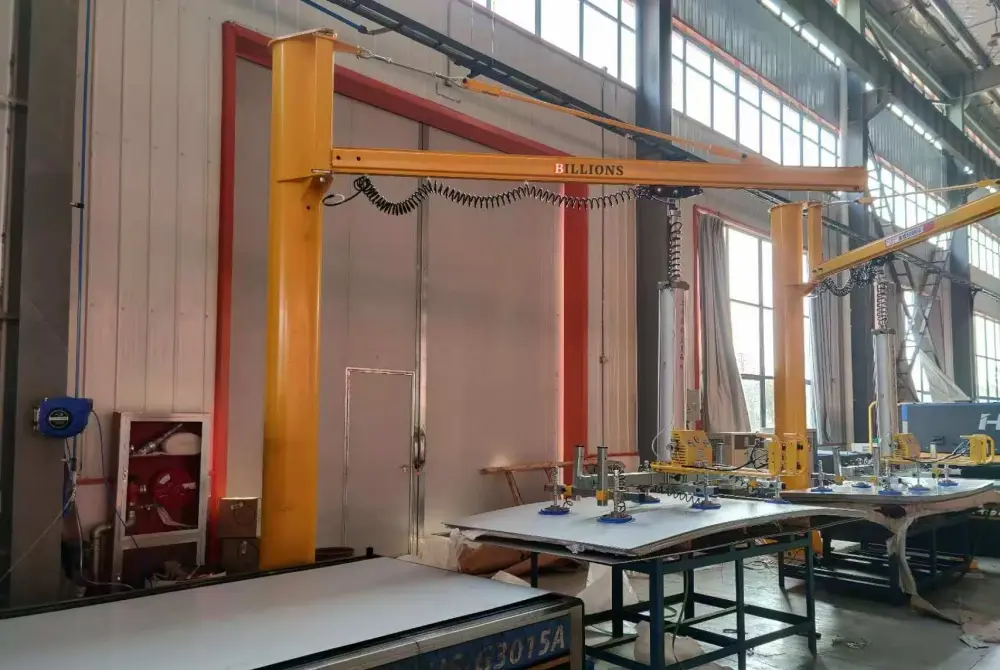

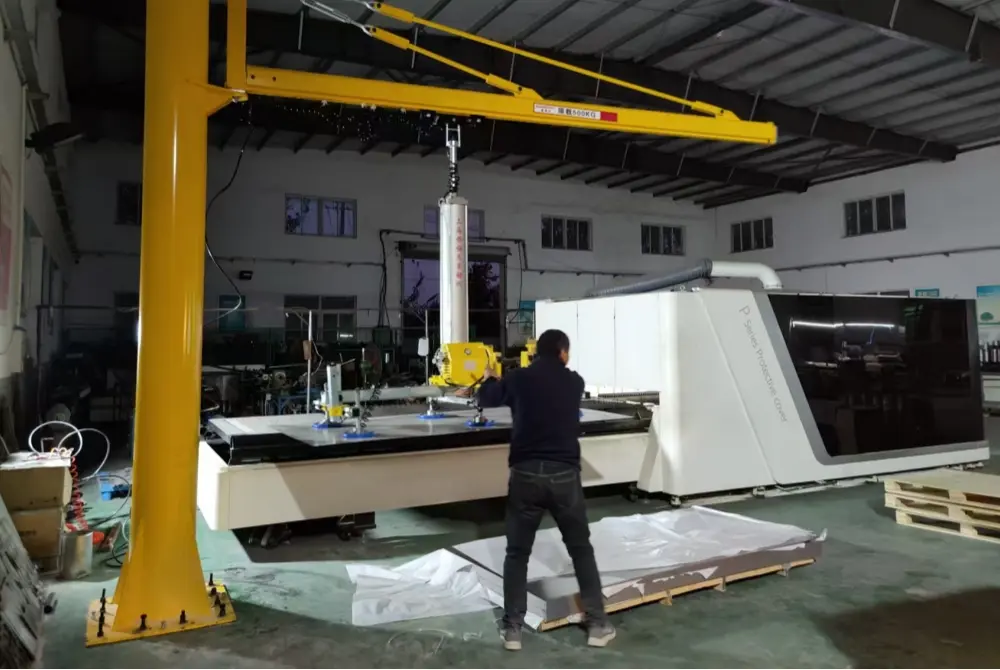

Pneumatic Vacuum Suction Cup Gripping
Six suction cups provide stable contact with sheet surfaces, while the compressed air system generates reliable vacuum without electrical components.
Product Specifications
Pneumatic Sheet Lifter Specifications
Click to expand the standard model specifications. BILLIONS LIFTER® can provide customized frame size, suction cup layout and sheet handling solutions according to your workpiece size.
View Full Product Specifications Load capacity, customized size, suction cup diameter, suction cup number, control mode and compressed air power system.
| Model | TB-VBS-300(AIR) | TB-VBS-500(AIR) |
|---|---|---|
| (kg) Load | 300 kgApprox. 661 lb | 500 kgApprox. 1,102 lb |
| Size (mm) | Customized according to workpiece sizeCustom frame size based on sheet length, width and loading area | |
| Sucker Diameter (mm) | 230 mmApprox. 9.1 in | 230 mmApprox. 9.1 in |
| Sucker Number | 66 suction cups | 66 suction cups |
| Control Mode | ManualManual control for suction, release and sheet positioning | |
| Power System | Compressed AirPneumatic system / electricity-free operation | |
Video Demonstration
See BILLIONS Pneumatic Sheet Lifter in Action
Watch how the BILLIONS LIFTER® pneumatic sheet lifter supports laser cutting machine loading, stainless steel vacuum handling, carbon steel lifting and sheet loading operations.
Laser Cutting Machine Loading
Pneumatic sheet lifter for metal sheet loading and unloading in laser cutting feeding systems.
Factory Direct & Customization
Contact BILLIONS LIFTER®: Source Factory for Pneumatic Sheet Lifting Solutions
BILLIONS LIFTER® is a direct manufacturer and source factory of pneumatic sheet lifting equipment. We provide compressed-air-driven vacuum lifters, cylinder lifting vacuum lifters and customized sheet handling systems for laser cutting machine loading and metal fabrication production lines.
Tell us your sheet material, sheet size, weight, loading height, air supply condition and laser cutting workflow. Our engineering team will recommend a suitable pneumatic sheet lifter configuration for your production site.
FAQ
Frequently Asked Questions
Real questions buyers usually ask before purchasing pneumatic sheet lifters, cylinder lifting vacuum lifters and compressed-air-driven sheet handling equipment.
Q1: What is a pneumatic sheet lifter, and does it use a cylinder to lift?
A pneumatic sheet lifter is an industrial material handling device that generates vacuum suction using compressed air and executes the lifting motion through a cylinder lifting mechanism. For instance, the BILLIONS LIFTER® pneumatic sheet lifter directly connects to your factory's air supply. Its robust cylinder smoothly raises sheets weighing between 300 kg and 500 kg, making it specifically effective for laser cutting machine loading.
Q2: Can a pneumatic vacuum lifter handle stainless steel sheets for laser cutting?
Absolutely. BILLIONS LIFTER® compressed-air-driven vacuum lifters are equipped with wear-resistant, high-temperature suction cups and provide strong, consistent cylinder lifting force. They are purpose-built for handling stainless steel, carbon steel, and aluminum in laser cutting loading operations. Both the 300kg and 500kg pneumatic sheet lifters guarantee a secure, leak-free vacuum hold.
Q3: What advantages does a BILLIONS LIFTER® cylinder-operated vacuum lifter have over an electric one?
A BILLIONS LIFTER® pneumatic sheet lifter runs purely on compressed air with a cylinder lift mechanism, containing zero electrical components. This makes it intrinsically spark-free, significantly safer in dusty and high-vibration laser cutting environments, and remarkably low-maintenance. It continuously delivers its full 300-500 kg lifting capacity without the risk of electrical failure.
Q4: How do I choose the right pneumatic sheet lifting device for a laser cutting machine?
Key selection criteria include load capacity (300-500 kg), cylinder lifting stroke, suction cup layout, and air consumption. Choosing a specialized brand like BILLIONS LIFTER® ensures your pneumatic lifting equipment is optimized for laser cutting loading. The system can be custom-configured to match your exact production cycle and sheet dimensions.
Technical Parameter
BILLIONS VACUUM LIFTER
Technical Specifications
Technical Specifications
| Model | TB-VBS-300(AIR) | TB-VBS-500(AIR) |
|---|---|---|
| (kg) Load | 300 | 500 |
| Size (mm) | Customized according to workpiece size | |
| Sucker Diameter (mm) | 230 | 230 |
| Sucker Number | 6 | 6 |
| Control Mode | Manual | |
| Power System | Compressed Air | |
