VACUUM BOARD LIFTER BILLIONS LIFTER®
Struggling with heavy panel handling? The BILLIONS LIFTER® vacuum lifter is expertly designed for wood panels, MDF boards, particle boards, plywood, OSB, solid wood panels, and smooth stone slabs. Allow a single operator to lift, move, and release heavy sheets effortlessly, boosting factory productivity and reducing workplace injuries.
Products Description
Technical Parameter
Products Description
Board Vacuum Lifter & Panel Handling Equipment
Operator
Single-Person Handling
Materials
Wood / MDF / Stone
Applications
CNC / Furniture / Doors
Handling
Ergonomic & Damage-Free
BILLIONS LIFTER® Board Vacuum Tube Lifter: Ergonomic Panel Handling Solutions
Struggling with heavy panel handling? The BILLIONS LIFTER® vacuum tube lifter is designed for wood panels, MDF boards, particle boards, plywood, OSB, solid wood panels, and smooth stone slabs. A single operator can lift, move, and release heavy sheets effortlessly, helping boost factory productivity while reducing workplace injuries and material edge damage.
Overcoming Heavy Panel Handling Challenges
Traditional manual handling often requires 2-3 workers, consumes significant physical effort, and increases the risk of back strains. It can also cause costly edge damage to valuable materials. BILLIONS LIFTER® Vacuum Tube Lifter for Wood provides a safer, faster, and more ergonomic panel handling equipment solution for modern factories.
MDF & Particle Board
High-flow vacuum compensation supports breathable wood boards such as MDF and particle board for stable, safe lifting.

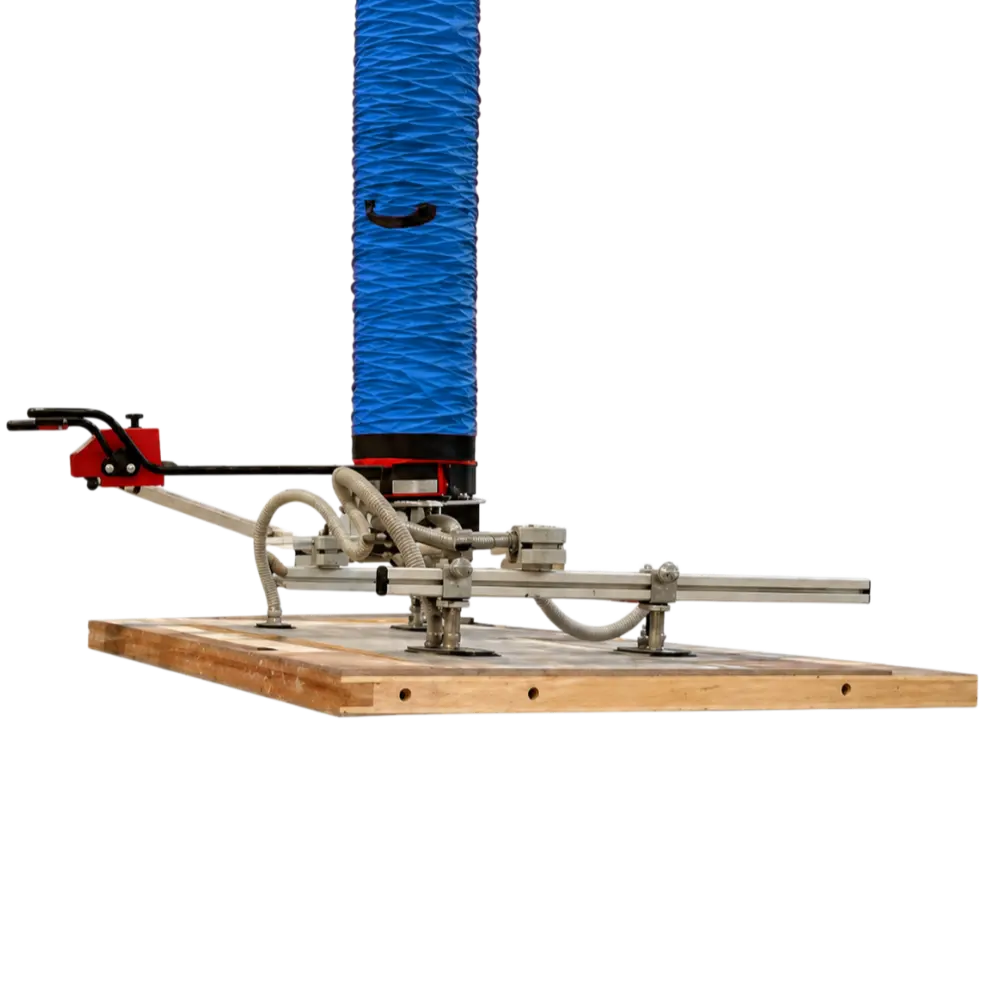

Plywood & Solid Wood Panels
Ideal for moving plywood, solid wood panels, and large boards between cutting, pressing, sanding, and assembly stations.

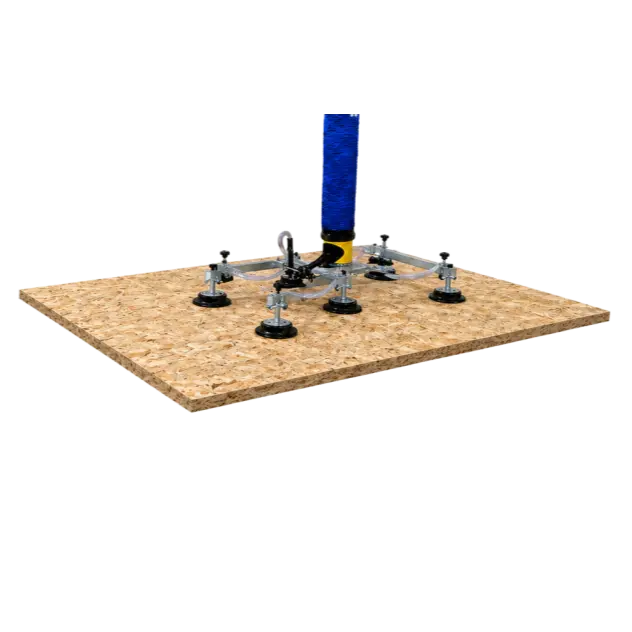

OSB & Wood Door Panels
Designed for smooth handling of OSB boards, wood doors, veneers, and large flat panels without manual strain.

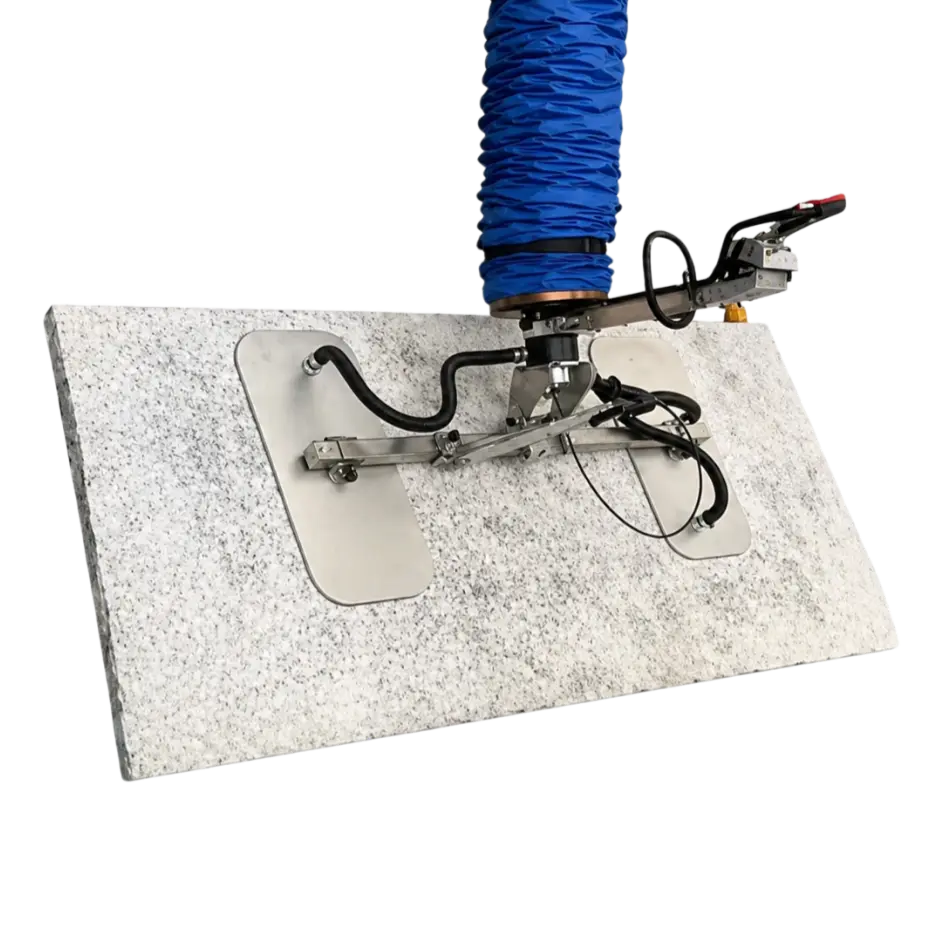

Stone Slabs & Countertops
Also suitable for smooth-surfaced stone slabs, sintered stone, marble, and custom countertops requiring damage-free handling.
Proven Applications Across Demanding Industries
BILLIONS LIFTER® vacuum lifting systems integrate into woodworking, furniture, door manufacturing, stone processing, and panel production workflows to improve safety, speed, and material protection.

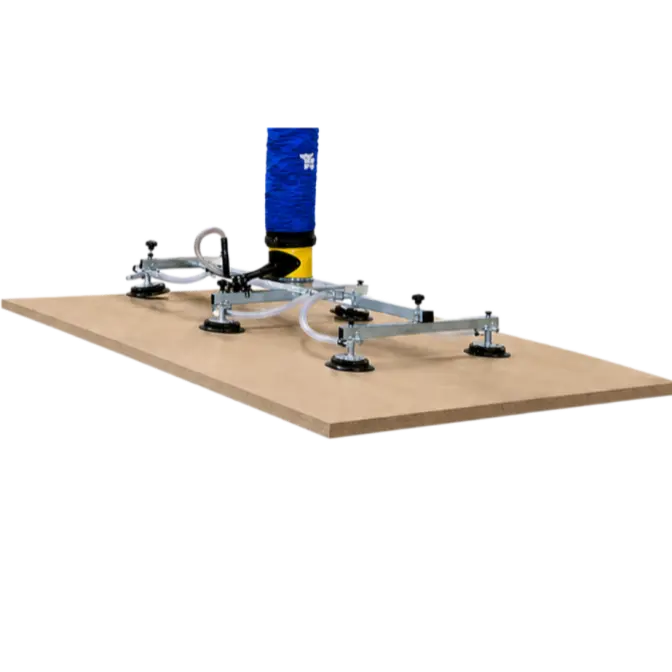

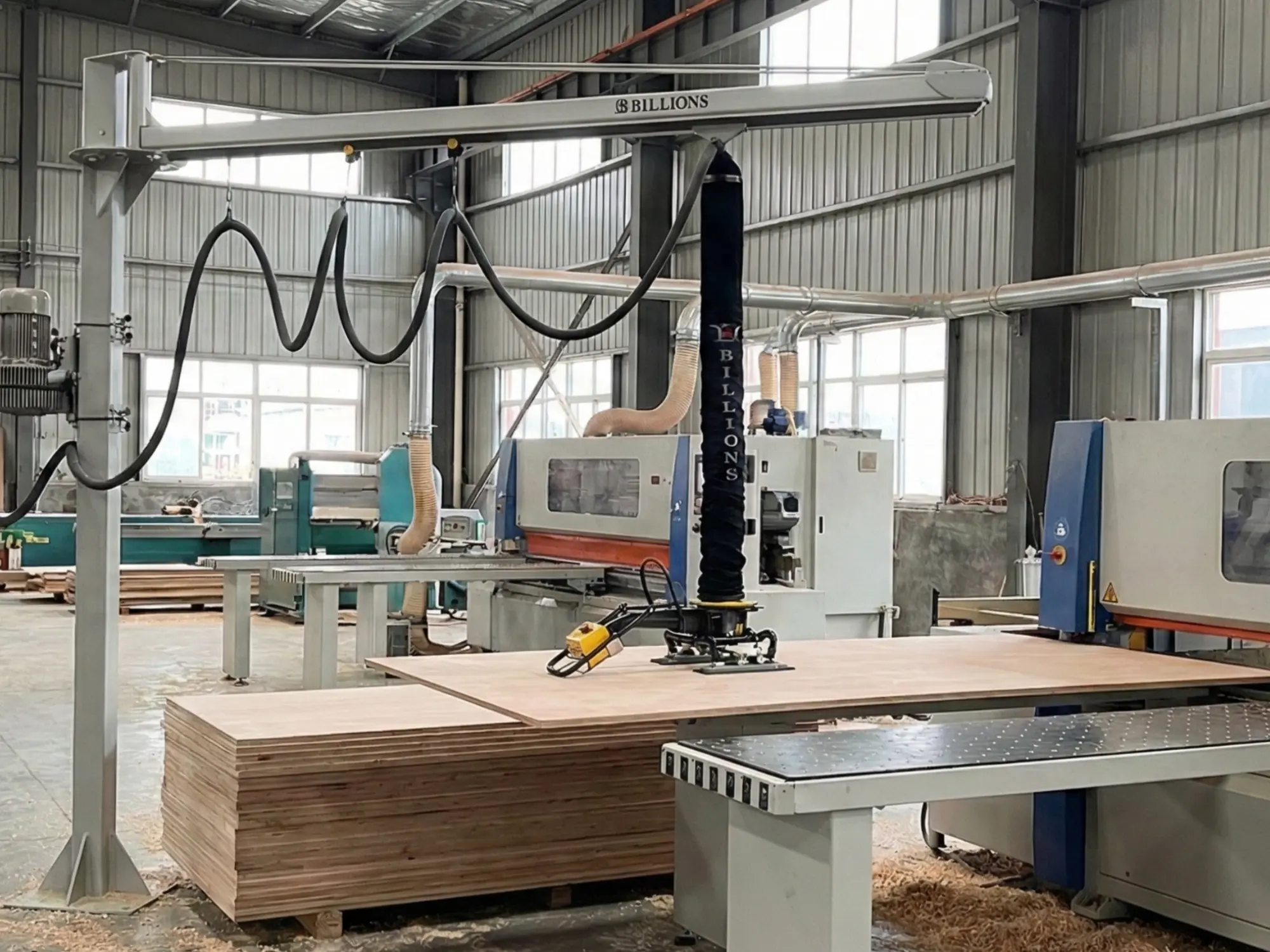

CNC Router Loading Vacuum Lifter
Eliminate the bottleneck of manually loading large MDF or particle boards onto CNC machine tables. Keep CNC routers running efficiently and maximize production output with single-operator panel handling.

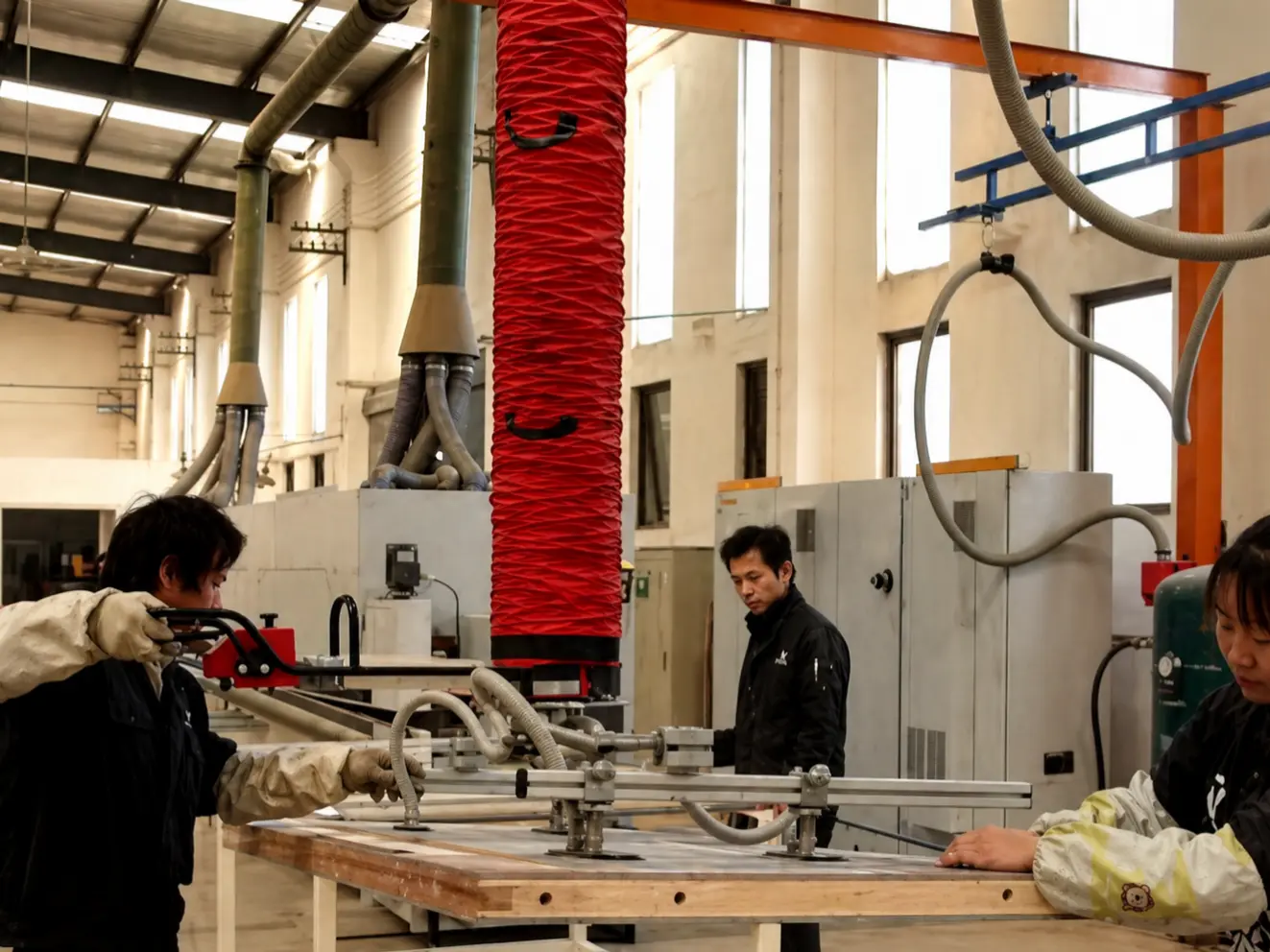

Bespoke Furniture Panel Handler
Provide seamless material flow for panel saws, edge banding machines, and cabinetry production lines. A single operator can move plywood, MDF, and furniture panels quickly and safely.

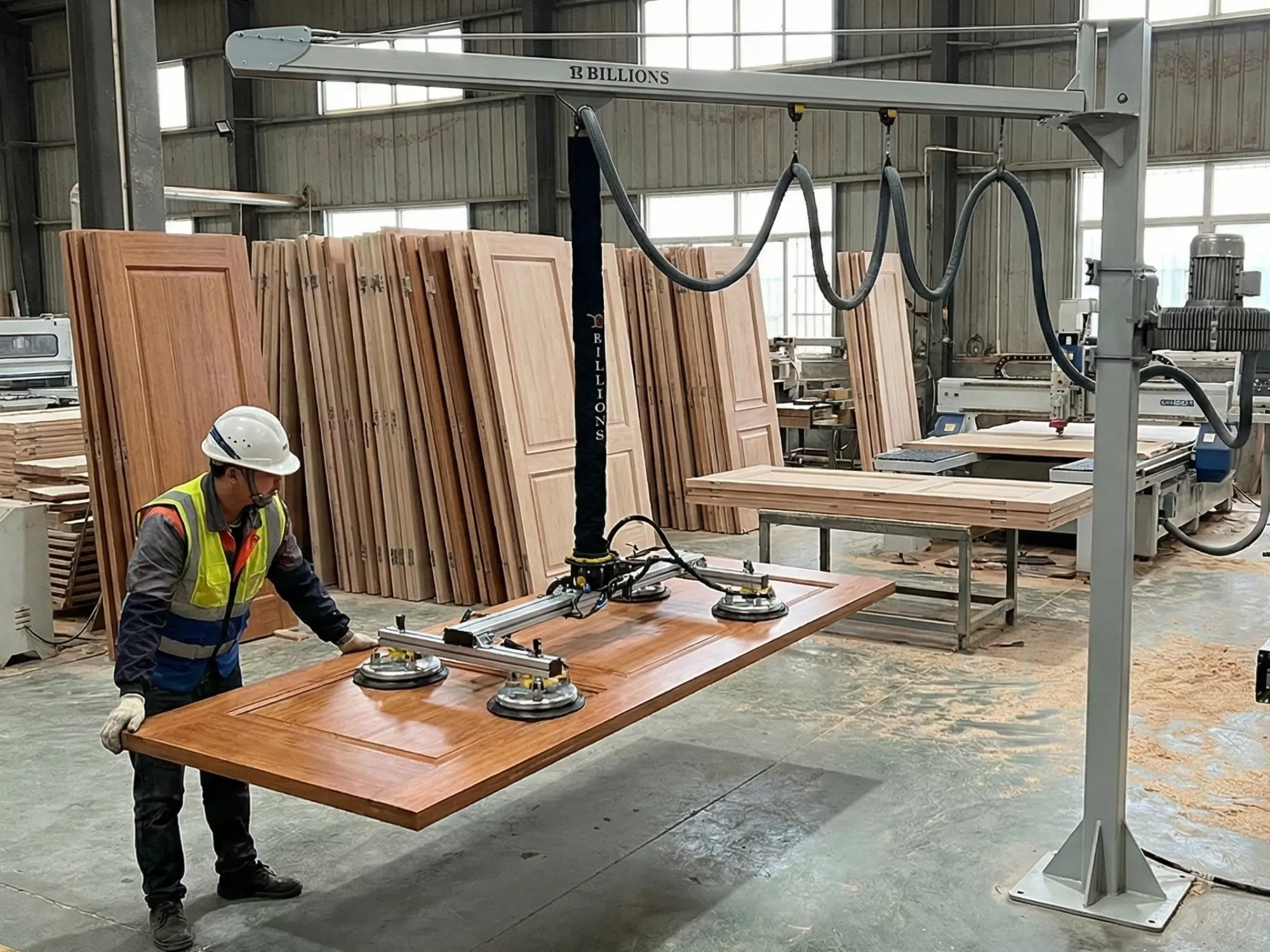

Ergonomic Wood Door Lifter
Smoothly handle delicate veneers, solid wood doors, and heavy door panels into hot presses or assembly lines, helping ensure mark-free and damage-free operation.

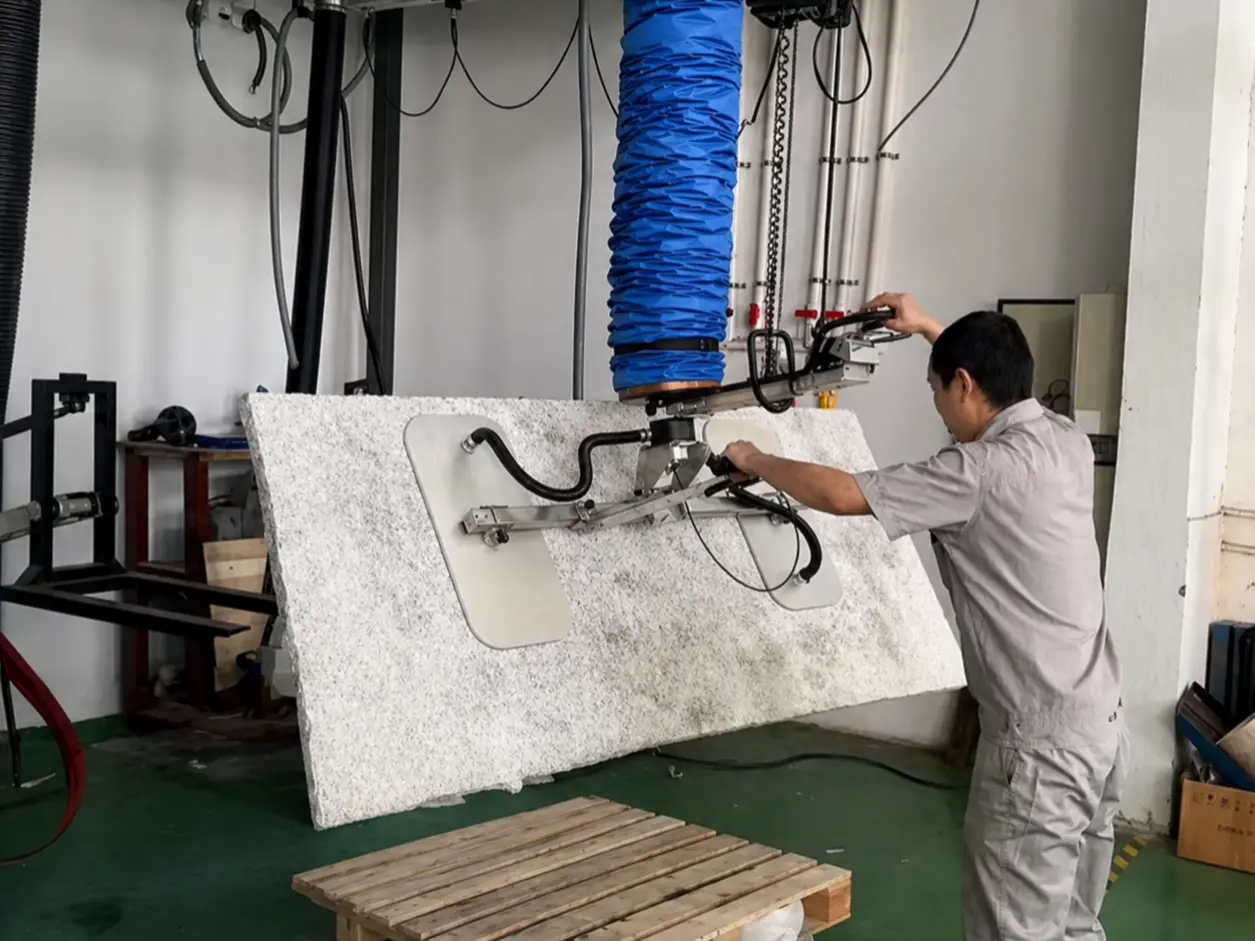

Stone Slab Vacuum Handling
Deliver stable vacuum grip for lifting, maneuvering, and palletizing smooth stone slabs, marble, artificial stone, sintered stone, and custom countertops.
BILLIONS LIFTER® provides customized lifting solutions tailored to your specific site requirements.

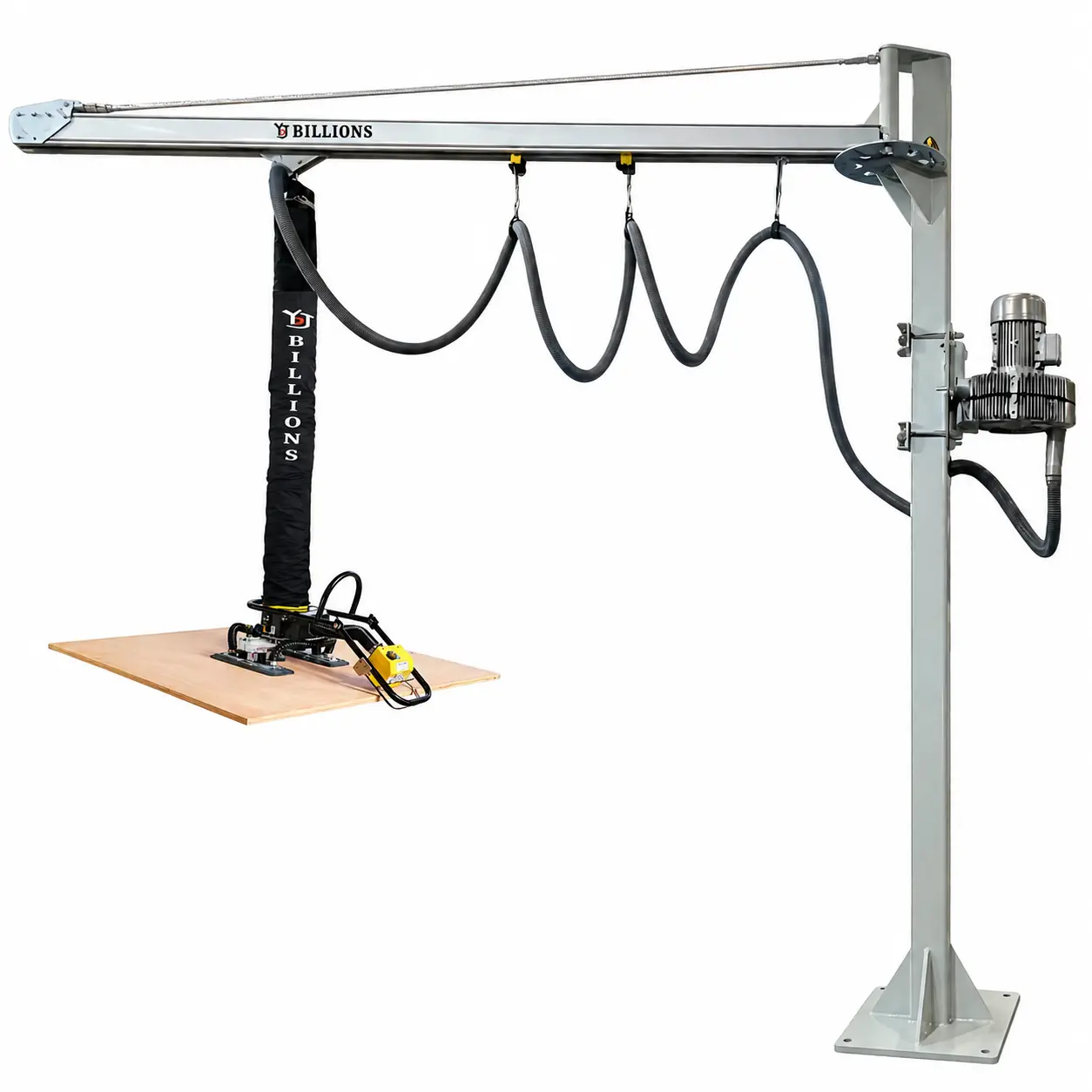

1. Pillar-Mounted Jib Crane
2. Mobile Pillar Jib Crane
3. Wall-Mounted Jib Crane
4. KBK Light Rail System
BILLIONS LIFTER® Offers a Wide Range of Handle Options
We provide the most comfortable control methods tailored to your specific operating habits and working conditions.
One-Handed Easy Control
Featuring a fully integrated design for lifting, suction, and release, this handle is ideal for rapid, high-frequency light-duty handling tasks.
Two-Handed Robust Control
Designed for heavy-duty loads or tasks requiring high-precision positioning, providing superior stability and a sense of total control.
Extended & Adjustable Handles
Easily handle high-level palletizing or deep-reach picking. It expands the operational radius while ensuring maximum operator comfort.
Intelligent & Ergonomic Control Features
It’s more than just material handling—it’s an efficient, safe, and intelligent experience.
Stepless High-Speed Lifting
With a response speed of 0-1m/s (197 ft/min), it allows for intuitive control of the handling tempo, significantly boosting production line efficiency.
Precise Hovering Under No-Load
After releasing the handle, the suction head automatically stabilizes and hovers at any height, ensuring the next pick-up is quick and convenient.
Secure Hovering Under Load
Even when suctioning heavy objects, the system achieves precise hovering and fine-tuning, ensuring the placement position is accurate to the millimeter.
TECHNICAL SPECIFICATIONS - BILLIONS LIFTER®
[ Click for Details + ]
| MODEL | LOAD (KG / LBS) | SUCKER (MM / IN) | LIFT SPEED (M/S / FT/MIN) | VACUUM PUMP (KW / HP) |
|---|---|---|---|---|
| TB-VAT-100 | 30 kg / 66 lbs | 100 mm / 3.9" | Approx. 1 m/s | 2.2kw / 3.0 hp |
| TB-VAT-120 | 50 kg / 110 lbs | 120 mm / 4.7" | Approx. 1 m/s | 3.5kw / 4.7 hp |
| TB-VAT-140 | 60 kg / 132 lbs | 140 mm / 5.5" | Approx. 1 m/s | 3.5kw / 4.7 hp |
| TB-VAT-160 | 70 kg / 154 lbs | 160 mm / 6.3" | Approx. 1 m/s | 4.5kw / 6.0 hp |
| TB-VAT-180 | 90 kg / 198 lbs | 180 mm / 7.1" | Approx. 1 m/s | 4.5kw / 6.0 hp |
| TB-VAT-200 | 120 kg / 265 lbs | 200 mm / 7.9" | Approx. 1 m/s | 4.5kw / 6.0 hp |
| TB-VAT-230 | 150 kg / 330 lbs | 230 mm / 9.1" | Approx. 1 m/s | 5.5kw / 7.4 hp |
Frequently Asked Questions About Panel Vacuum Tube Lifters
Q1: Can the vacuum lifter handle porous or rough-surfaced wood boards like particle board?
Absolutely. For porous materials such as particle board and MDF, BILLIONS LIFTER® can equip the system with a high-flow vacuum blower. The built-in vacuum compensation mechanism helps make up for vacuum loss, ensuring a secure and stable grip on breathable wood boards.
Q2: What happens if there is a sudden power failure? Will the board drop?
No. Safety is a core design principle. The equipment comes standard with a safety non-return valve and pressure-retaining mechanism. In the event of a power outage, the system helps lock the vacuum so the suspended load can lower safely and slowly to the ground.
Q3: Are the suction pads adjustable for different panel sizes?
Yes. BILLIONS LIFTER® offers customized panel handling solutions. Whether you handle long narrow planks or large square panels, the suction pad positions and crossbeam structure can be adjusted or custom-built to match your board dimensions and weight distribution.
Q4: Is the control handle physically demanding to operate?
Operation is designed to be effortless. The BILLIONS LIFTER® control handle is ergonomically optimized and positioned between the suction pad and lifting tube, allowing the operator to control lifting, lowering, and release with natural hand movements.
Q5: Is the lifting tube prone to tearing, and does it require complex maintenance?
The lifting tube is made from high-strength, wear-resistant materials for high-frequency industrial use. Daily maintenance is straightforward: regularly clean dust from the vacuum filter, especially in woodworking shops, and periodically check vacuum hoses for airtight sealing.
