Vacuum Lifter for Sheet Metal - Revolutionary Lifting Technology

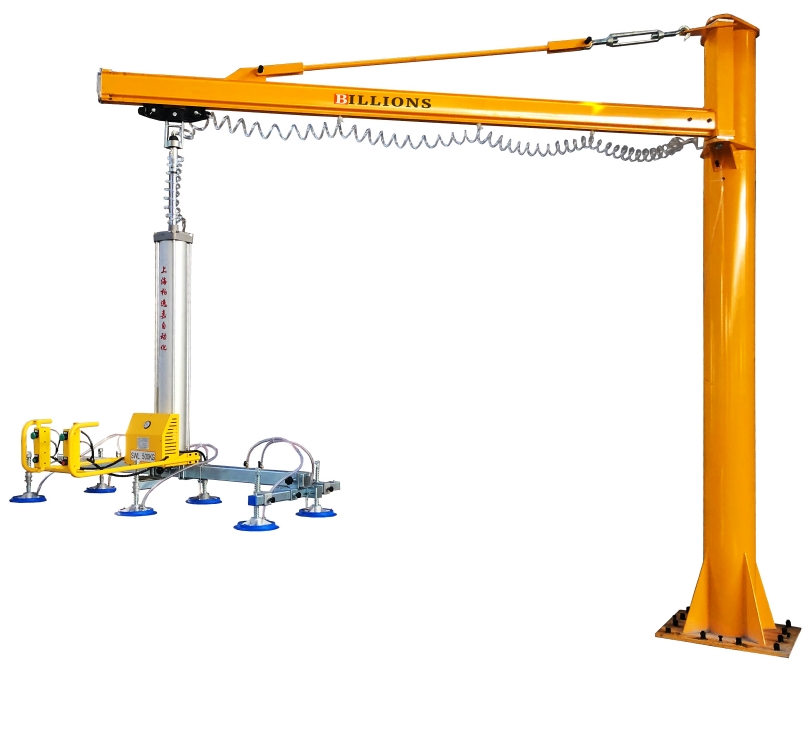

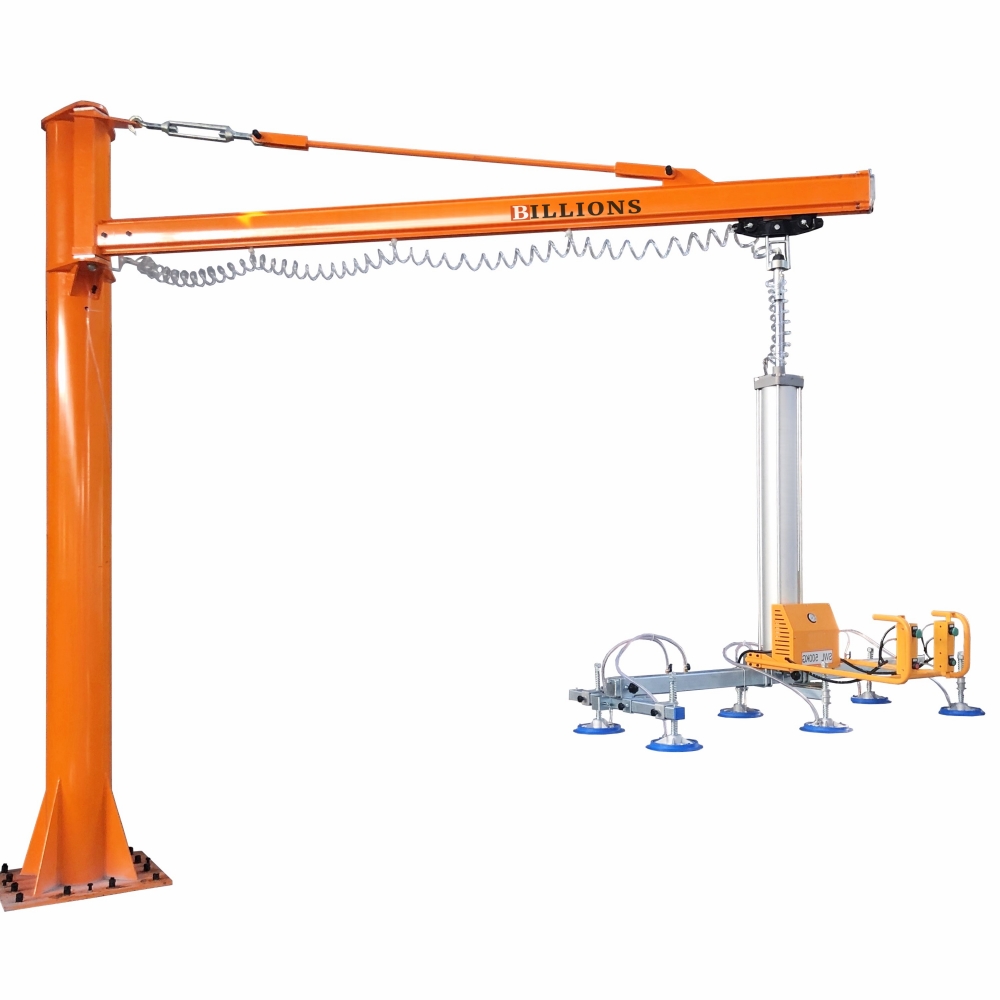

Vacuum Lifter for Sheet Metal
heet metal handling. It operates without the need for a power cord or battery. By simply connecting to an air compressor, the system utilizes 0.6–0.8 MPa compressed air as its power source. The built-in vacuum generator creates negative pressure to securely grip sheet metal, while the cylinder’s lifting and lowering motion—assisted by a jib crane—completes the handling process.
Key Features of the Metal Sheet Vacuum Lifter (AIR)
- Lifting Capacity: <500 kg
- Power System: Compressed Air
- Operating Hours: Continuous Operation >12 hours
- Lifts Flat, Airtight Sheets
- Optional Features: Wireless Remote Control
500kg
Max Lifting Capacity
>24h
Continuous Operation
Pneumatic Lift
Efficiency
BILLIONS Helps You Transport Sheets More Easily
Technical Parameter
BILLIONS VACUUM LIFTER
Technical Specifications
Technical Specifications
| Model | TB-VBS-300(AIR) | TB-VBS-500(AIR) |
|---|---|---|
| (kg) Load | 300 | 500 |
| Size (mm) | Customized according to workpiece size | |
| Sucker Diameter (mm) | 230 | 230 |
| Sucker Number | 6 | 6 |
| Control Mode | Manual | |
| Power System | Compressed Air | |
