Products Description
Technical Parameter
Products Description
Heavy-Duty Tube Lifter

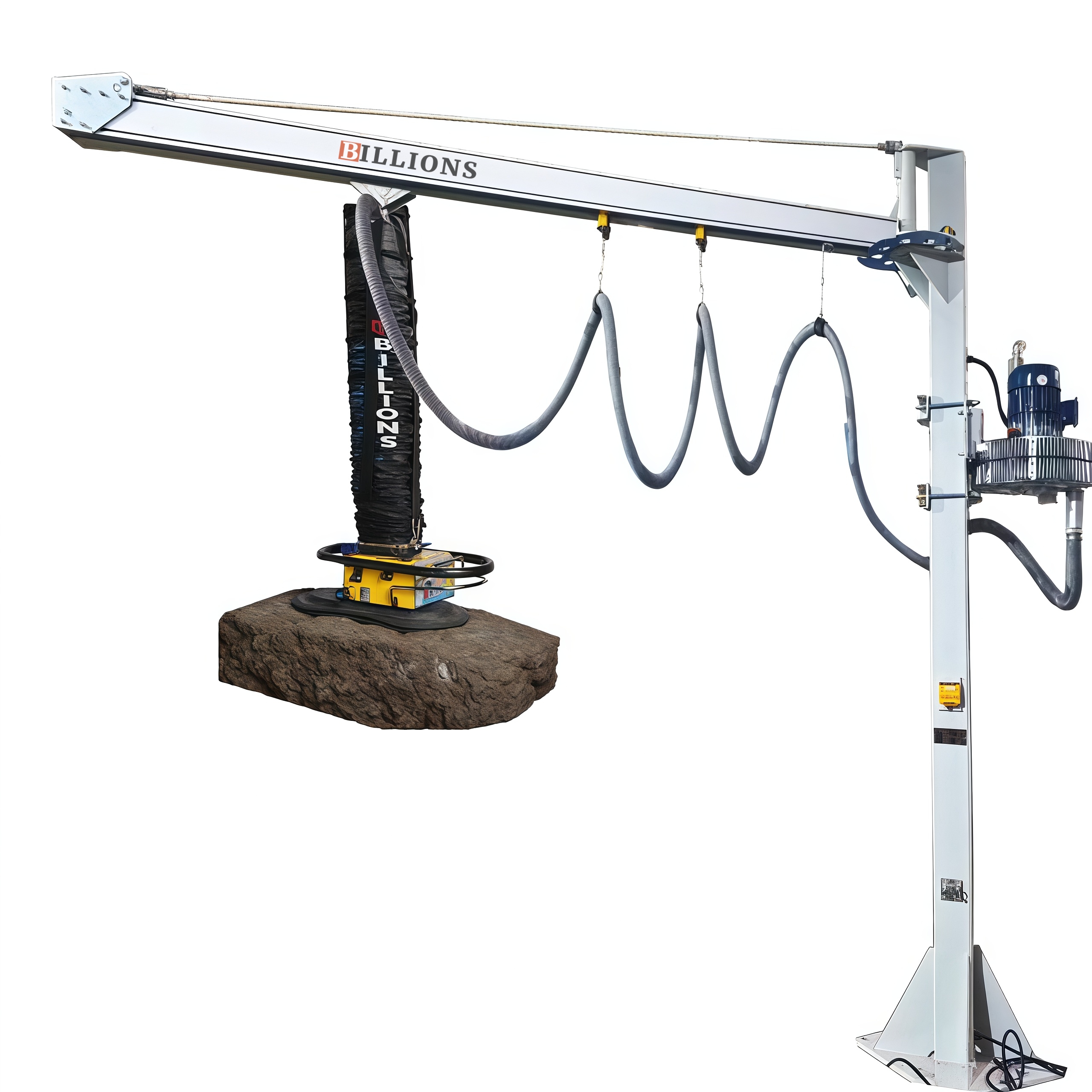

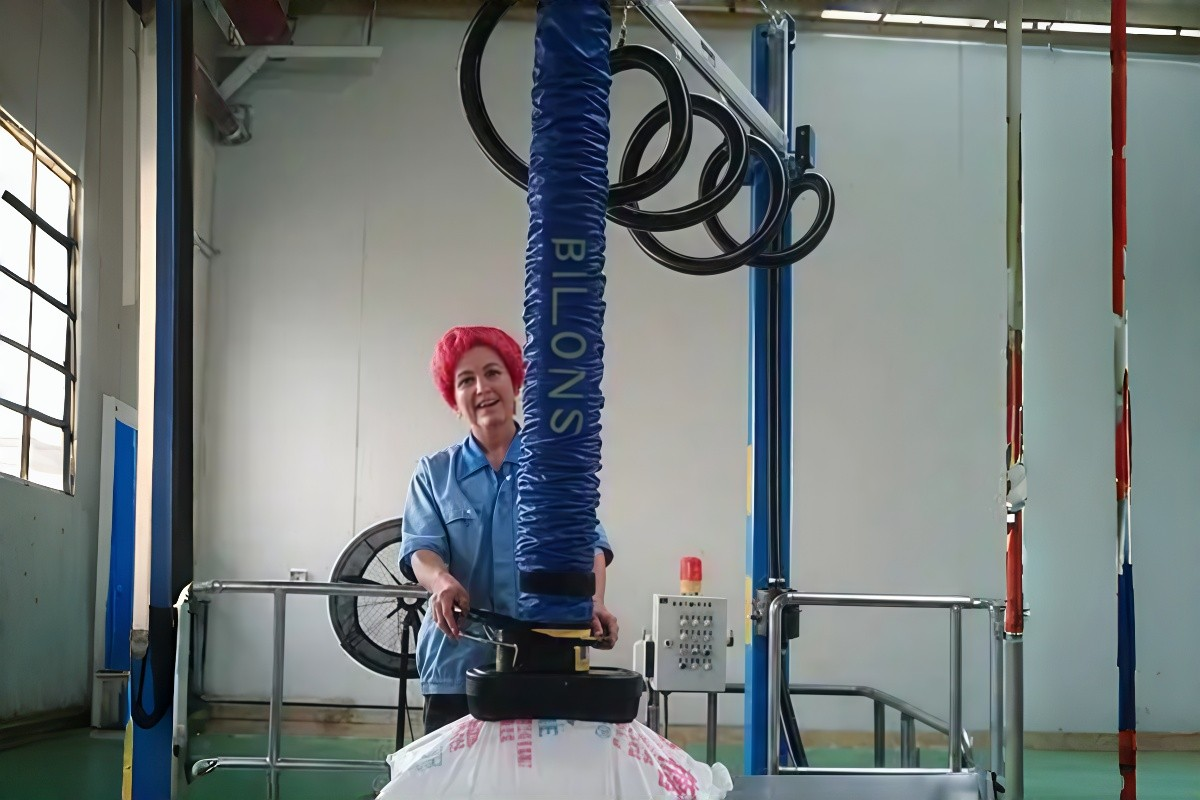

The BllllONS Heavy-Duty Tube Lifter is designed for fast, precise handling in logistics, warehouses, and packaging lines. This lifting system easily handles boxes, luggage, barrels, sheets, and food-grade items, improving efficiency and reducing labor.
What can we lift?
|
|
|||||
|

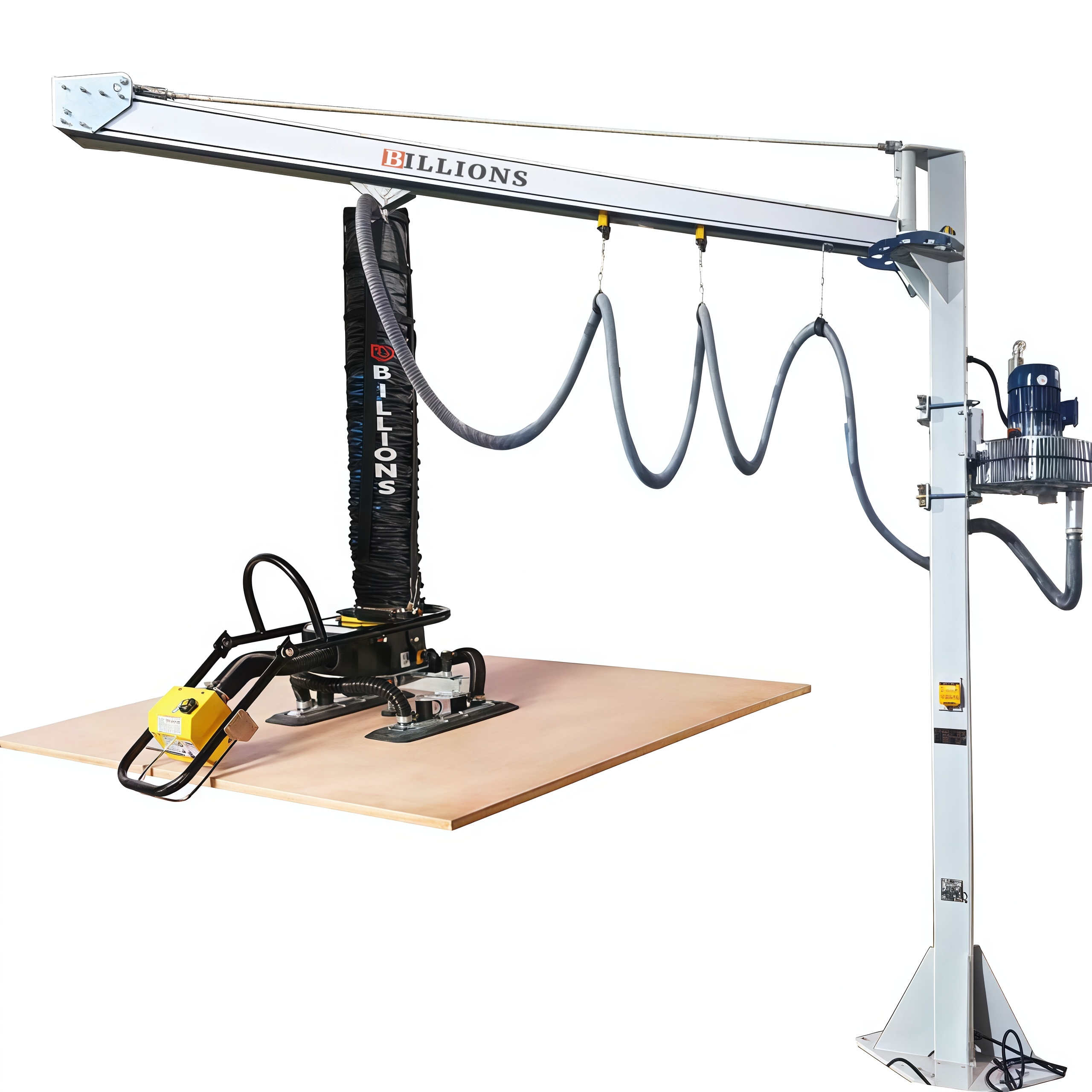

Sheet |

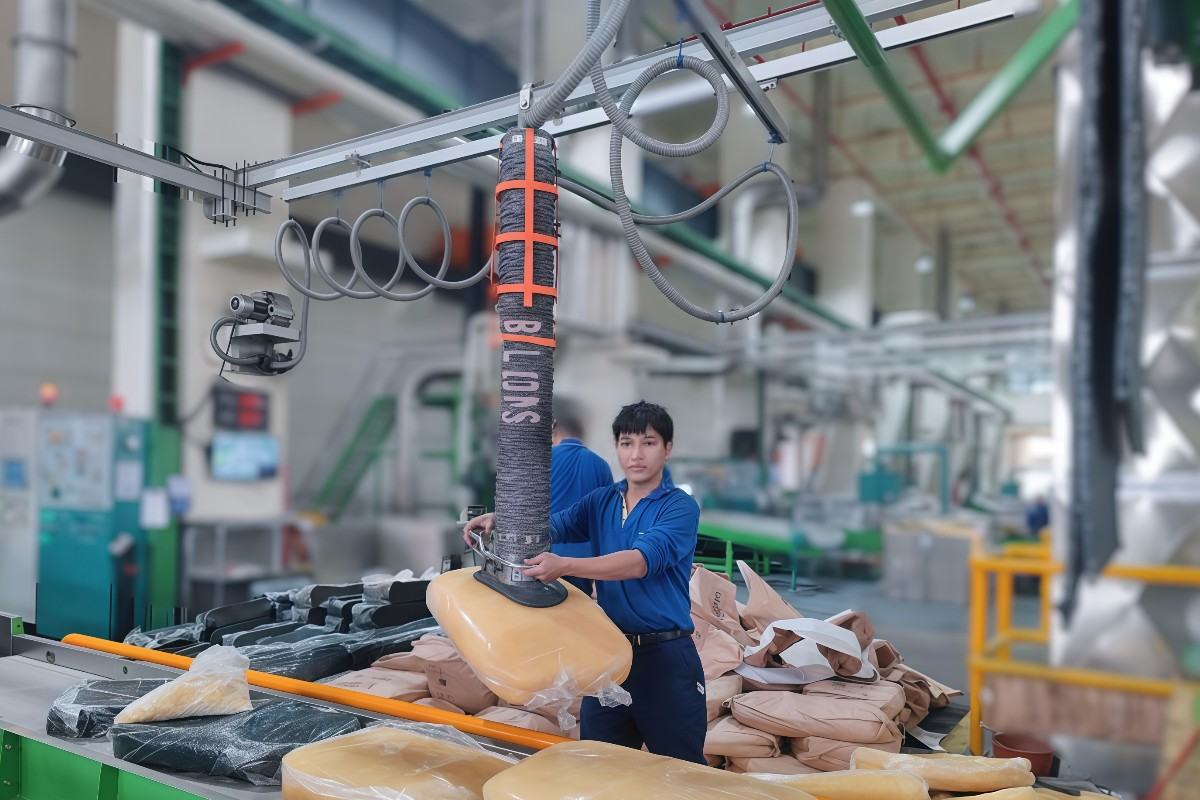

Bag |

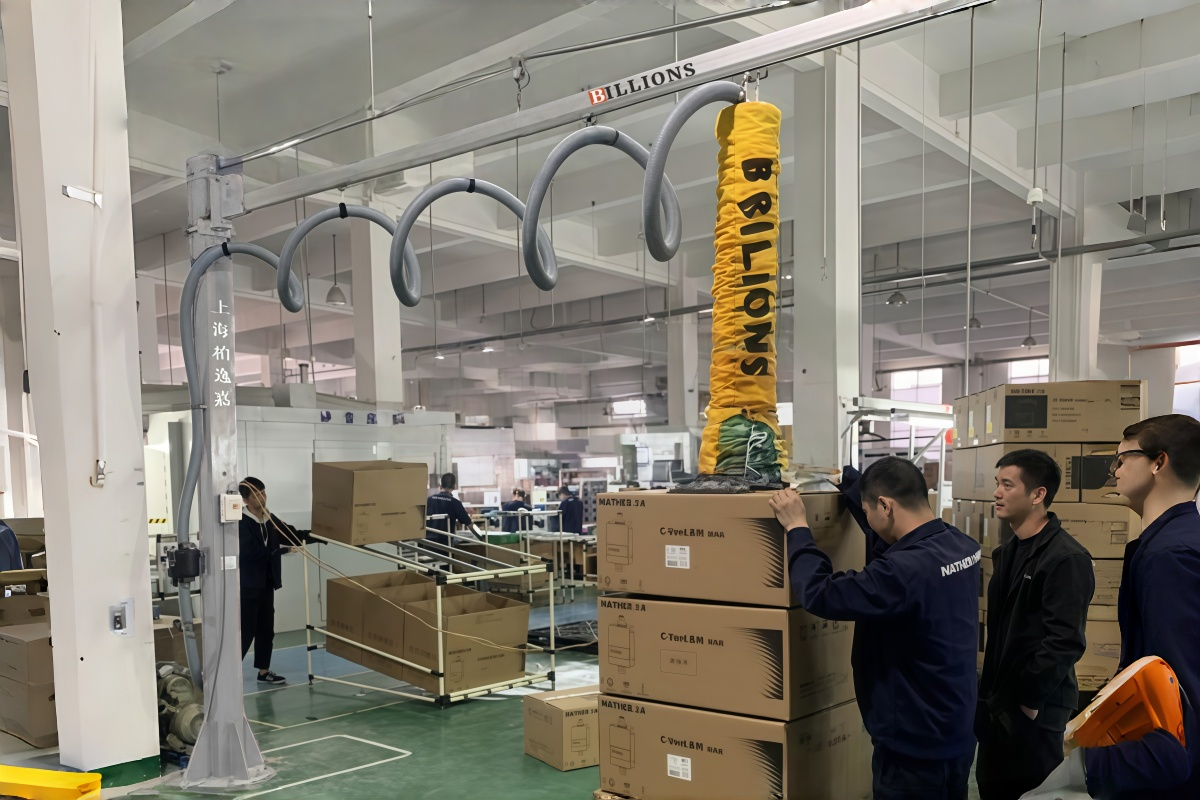

Box |
Food |

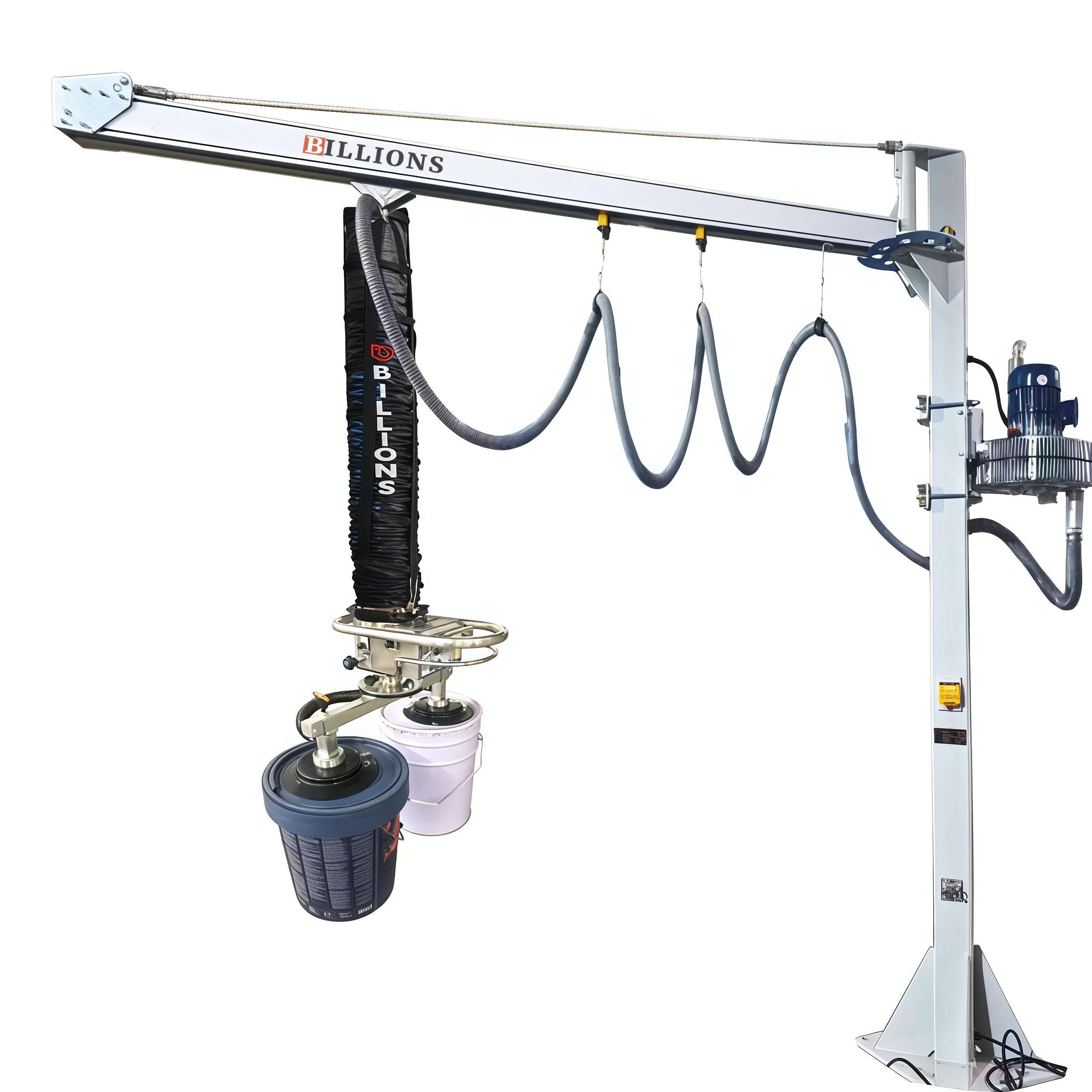

Bucket |
Customized |
| STRENGTHS OF BILLIONS FAST TUBE LIFTER | ||
| Lift heavy loads with just one hand: The Heavy-Duty Tube Lifter can lift up to 150 kg. | Efficiency: Rapid improvement, lightweight equipment, and high safety significantly improve your productivity and efficiency. | |
|
Simple operation: One handle can control all the movements of the equipment, and employees can learn to operate the equipment in a very short time. |
Wide adaptability: Whether cartons, bags, cans or drums - the integrated quick-release coupling and individually selectable vacuum cup sets mean that almost anything can be lifted with one device. |
|
|
Powerful functions: The device has a motor protection switch, a pressure holding function, a 360° horizontal rotation function, and a 90° tilt function. |

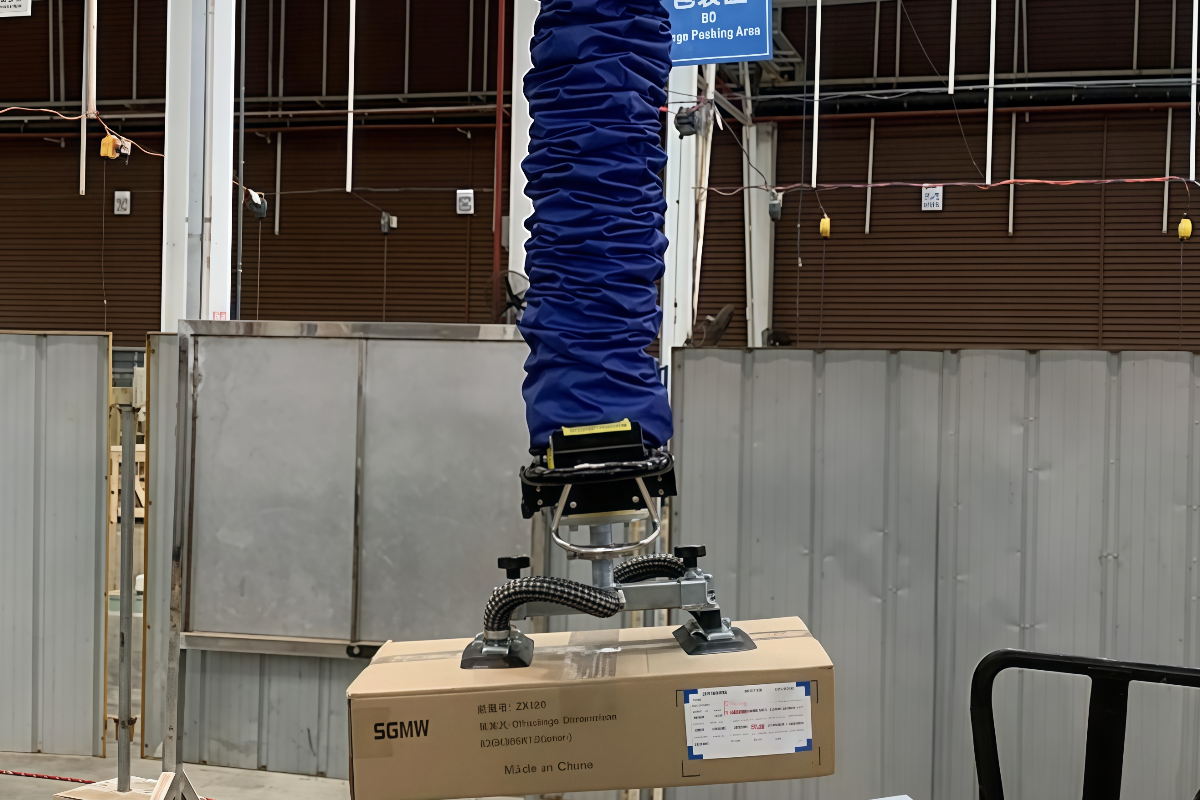

Ergonomic: The equipment has a no-load regulating valve, which allows the equipment to stay at any height you want, reducing the labor intensity of workers. |
|
|

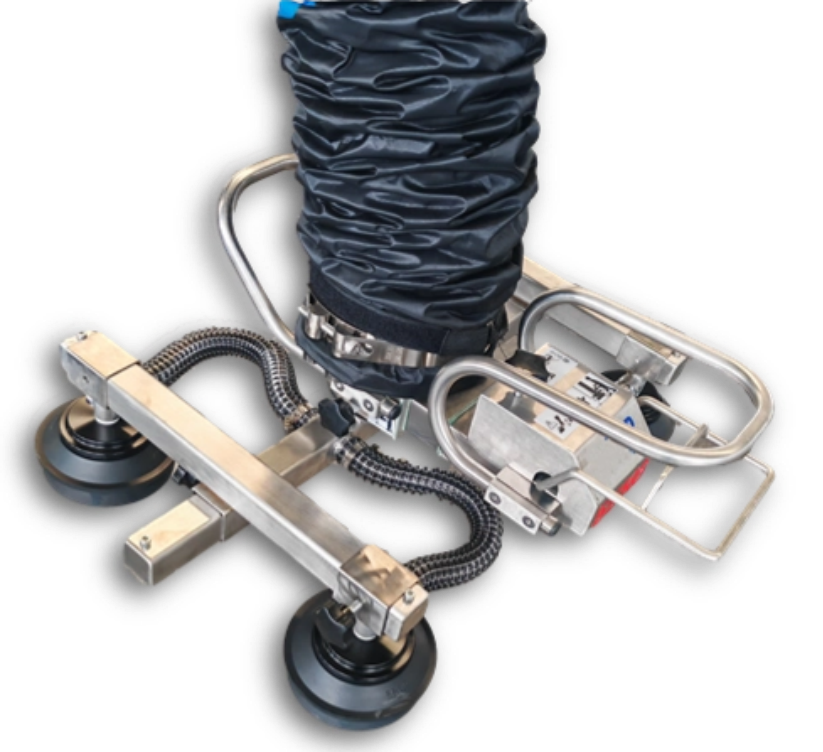

Modular design: You can use different suction cups to complete the handling according to different workpieces. Quick replacement of suction cup groups allows a set of equipment to meet completely different handling needs. |
||

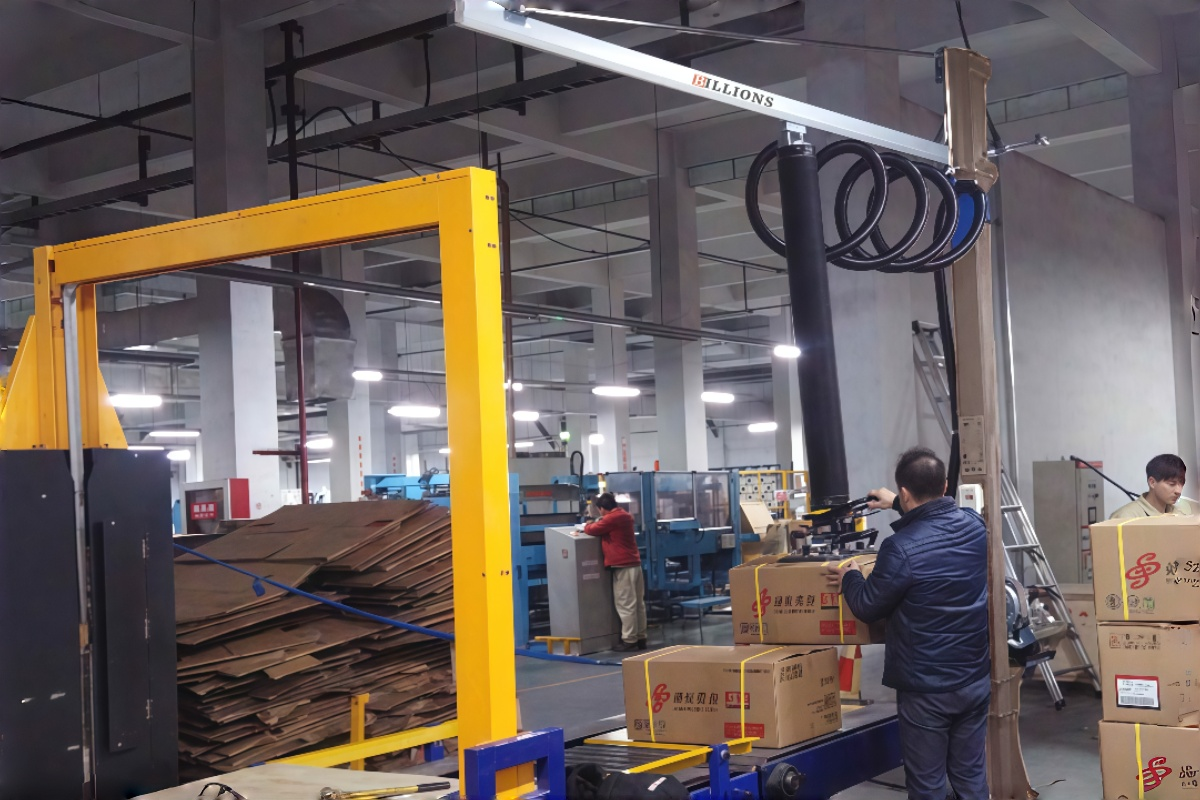

BILLIONS can help reduce the labor intensity of on-site workers
Customized lifting machinery tailored to your needs
BIIIIONS offer a variety of solutions for you to choose from. You can also provide your actual on-site conditions, and our BIILIONS engineers will specify the best solution for you
Fixed Column Cantilever Crane
Mobile Column Cantilever Crane
Electric Trolley Column Cantilever Crane
Column-mounted Gantry Crane
Hanging Gantry
Single-Sided Gantry Crane
Technical Parameter
Technical Specifications
| MODEL | TB-VAT-100(H) | TB-VAT-120(H) | TB-VAT-140(H) | TB-VAT-160(H) | TB-VAT-180(H) | TB-VAT-200(H) | TB-VAT-230(H) |
|---|---|---|---|---|---|---|---|
| (KG) LOAD | 30 | 50 | 60 | 70 | 90 | 120 | 150 |
| SIZE (MM) | 2500 | ||||||
| SUCKER DIAMETER (MM) | 100 | 120 | 140 | 160 | 180 | 200 | 230 |
| (M/S) LIFT SPEED | Approx. 1 m/s | ||||||
| (MM) LIFT HEIGHT | 1700 | ||||||
| VACUUM PUMP | 2.2kw | 3.5kw | 3.5kw | 4.5kw | 4.5kw | 4.5kw | 5kw |
Need More Detailed Specifications?
Our engineers are ready to provide you with custom solutions tailored to your specific requirements. Contact us for more information.
