Vacuum Solution: BILLIONS LIFTER® Vacuum Tube Lifters: Enhancing Carton Handling for Packing and Unpacking Stations
I. Project Background
The client is a mechanical parts manufacturer with two primary operational requirements in their packing area: loading cartons into wooden crates (packing) and removing cartons from wooden crates (unpacking/material retrieval).
Pain Points: Ergonomic Constraints: The height of the outer wooden crates forced workers to bend deeply to place or retrieve cartons, leading to physical strain.
Handling Difficulty: The low height of the cartons made manual gripping and lifting inefficient and awkward for the staff.
II. Solution

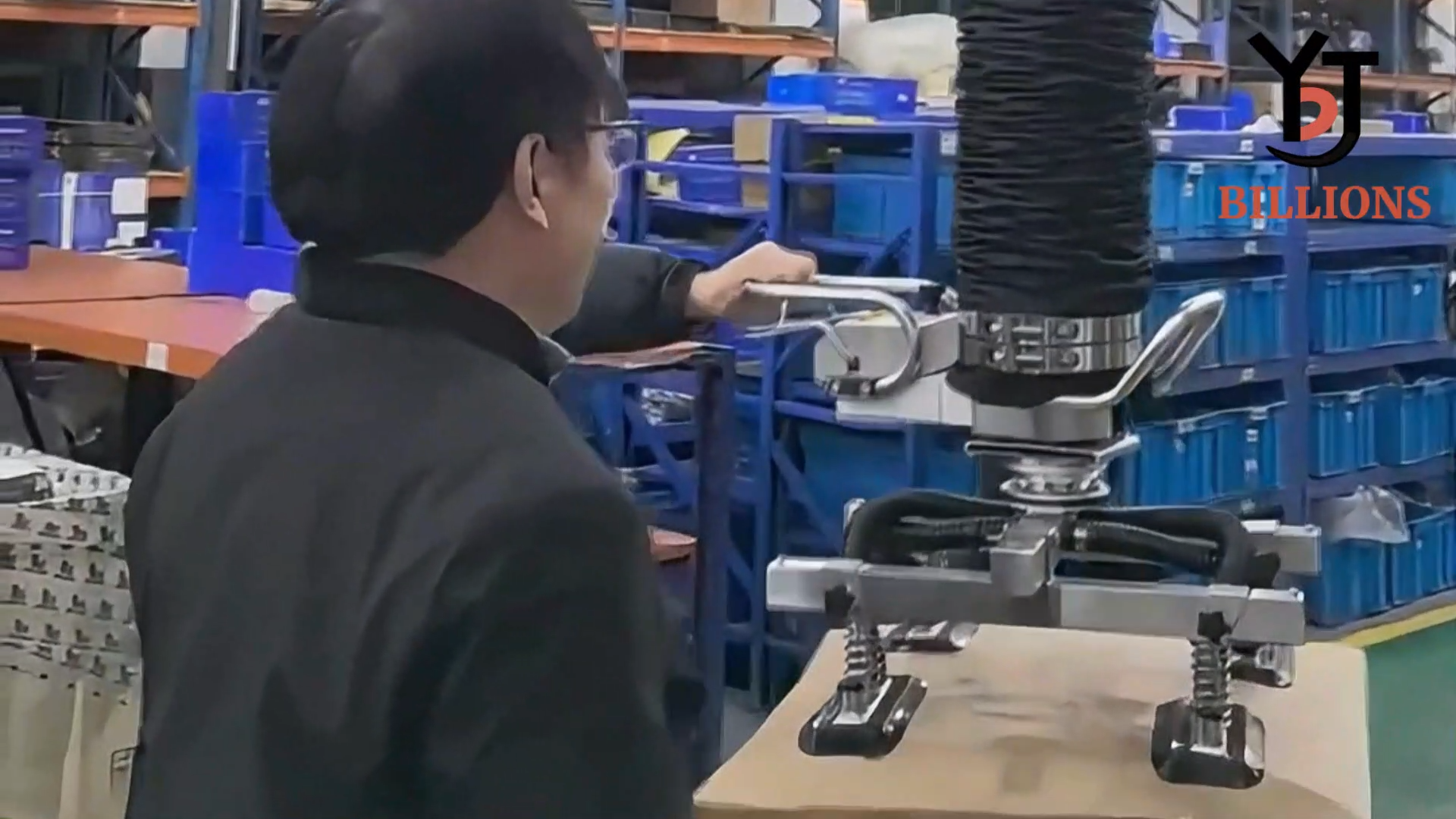

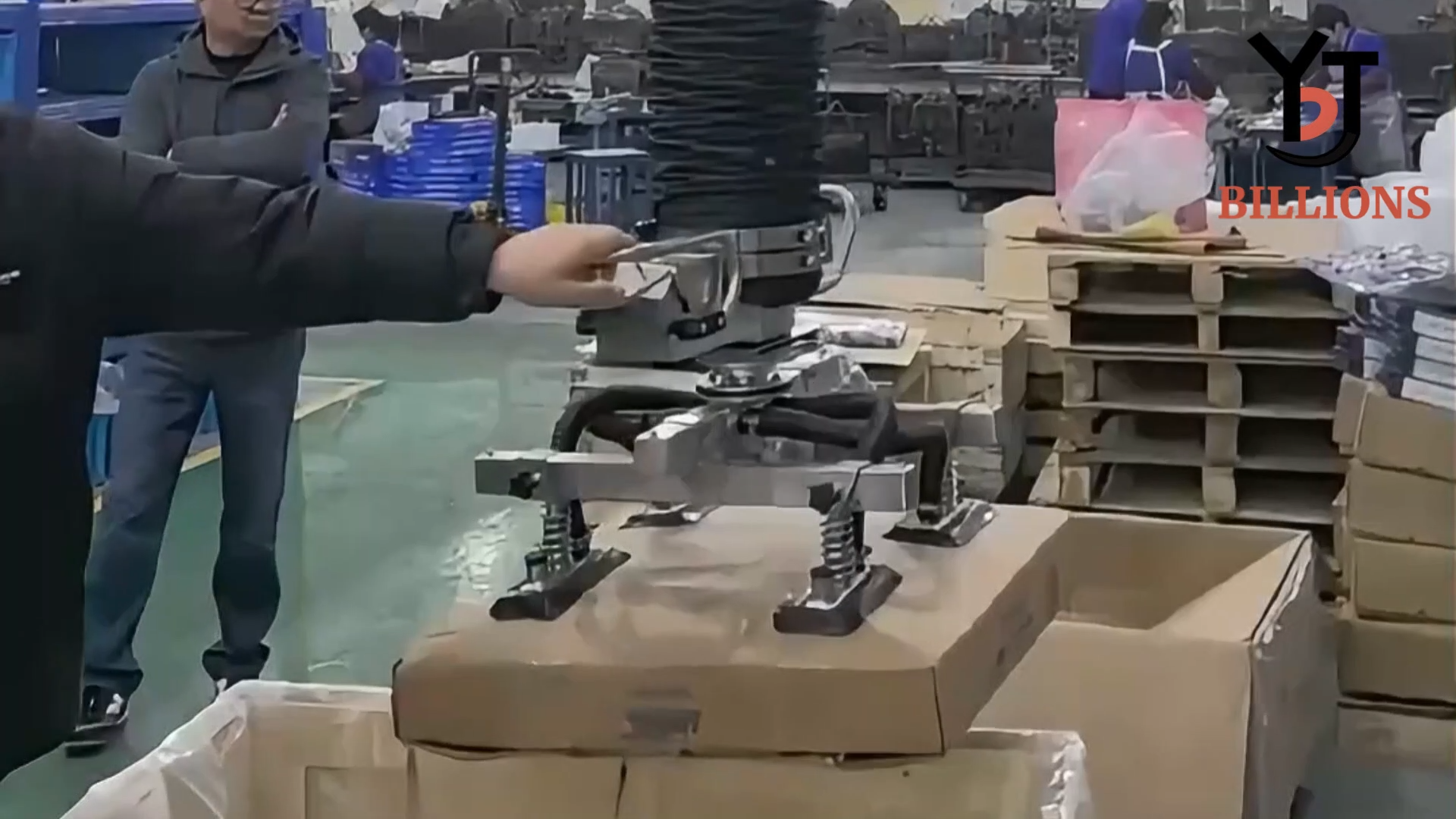

BILLIONS LIFTER® provided a customized solution featuring a Column-Mounted Jib Crane integrated with a Vacuum Tube Lifter to streamline the handling process.
Vacuum Tube Lifter [TB-VAT-120(H)]: Specifically selected based on load requirements (Maximum load of 50kg at the packing station). It features an effective lifting height of 1,700mm (exceeding the client’s 1,500mm requirement).
III. Implementation Results
Significant Efficiency Gains: Throughput at the packing line increased by approximately 30%, while the speed of unpacking and material retrieval improved by over 50%.
Zero Damage: The precision of vacuum adsorption and gentle release eliminated the risk of drops or collisions, achieving zero damage to both the cartons and the internal components.
Improved Employee Satisfaction: By adhering to ergonomic standards and eliminating heavy manual lifting and bending, the risk of occupational injuries has dropped significantly, leading to better staff retention and stability.
IV. Expanded Application Scenarios
Beyond the food and beverage industry, the BILLIONS LIFTER® Vacuum Tube Lifter is ideal for packing and unpacking in various sectors:
Home Appliances: Loading large appliances like air conditioners and refrigerators into heavy-duty cartons, or removing units for repair.
Express Logistics & Sorting: Retrieving parcels from bulk containers for sorting, or packing sorted parcels into shipping boxes. Automotive Parts: Transferring components from raw material cartons to assembly lines, or packing finished parts into specialized containers.
Building Materials & Chemicals: Removing bagged powders or barreled liquid raw materials from crates, or loading heavy finished products into export cartons.
Technical Configuration
| Max. Load Capacity | 50KG |
|---|---|
| Material Handled | Cardboard Boxes |
| Lifting Speedl | 1m/S |
| Power Supply | Customizable |
Case FAQ
Q: Is it physically demanding to operate?
A: Not at all. The vacuum tube lifter utilizes a balancing principle (where vacuum pressure automatically adjusts based on the load) or a pneumatic balancer. This allows the operator to lift, lower, and maneuver heavy cartons with just a few kilograms of force, achieving a "weightless" or "hovering" effect during transport.
Q: What is the maximum lifting capacity?
A: Standard models are available in 20kg, 25kg, and 50kg capacities. However, the equipment is fully customizable, with capacities ranging from 10kg up to 100kg. The exact capacity depends on the vacuum pump power, suction cup dimensions, and the material of the carton.
Q: What types of cartons can it handle?
A: It can handle a wide variety of cartons, including tape-sealed boxes, strapped boxes, and even open-top containers (such as express delivery boxes). As long as the surface is relatively flat for suction, the system provides a secure and reliable grip.
