BILLIONS LIFTER® Vacuum Tube Lifter: Ergonomic Solutions for Wooden Box Handling

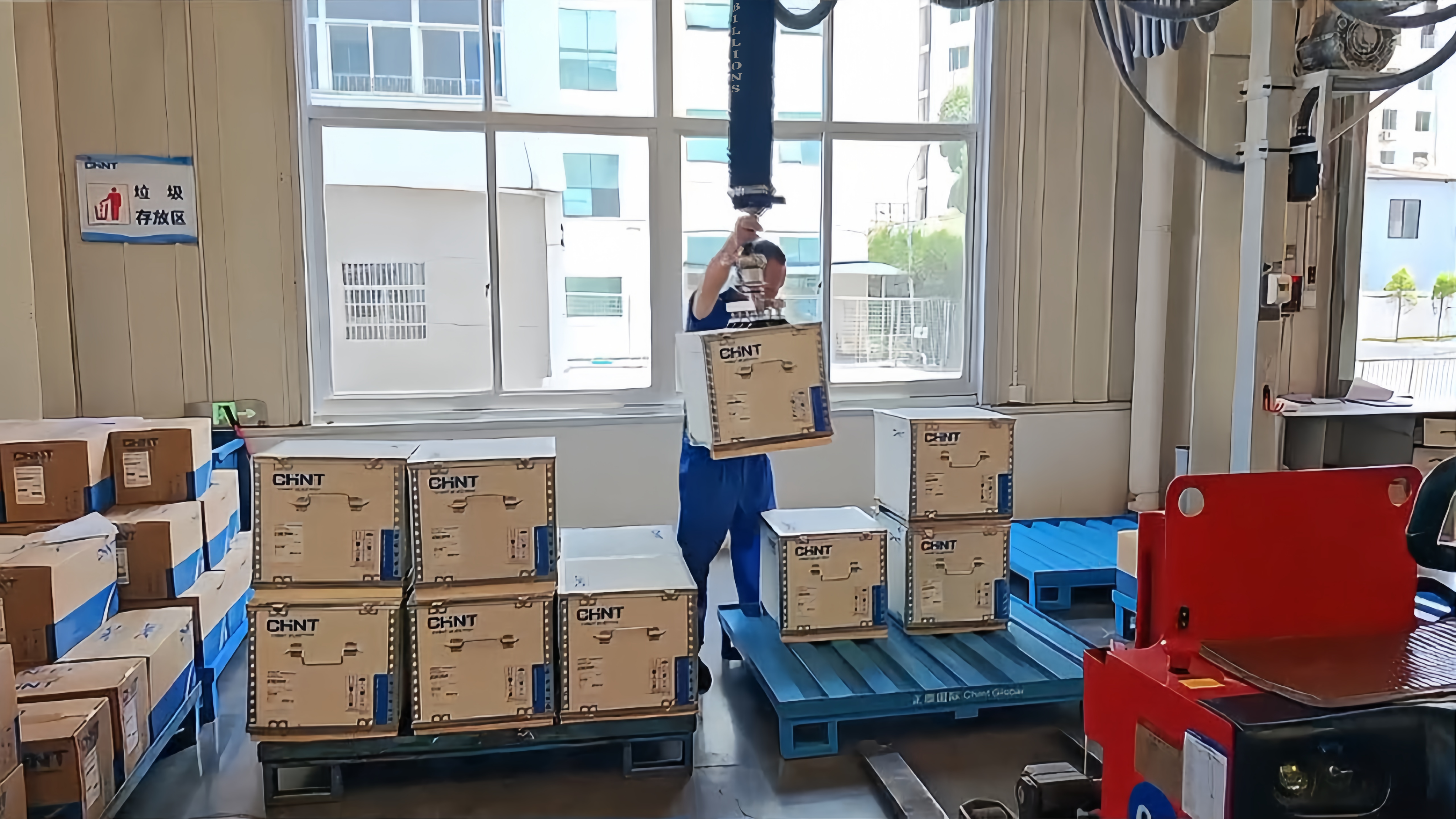

Case Study: Enhancing Warehouse Logistics Efficiency with BILLIONS LIFTER® Vacuum Tube Lifter & Pillar-Mounted Jib Crane Systems.
In modern warehouse and logistics operations, efficient, safe, and ergonomic material handling is the cornerstone of increasing productivity and protecting employee health. As a leading brand in vacuum handling equipment, BILLIONS LIFTER has engineered a customized wooden box handling system for industrial warehouses. By integrating our flagship vacuum tube lifter with a high-performance pillar-mounted jib crane, we provide a perfect solution to the various pain points of manual heavy lifting..
I. Project Background & Pain Points

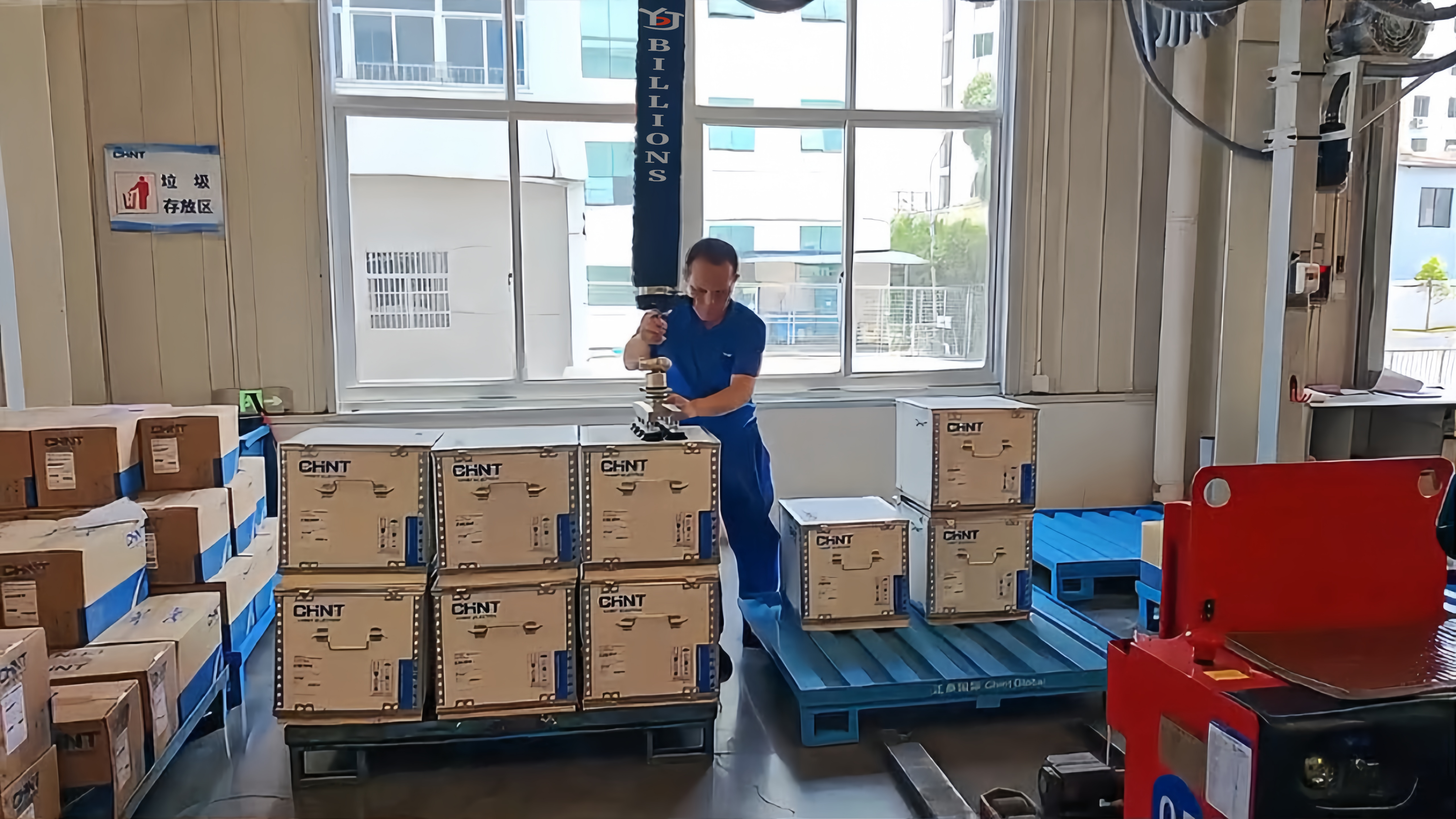

In this warehouse scenario, operators frequently move heavy wooden boxes (typically weighing 20–50kg) between pallets, workstations, and transport vehicles. Traditional manual handling faces multiple challenges:
• High Labor Intensity: Repetitive lifting, bending, and carrying lead to severe physical strain and musculoskeletal disorders (MSDs), posing long-term occupational health risks.
• Operational Efficiency: Manual handling speeds are limited, creating bottlenecks in warehouse throughput and order fulfillment.
• Safety Hazards: Accidental drops, slips, or improper lifting techniques result in product damage and workplace injuries, driving up operational costs.
• Non-Compliance with Ergonomics: Manual operations fail to meet modern workplace ergonomic standards, reducing employee satisfaction and retention.
.png)
II. Solution Overview: BILLIONS LIFTER® System
To address these issues,BILLIONS LIFTER® deployed a fully integrated handling system specifically optimized for wooden boxes:
2. Core Lifting Equipment: BILLIONS LIFTER® Vacuum Tube Lifter
Specifically designed for wooden boxes, our tube lifter features industry-leading characteristics:

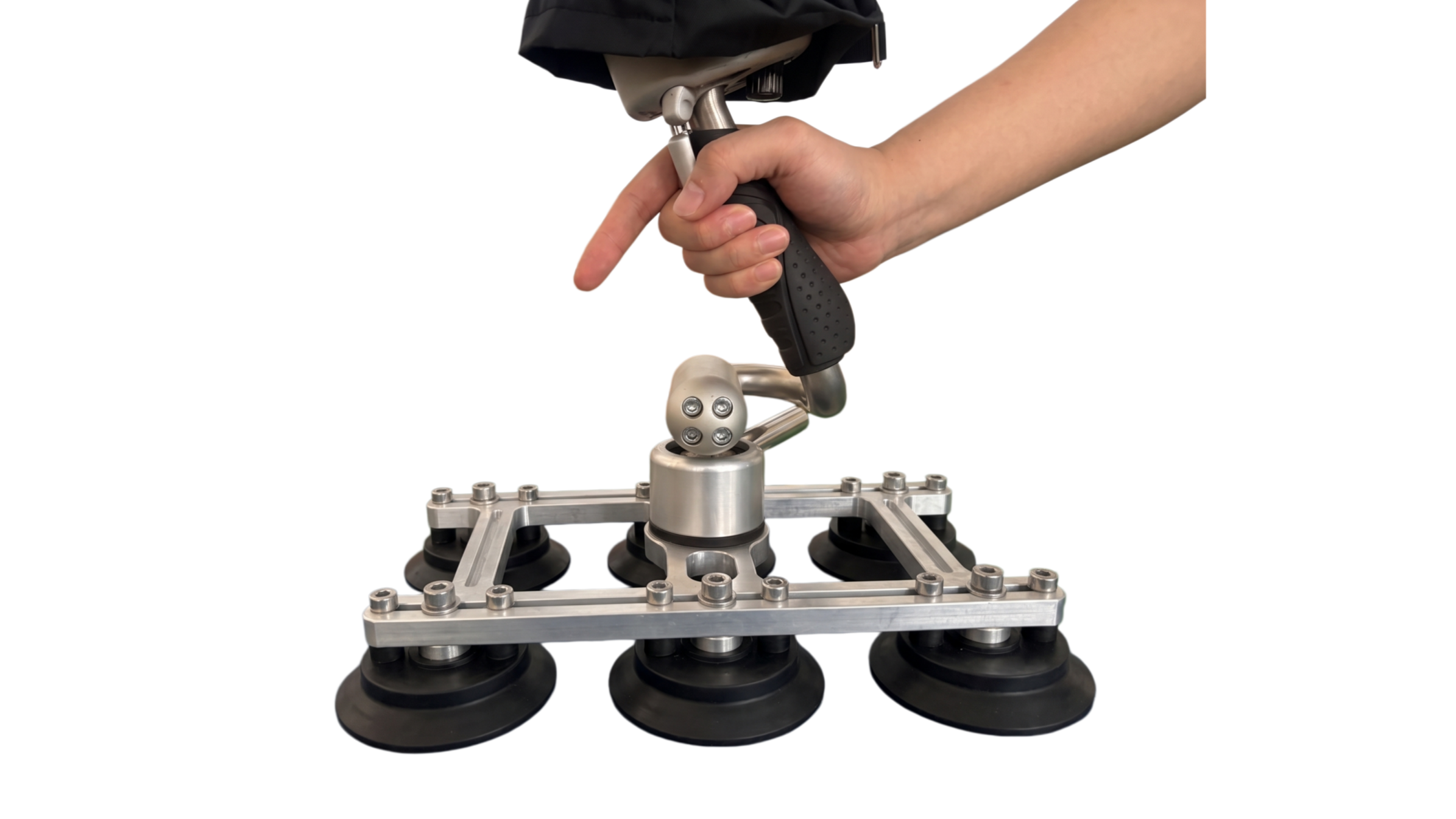

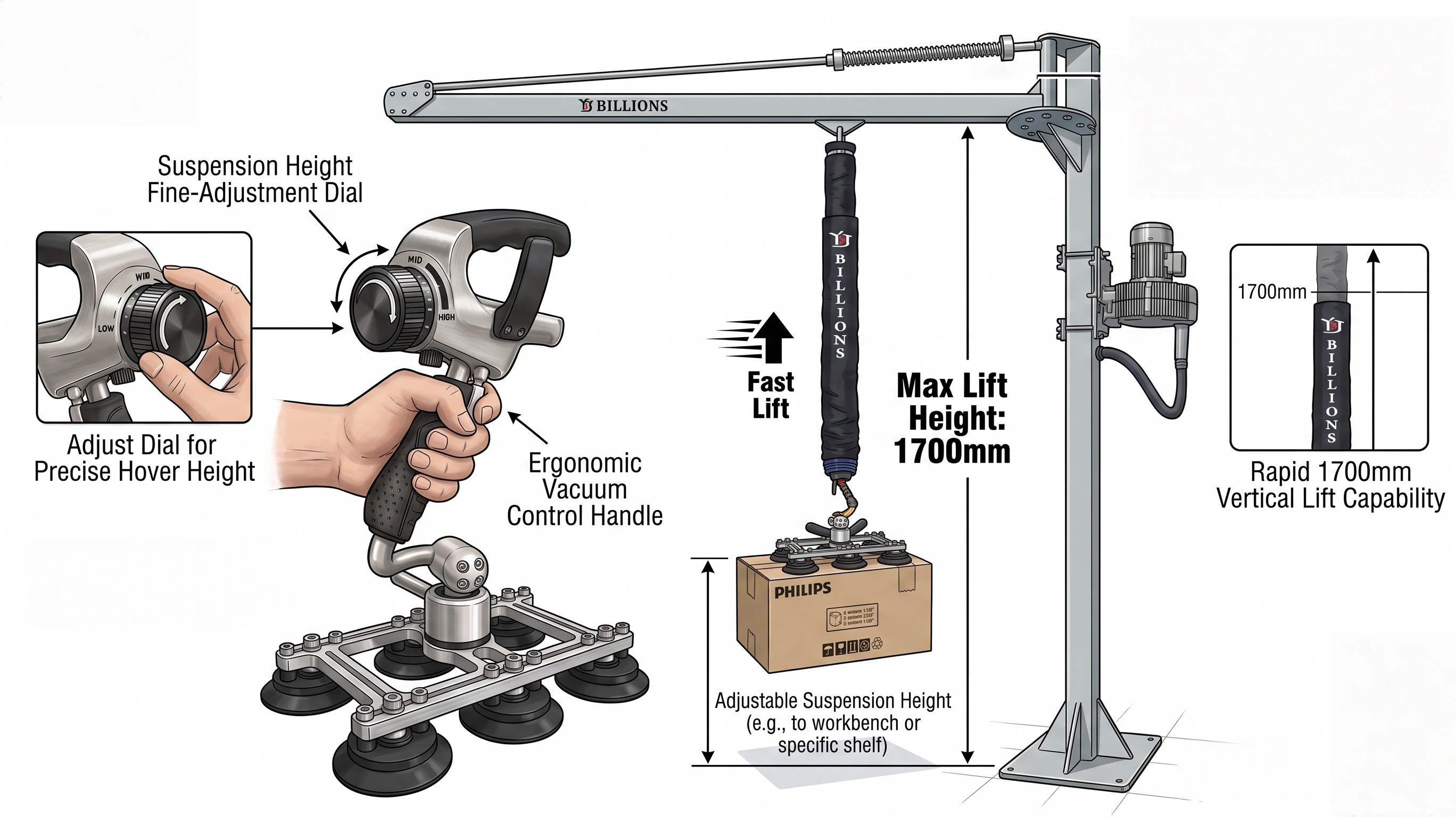

•One-Handed Operation: The intuitive control handle allows operators to lift, lower, and position boxes with one hand, eliminating the need for complex controls or two-person coordination.
•Ergonomic Design: The lightweight, balanced tube structure aligns with natural human mechanics, significantly reducing strain on the wrists, back, and shoulders during long shifts.

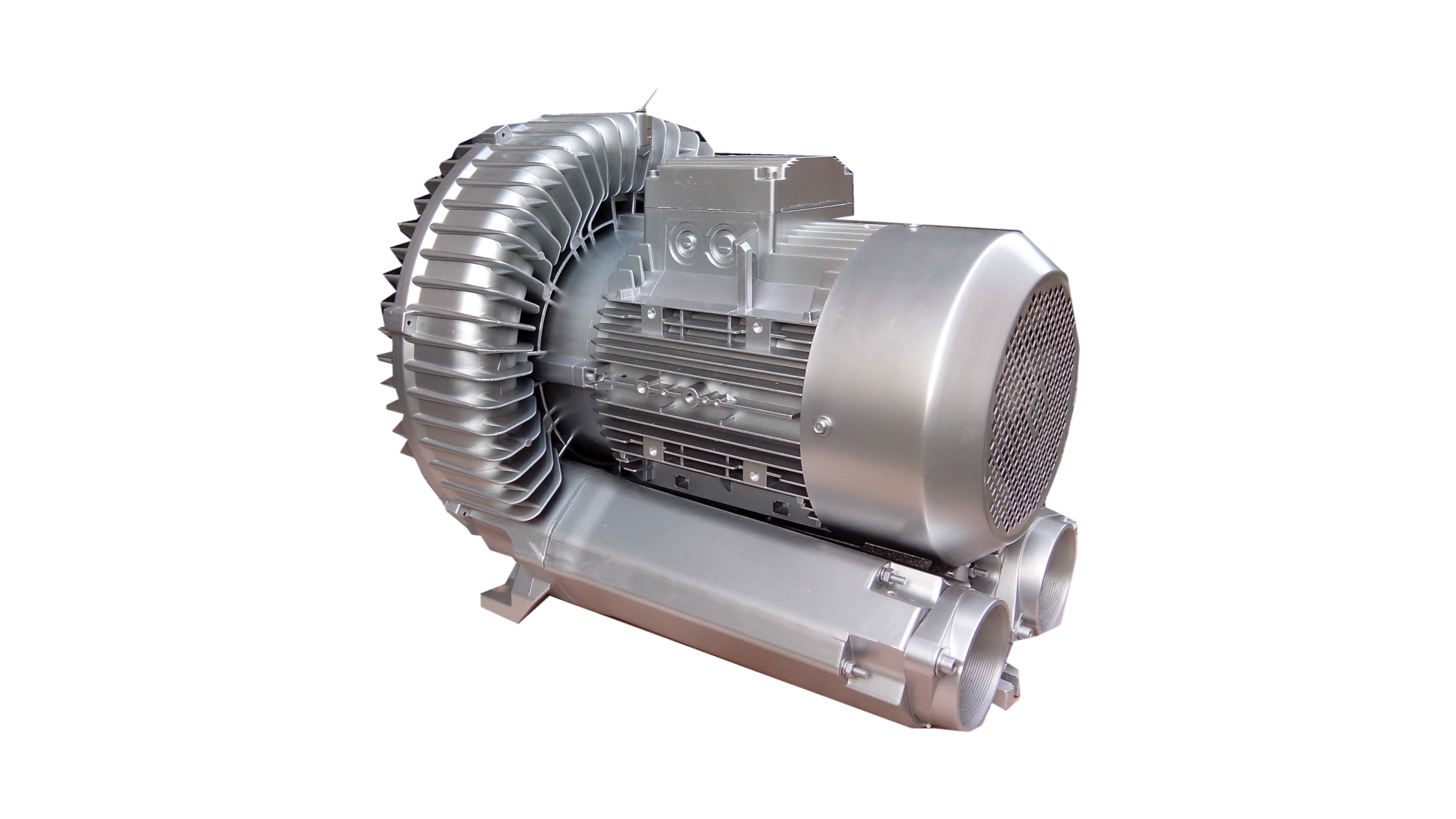

•Rapid Vacuum Response: A high-efficiency vacuum blower enables instantaneous suction and release, supporting continuous operation with zero downtime.
•Safety Redundancy: Equipped with a non-return valve and load-holding system, the cargo will descend slowly even in the event of a sudden power failure, preventing accidental drops.

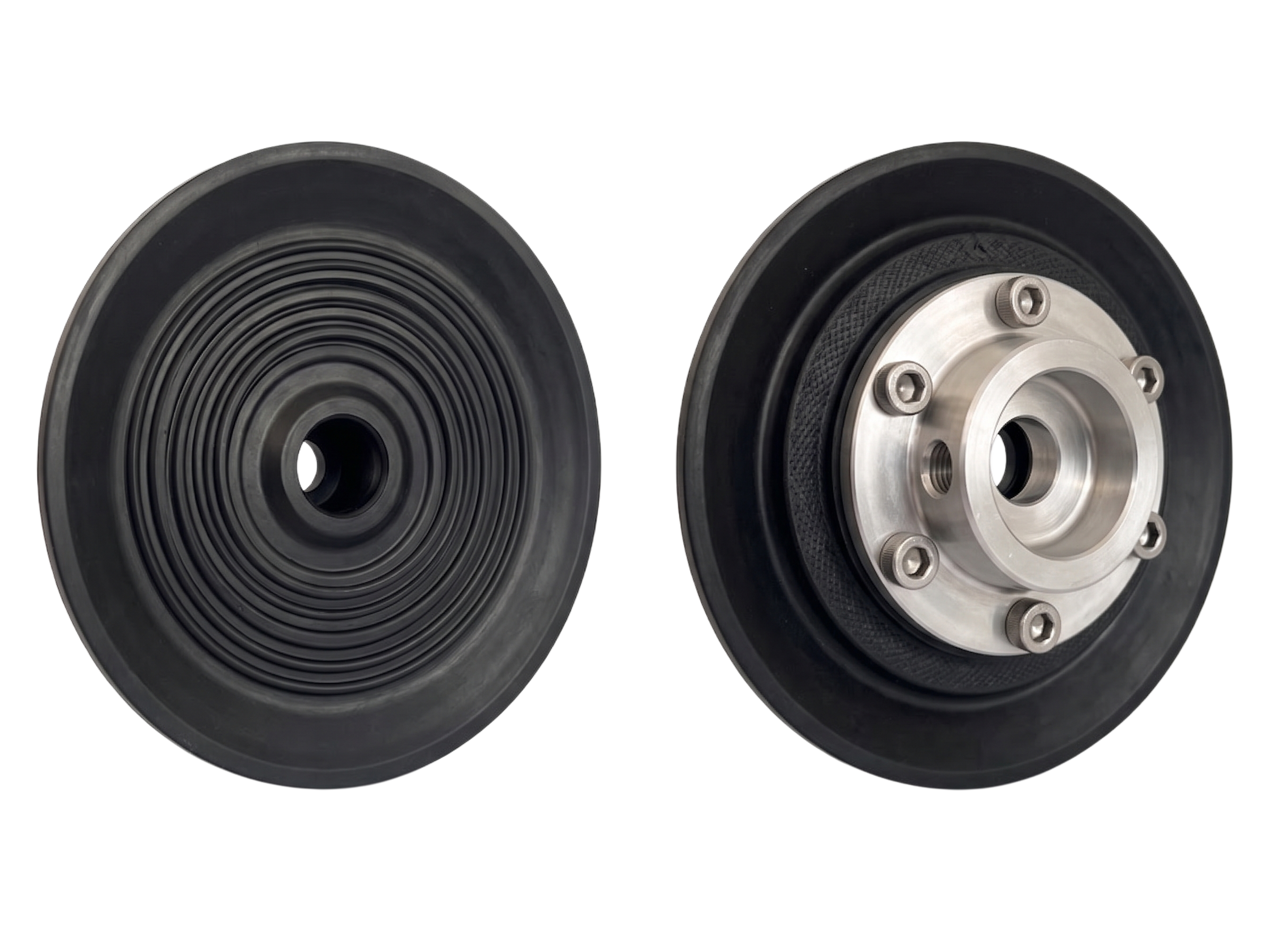

•Specialized Suction Cups: Custom-engineered suction pads ensure a stable grip on wooden surfaces.
1. Support System: BILLIONS LIFTER® Aluminum Rail Pillar-Mounted Jib Crane
To maximize mobility and coverage, the lifter is paired with a premium jib crane:
Technical Configuration
| Component | Model / Type | Key Parameters |
|---|---|---|
| Core Lifter | BILLIONS LIFTER® Vacuum Tube Lifter | - Rated Load: 50kg (Customizable up to 300kg) - Operation: One-handed control - Response Time: < 0.5s - Safety: Non-return valve, load-holding system - Suction Head: Specialized wooden box pads |
| Support Crane | Pillar-Mounted Jib Crane | - Rotation: 270°
- Rail Material: High-strength aluminum alloy - Lifting Height: 3m (Customizable) - Jib Length: 4m (Customizable) - Movement: Manual, low-friction |
| System Integrationr | Complete Solution | - Working Radius: 270° circular coverage
- Standards: Complies with CE - Installation: Floor-mounted pillar (no ceiling support required) - Applications: Palletizing, loading/unloading, warehouse sorting |
Ⅲ. Results & Benefits
The implementation of the BILLIONS LIFTER® system delivered comprehensive operational improvements:
•Significant Efficiency Gains: Handling efficiency increased by over 200% compared to manual labor. A single operator can now move 30+ boxes per hour, eliminating process bottlenecks.
•Zero Occupational Injuries: The ergonomic design eliminates lifting strain and musculoskeletal risks, reducing workplace accidents to zero.
•Reduced Product Loss: Stable vacuum gripping and controlled movement have reduced packaging and product damage costs by over 90%.
•Regulatory Compliance: The system fully meets international ergonomic standards, improving the work environment and employee retention.
•Optimized Space: The pillar-mounted design maximizes vertical space, making it ideal for compact warehouse layouts.
Why Choose BILLIONS LIFTER®?
•Custom Engineering: Our solutions are tailored to specific load types (boxes, crates, boards) and warehouse layouts to ensure perfect fit and performance.
Ergonomic Leadership: Every component is designed to reduce fatigue and comply with global occupational health and safety regulations.
• Proven Reliability:Trusted by global logistics, manufacturing, and e-commerce warehouses, maintaining an uptime of 99.9%.
•End-to-End Support:From site survey and system design to installation, training, and after-sales maintenance.
Partner with BILLIONS LIFTER to optimize your handling operations.
Contact our engineering team today for a free site survey and a customized lifting solution.
BILLIONS LIFTER® – Lifting Efficiency, Protecting People.
Case FAQ
1. Can the wooden box handling system really be operated with one hand?
The entire installation and staff training were completed within [天数] days.
2. What is the coverage of the 270° rotation of the column-mounted jib crane?
The 270° rotation, combined with the customized jib length, can cover a fan-shaped working area. It meets various operations such as feeding, palletizing, loading, and transferring wooden boxes at a single workstation. There is no need to move the equipment frequently, and one set can cover multiple pallets and operation points.
3. If the surface of the wooden box is uneven, will the vacuum suction easily fall off?
No. The system is equipped with special vacuum suction cups adapted to the wooden box material, along with pressure loss protection, non-return valves, and load-holding functions. Even in case of temporary power failure or air pressure fluctuation, it can firmly absorb the workpiece, ensuring safe and stable handling without damaging the box.
