Vacuum Solution: BILLIONS LIFTER®[TB-VAT-120(H)] Enhances Efficiency in Electrical manufacturing

Project Background

In industries such as logistics, food processing, and pharmaceutical packaging, carton handling is a core operational link. Whether it is warehouse palletizing, workshop transfer, or outbound loading, the efficiency and safety of handling directly impact production output and operational costs.

Traditional manual handling is labor-intensive, prone to fatigue-related errors, and carries risks of product damage and workplace injuries. Standard forklifts, on the other hand, are often restricted by space, making them unsuitable for narrow aisles or multi-layer racking. To address these challenges, BILLIONS LIFTER® implemented a customized solution for a Chinese motor manufacturer: a Ceiling-Mounted Rail System paired with a Vacuum Tube Lifter. This system has revolutionized their workflow—achieving full automation, high efficiency, and maximum safety.

I. Project Background: Heavy Loads and High-Stacking Challenges

The client, a leading motor manufacturer, processes a vast volume of various-sized cartons daily (weighing 25–50kg). With a daily throughput exceeding 8,000+ boxes, their previous "Manual + Hand Pallet Jack" model faced three critical pain points:

1.Low Efficiency: A worker could only move one box at a time, with an average daily output of fewer than 500 boxes. During peak periods, even with temporary labor, they struggled to meet delivery deadlines, leading to "bottlenecks" where cargo or personnel were constantly idle.

2.Safety Risks: High-stacking led to frequent tipping. Long-term repetitive lifting caused occupational issues like lumbar strain and joint injuries. Furthermore, forklifts were too bulky for tight corners and narrow aisles, leading to frequent collisions and box damage.

3.Rising Costs: Heavy reliance on manual labor resulted in high payroll costs. Additionally, the product damage rate hovered between 3%–5%, significantly increasing waste.

 To break through these bottlenecks, the company chose the BILLIONS LIFTER® integrated solution to optimize the entire handling process.

II. Solution Configuration: Precision Engineering for Seamless

The BILLIONS LIFTER® team designed a modular system where the rail and lifter work in perfect synergy:

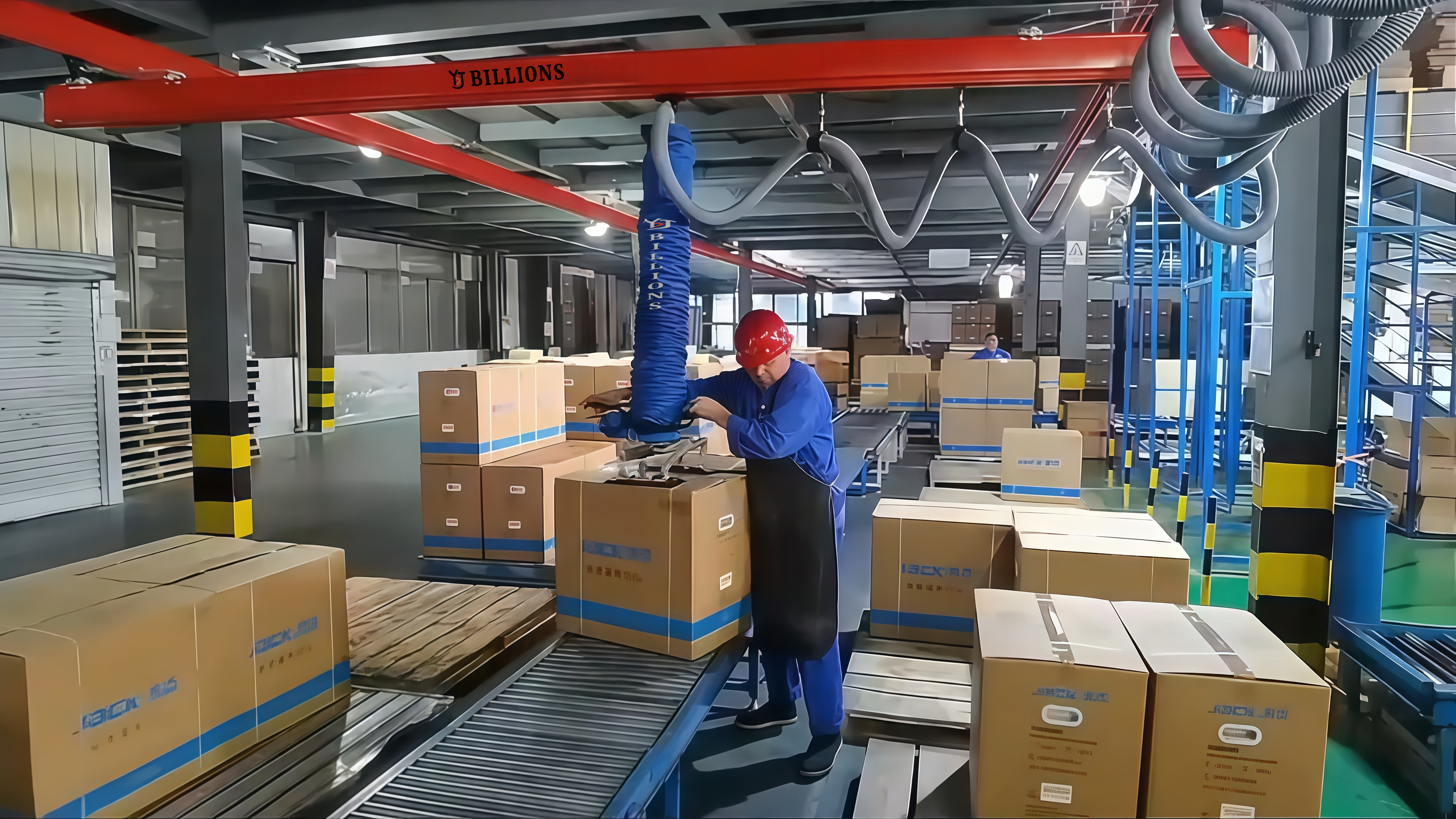

1. Ceiling-Mounted Rail System.

•Space Optimization: Mounted directly to the ceiling (subject to load-bearing verification), the modular tracks free up 100% of the floor space.

•Performance: With a rated load of 80kg, the high-performance, low-friction rails ensure smooth, noise-free movement.

•Seamless Integration: The modular design allows for flexible routing across storage and sorting zones without modifying the main building structure.

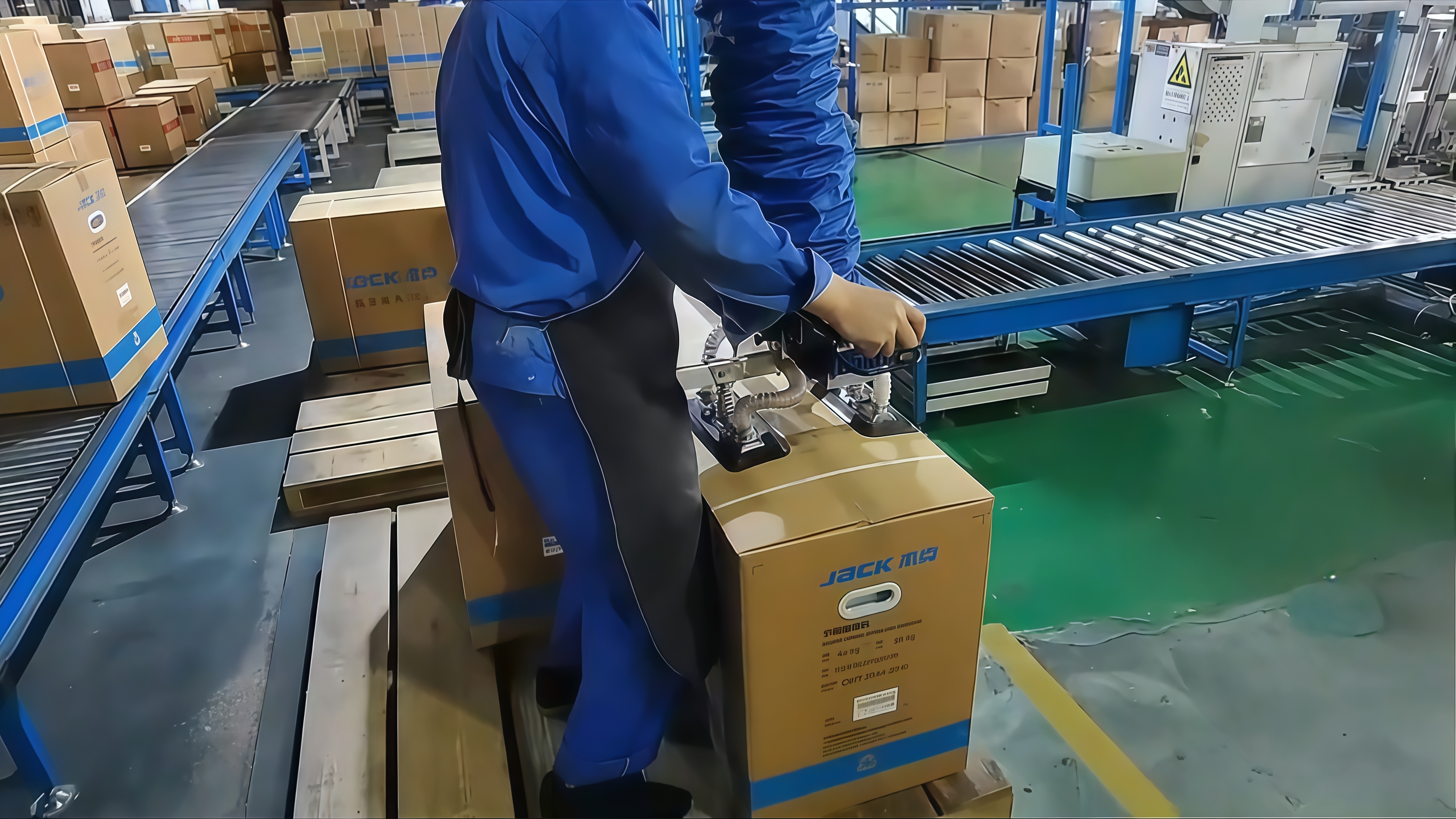

2. Vacuum Tube Lifter for Cartons[TB-VAT-120(H].

•Versatile Adsorption: Using vacuum suction principles, the unit features adjustable suction feet to handle weights from 25kg to 350kg.

•Rapid Operation: Pick-up time is ≤2 seconds, with a lifting height of up to 1,600mm.

•Safety First: Equipped with power-failure protection and vacuum self-locking; the load cannot be released while suspended in mid-air. The flexible suction pads ensure no scratches or structural damage to the cartons.

3. System Synergy.

The lifter hangs from the rail, moving freely across the X and Y axes. The entire cycle—from suction to release—takes only 5–8 seconds, drastically reducing cycle times while maintaining ergonomic standards for the operator.

Technical Configuration

Max. Load Capacity	50KG
Material Handled	Cardboard Boxes
Lifting Speedl	1m/S
Power Supply	Customizable
