Project Background
The application of the BILLIONS LIFTER® Ceiling Rail System paired with our Vacuum Tube Lifter has fully demonstrated the practicality and superiority of this combined solution in carton handling scenarios. Compared to traditional manual handling, this solution not only addresses core pain points—such as low efficiency, safety hazards, and high labor costs—but also offers high space utilization, intuitive operation, flexible adaptation, and enhanced reliability. It perfectly aligns with the modern enterprise's demands for cost reduction, efficiency enhancement, and safe production.
If your enterprise is struggling with inefficient carton handling, rising costs, or safety concerns, choose the BILLIONS LIFTER® Ceiling Rail System and Vacuum Tube Lifter combination. Empower your production with BILLIONS LIFTER® equipment, boost efficiency through advanced handling, and unlock a new way to manage carton logistics!
The Solution:BILLIONS LIFTER® Tube Lifter + Aluminum KBK Rail System

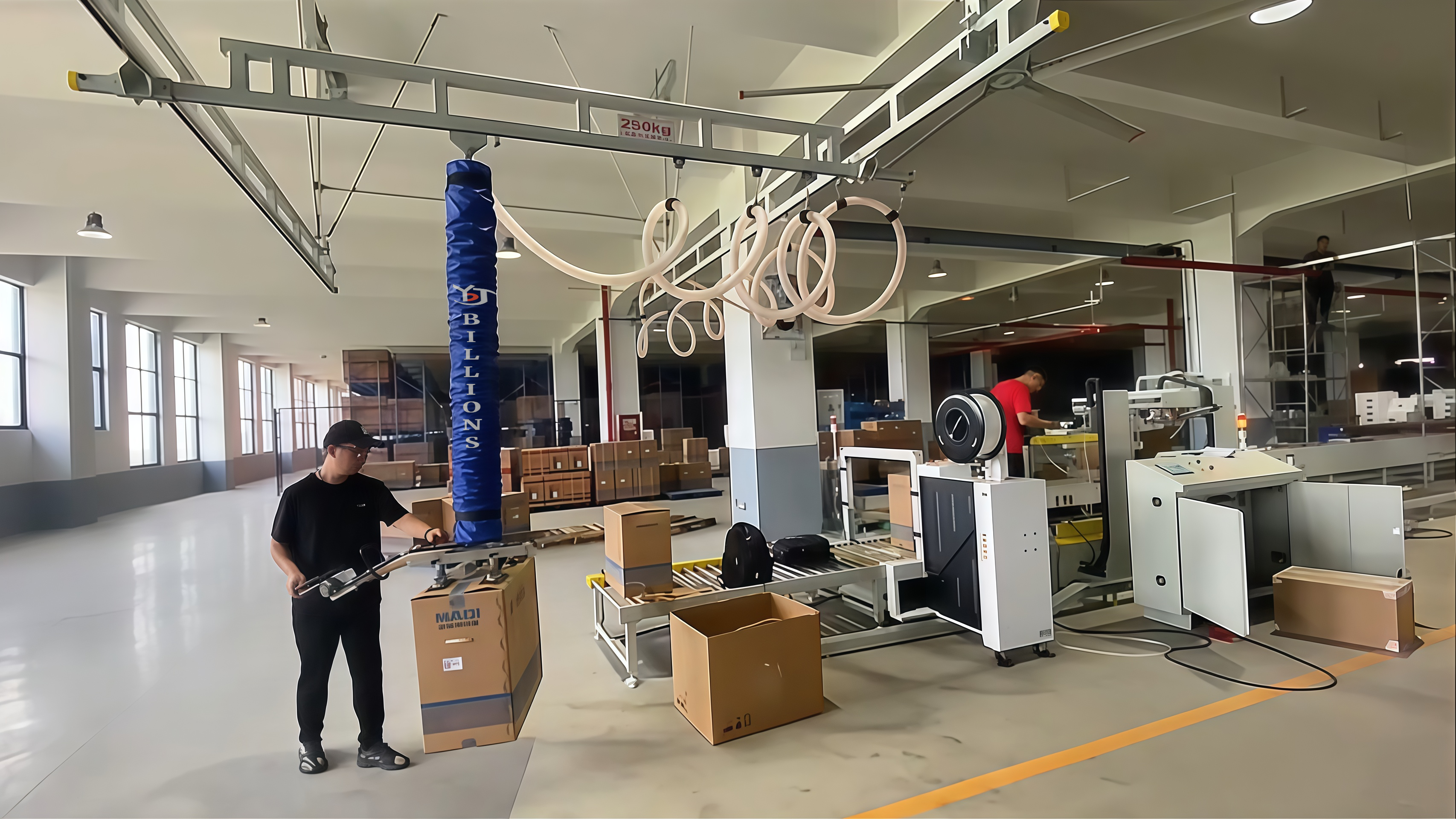

To address these challenges, we customized a handling solution featuring the BILLIONS LIFTER® Vacuum Tube Lifter with an Extended Handle as the core, supported by a lightweight Aluminum KBK Rail System.

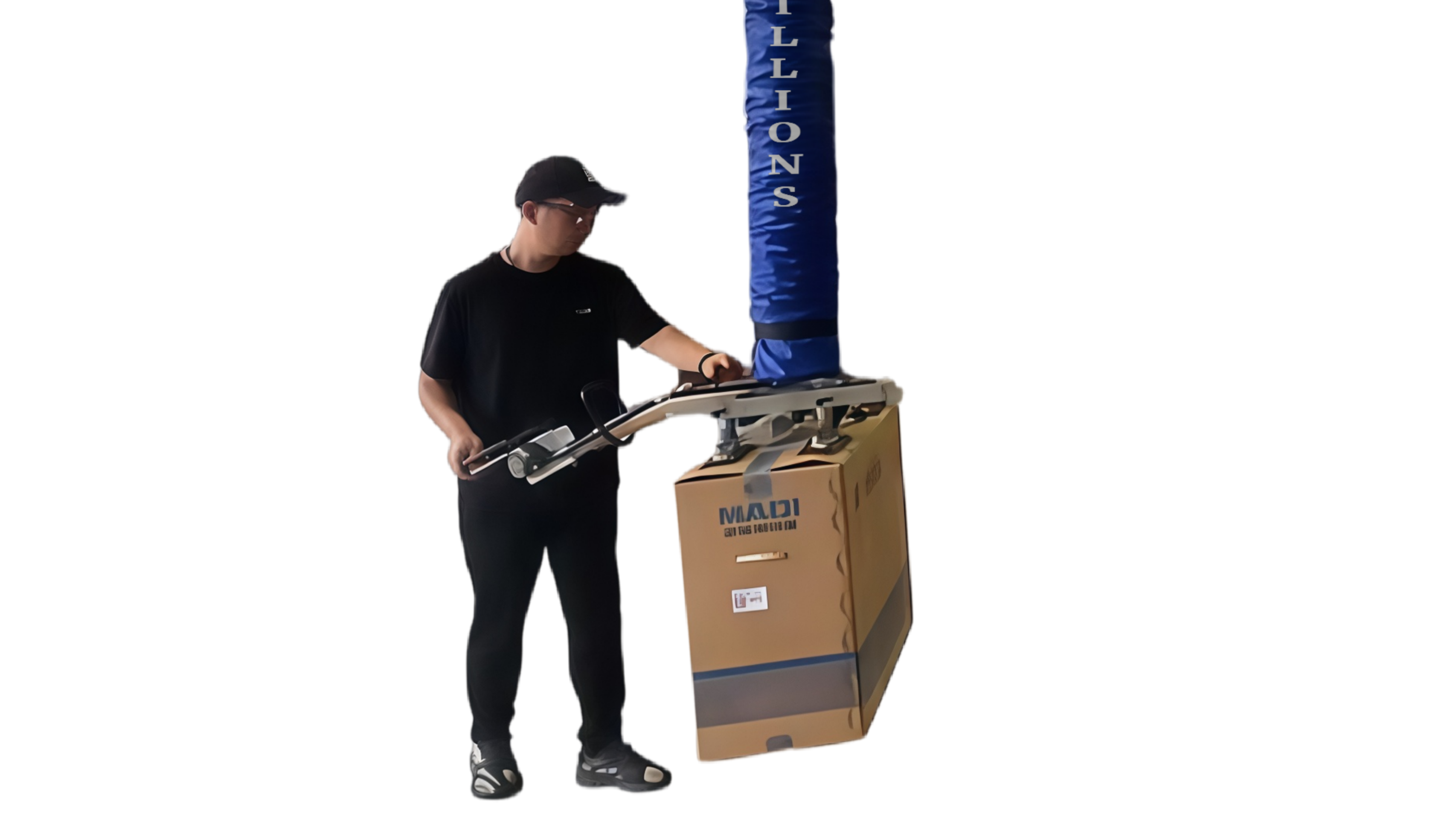

1. Core Equipment: BILLIONS LIFTER® Tube Lifter with Extended Handle Designed specifically for packaging workshops, this lifter offers key advantages that match real-world operational needs:
Ergonomic Extended Handle: The lengthened handle allows operators to remain upright throughout the process—lifting, moving, and placing cartons. This completely eliminates the need to bend over, drastically reducing lumbar strain and preventing occupational injuries.
High-Level Palletizing Made Easy: With a stable vertical stroke, the device can effortlessly lift cartons to heights of 2.5 meters or more. High-stack palletizing is completed in one step without the need for ladders or auxiliary equipment, ensuring both speed and safety.
Damage-Free Vacuum Adsorption: Specialized suction pads securely grip cartons of various sizes and weights without damaging packaging or printing, ensuring cargo remains intact.
Intuitive & Simple Operation: The responsive pneumatic control system allows workers to control lifting speed and positioning with just one hand. The learning curve is extremely low, enabling staff to be productive after minimal training.

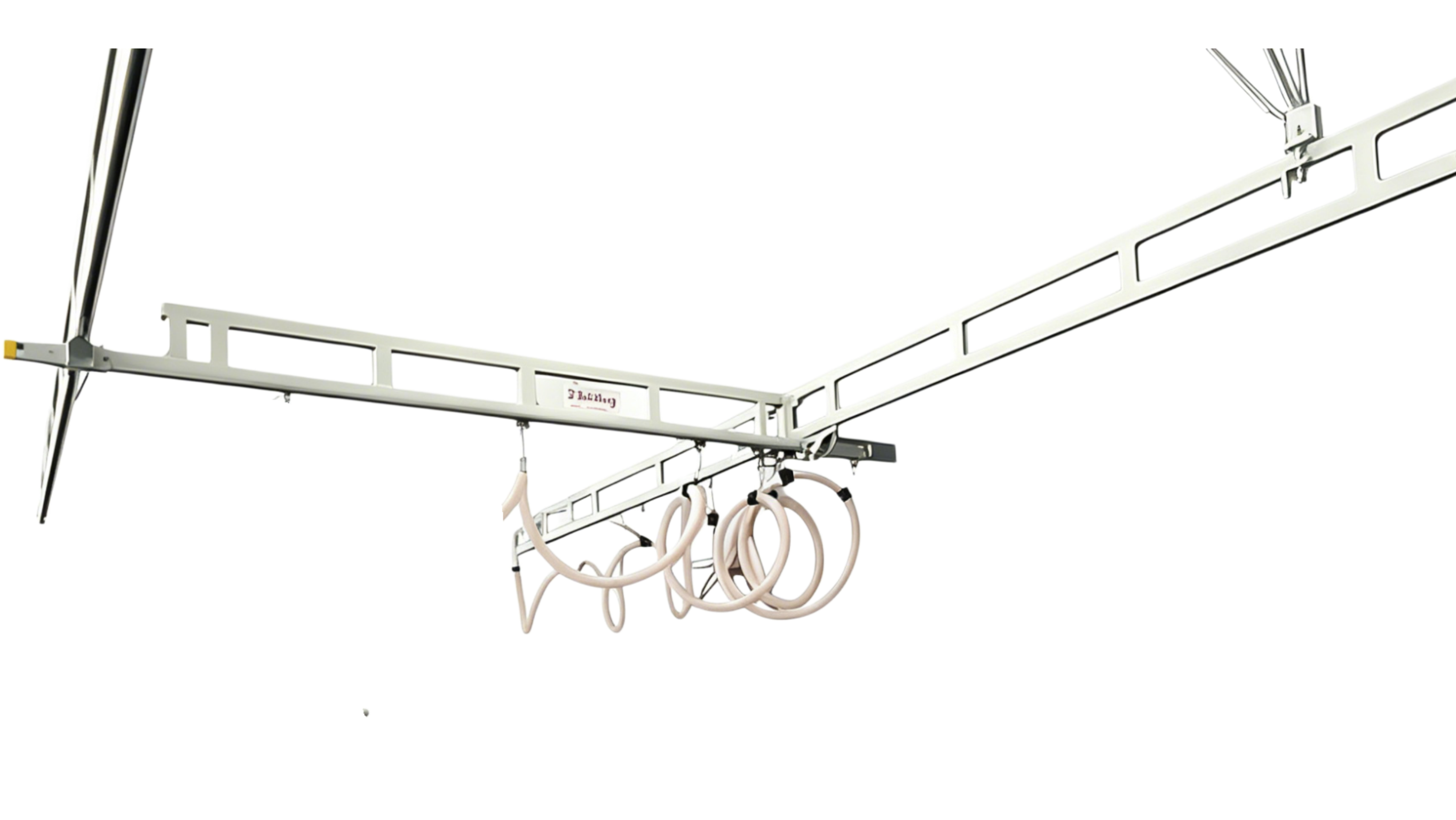

2. Supporting Infrastructure: Lightweight Aluminum KBK Rails
To maximize flexibility and coverage, we utilize a high-strength Aluminum KBK Rail System as the mobile carrier:
Ultra-Lightweight Design: Aluminum rails weigh only 40% of traditional steel rails. Workers can move the lifter smoothly with minimal force, enabling free movement across the workshop without strenuous dragging.
Broad Workspace Coverage: The modular KBK system can be customized to cover packaging lines, palletizing zones, and storage areas, allowing "one device to serve multiple workstations.
" Structural Stability & Durability: The aluminum alloy offers excellent corrosion resistance and load-bearing performance, suitable for high-frequency industrial use with low maintenance costs.
Implementation Results:
Upgraded Efficiency and Labor Protection

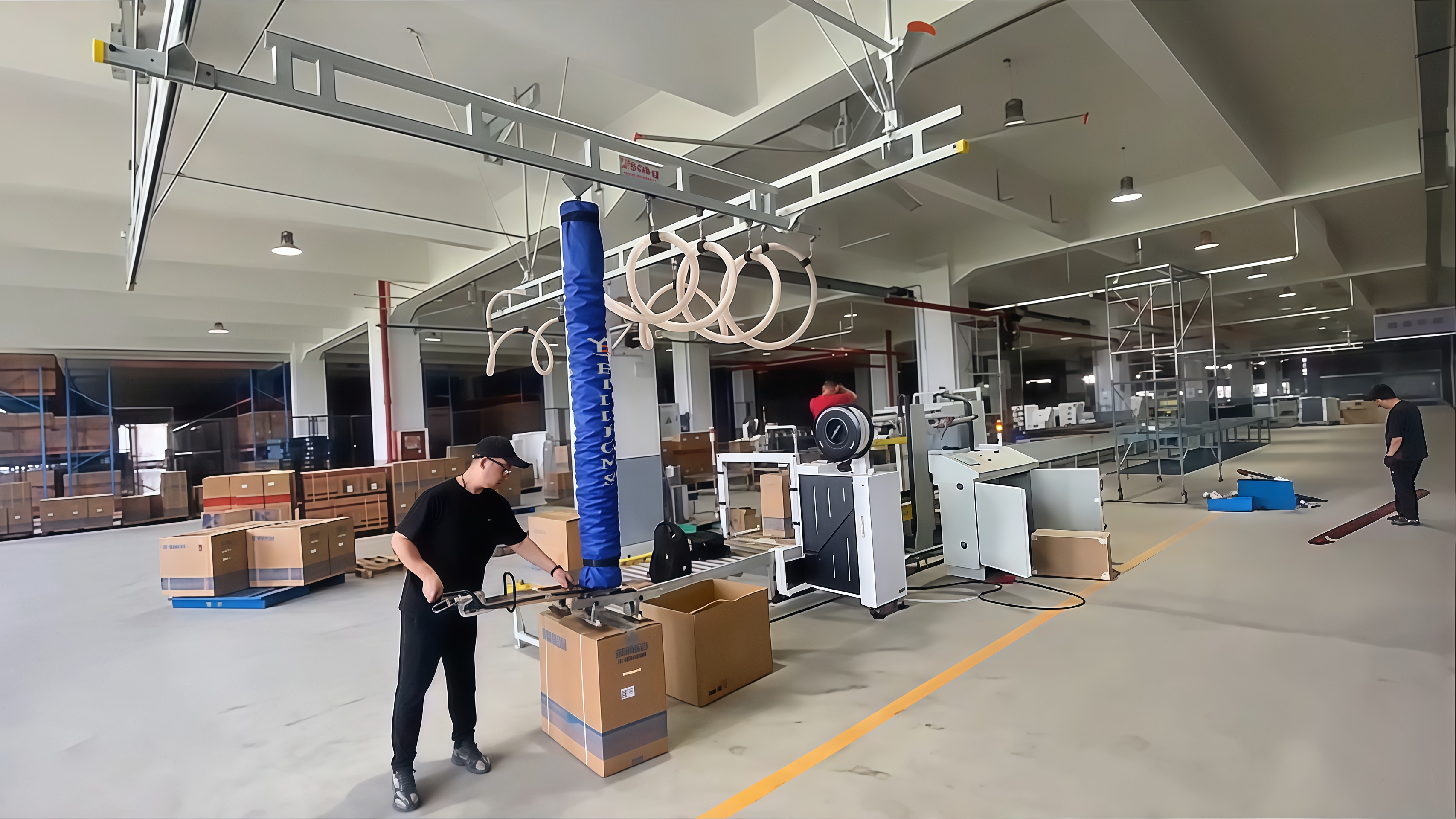

Following the implementation of this solution, the client’s carton handling and palletizing workflows were fully optimized: 90% Reduction in Labor Intensity: Workers operate upright, eliminating heavy lifting and bending. 100% Increase in Handling Efficiency: Cycle time per carton was reduced from 35 seconds to 15 seconds, and high-stacking efficiency doubled. Zero Damage: Vacuum suction eliminates crushing and collisions common with manual handling, reducing the damage rate from 3% to 0%. Seamless Full-Scenario Coverage: The KBK rails allow workers to move the lifter to any station, connecting packaging and palletizing flawlessly.
Technical Configuration
| Model | BILLIONS LIFTER® Specialized Carton Tube Lifter |
|---|---|
| Rated Capacity | 50kg (Customizable from 10–100kg) |
| Standard Strokel | 1700mm (Customizable extended strokes available) |
| Operation | Extended handle, pneumatic one-hand control |
| Rail System | Aluminum KBK Light-duty Crane System |
| Coverage Area | Customizable (Single system up to20*10M |
| Stacking Height | 0–2500mm (Upright operation throughout) |
| Compatible Workpieces | Cartons, wooden crates, boards (Flat or bagged items) |
Case FAQ
Q: Why does this tube lifter allow workers to operate without bending over?
A: The equipment is equipped with an extended ergonomic control handle. This allows operators to complete the entire process—including gripping, lifting, and placing—while standing upright. By eliminating the need to stoop or bend, it effectively protects the lumbar spine and significantly reduces labor intensity.
Q: Is the aluminum KBK rail system difficult to push? What is its coverage area?
A: Not at all. We use lightweight aluminum KBK tracks, which feature low self-weight and exceptionally smooth operation, allowing a single person to push the load effortlessly. The layout can be customized as a single-rail or double-rail system to provide extensive coverage, meeting the demands of multi-station packing and palletizing.
Q: What is the maximum lifting height of this device? Is it suitable for high-stack palletizing?
A: The equipment offers a generous lifting stroke. When paired with the KBK rail system, it easily achieves high-stack palletizing, allowing cartons to be lifted steadily to the height of standard high-level racking. The operation is smooth, safe, and reliable, drastically improving the efficiency of packing and stacking tasks.
