Battery-Powered
No external power source required, providing maximum mobility and flexibility for outdoor glazing, façade installation and on-site structural glass work.
Glass Vacuum Lifter-Outdoor (Electric)-BILLIONS LIFTER®
BILLIONS Glass Vacuum Lifter Work On JOB SITE
Products Description
Technical Parameter
Products Description

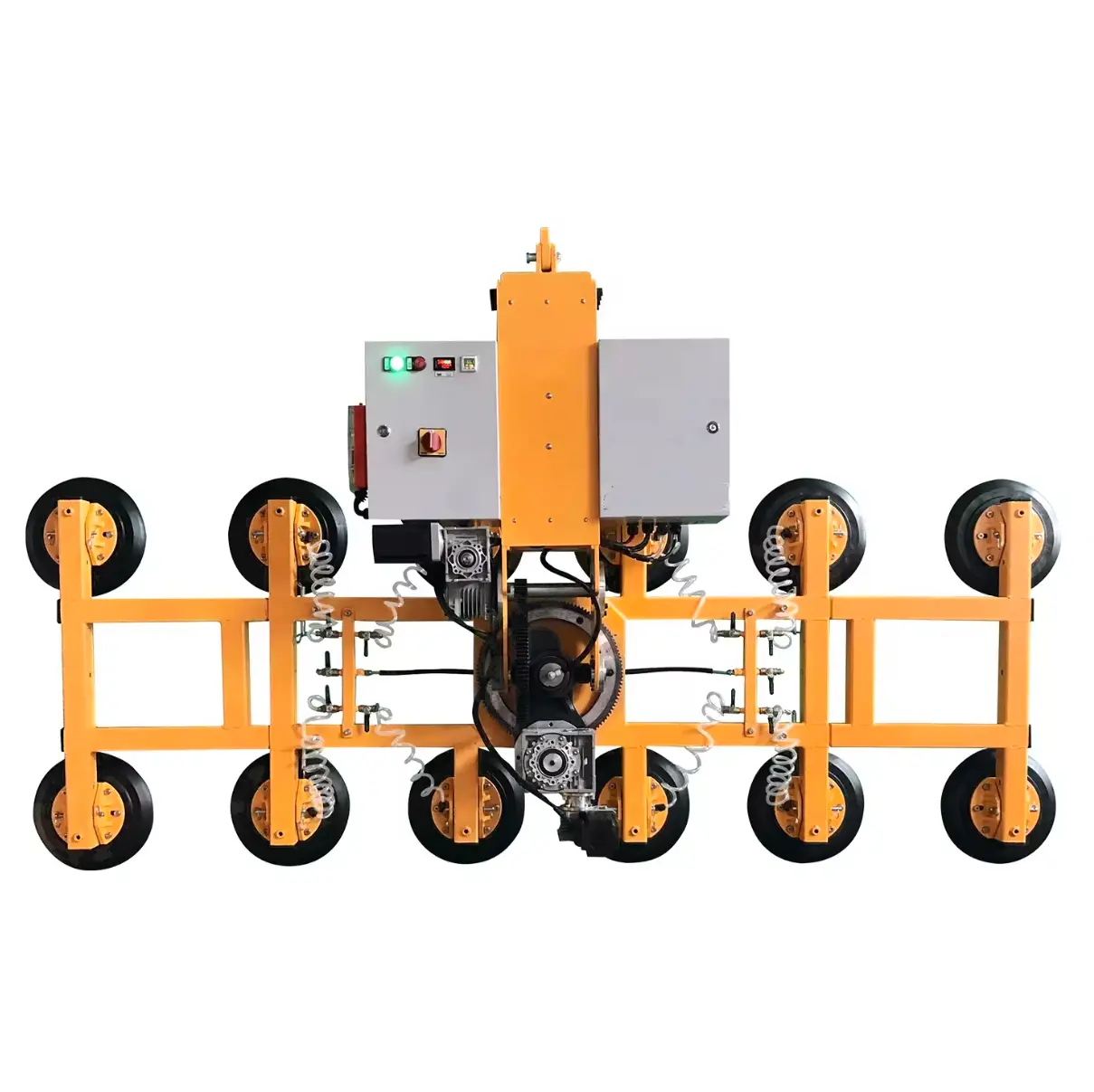

BILLIONS LIFTER® 48V Electric Glass Vacuum Lifter
BILLIONS LIFTER® Electric Glass Vacuum Lifter – 48V Battery, 7500kg, Powered Tilt & Rotate
The BILLIONS LIFTER® Electric Glass Vacuum Lifter is a heavy-duty, cordless glass vacuum hoist engineered for the most demanding outdoor glazing projects. Powered by a robust 48V rechargeable battery system, this self-contained lifter needs no external cables or air lines, delivering unlimited mobility on site. With a massive 7500kg lifting capacity, it securely handles oversized curtain wall panels, jumbo laminated glass, and thick structural glazing units — making it the premier installation tool for façade contractors and large-scale glass works.
Equipped with powered 90° tilt and powered 360° rotation, operators can remotely control the glass from horizontal transport to vertical installation and rotate it precisely into position without any manual effort. The fully electric actuators work seamlessly with the intelligent vacuum reserve system, which automatically locks vacuum and triggers an alarm in the event of power loss, ensuring the load remains safely suspended for a guaranteed retention period.
<7500KG
Max lifting load
>8 Hours
Battery endurance
90° Flip
Powered tilt function
360° Rotate
Powered rotation function
48V Battery. 7500kg Capacity. Powered Tilt & Rotate.
Heavy-duty cordless glass manipulator for curtain wall panels, jumbo glass and structural glazing.
Function Introduction
Fully Powered Glass Lifting for Mega Glazing Projects
Designed for façade contractors who need high lifting capacity, cordless mobility, long endurance, powered positioning and reliable vacuum safety on demanding outdoor sites.
Long Endurance
Extended operating time supports continuous use in demanding installation projects and long construction-site work shifts.
High Safety
Reliable vacuum suction, vacuum reserve protection, check valves and alarm monitoring help secure heavy glass even in challenging site conditions.
Easy Mobility
Ideal for outdoor and on-site installation projects with no power constraints, no air hose, no cable limitation and unrestricted jobsite movement.
<7500KG
Maximum load capacity for jumbo curtain wall panels and oversized structural glazing units.
>8 Hours
Battery life for heavy-duty outdoor glazing workflows and large-panel installation cycles.
90° + 360°
Powered tilt and rotation controlled by wireless remote for precise glass positioning.
Application Scenarios
Heavy-Duty Cordless Glass Handling for Large-Scale Projects

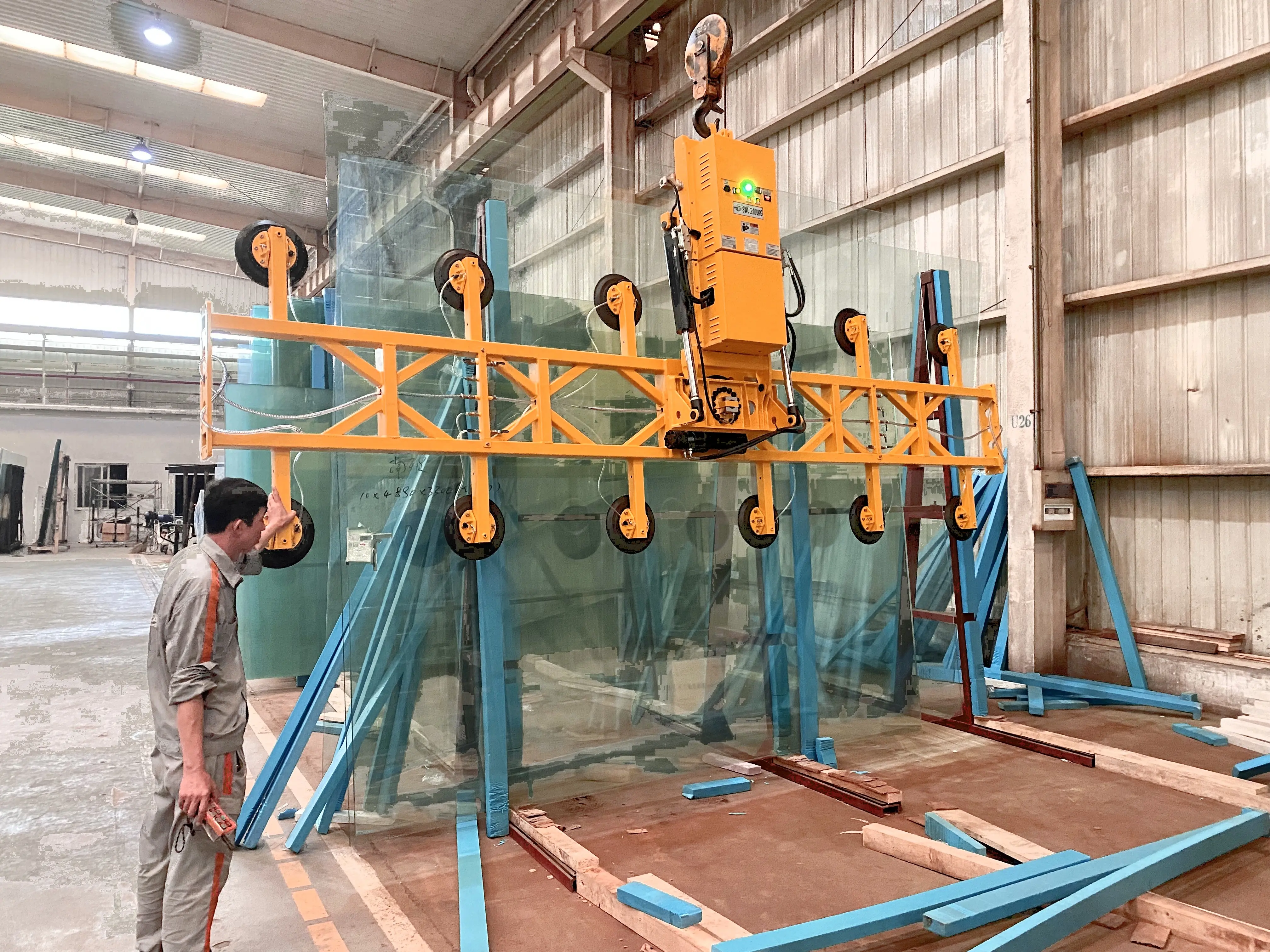

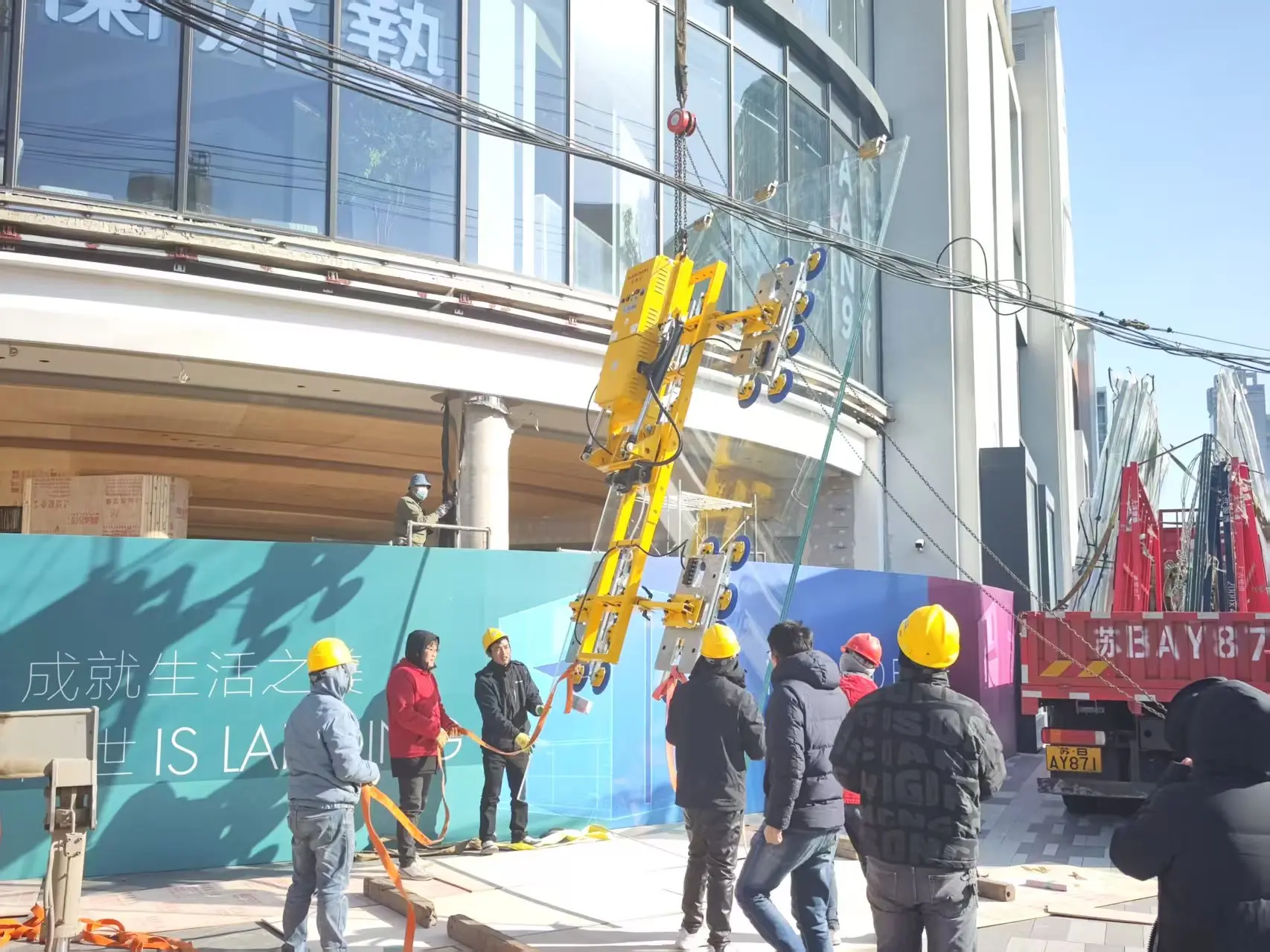

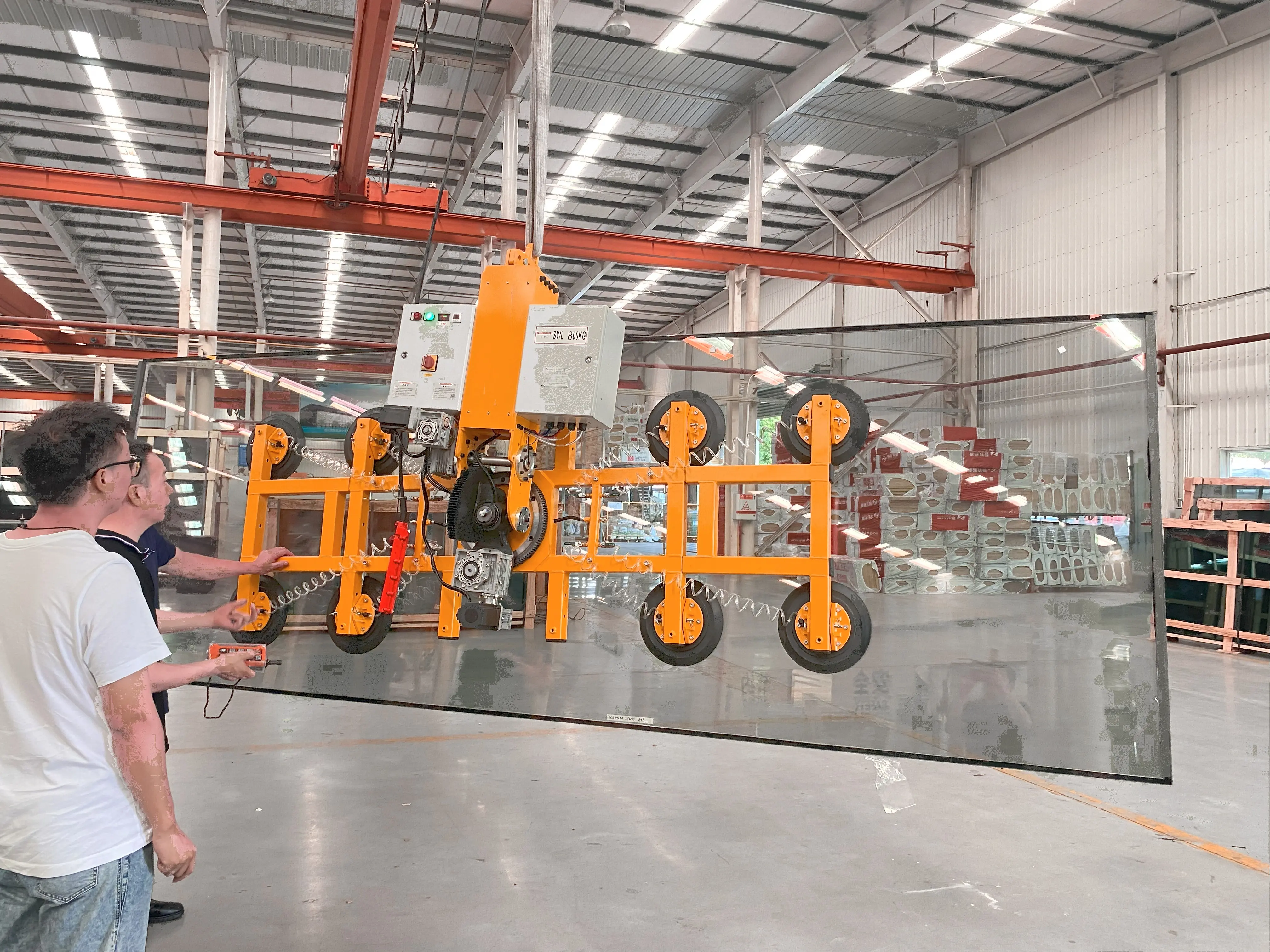

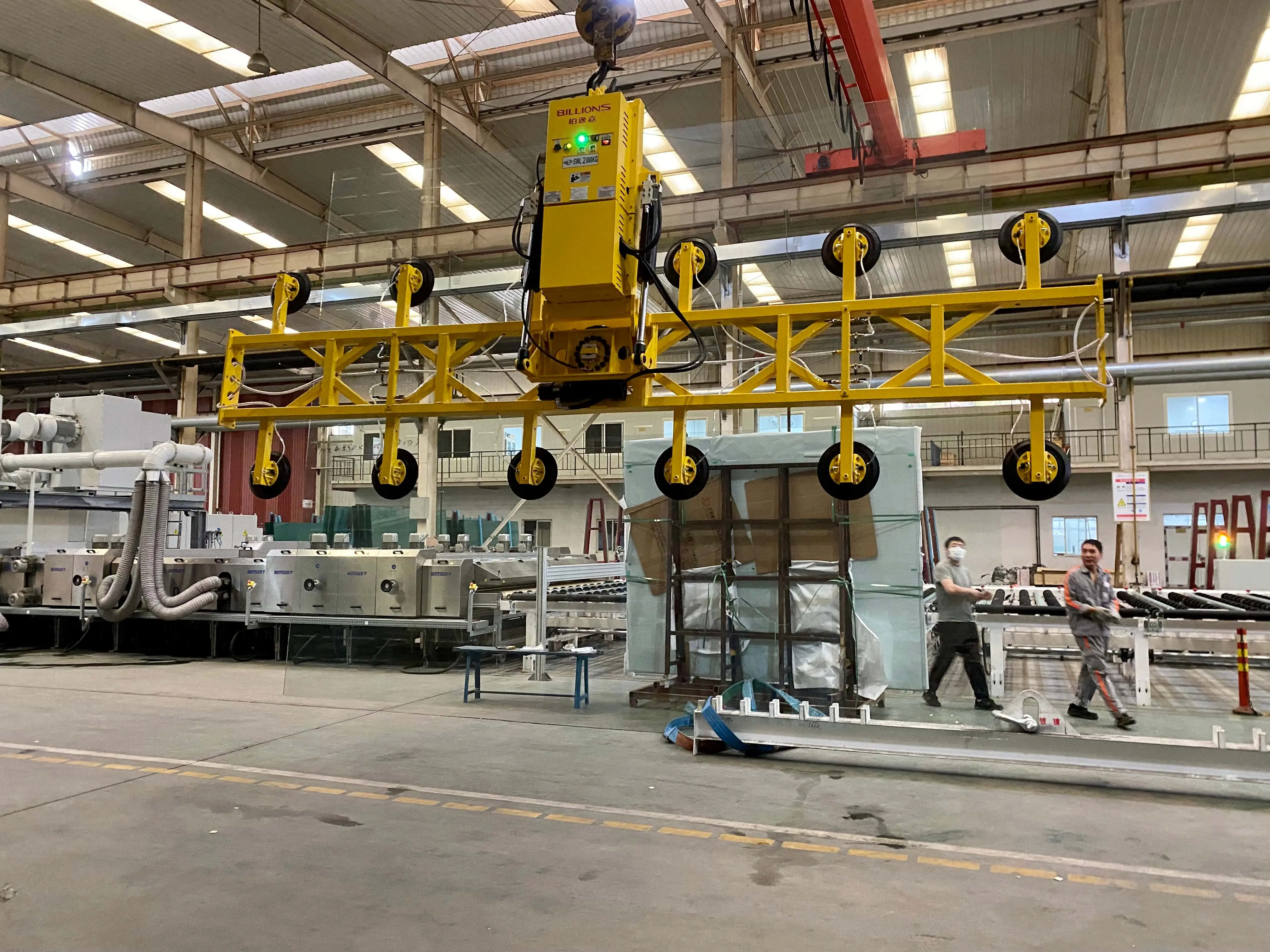

BILLIONS LIFTER® 48V electric glass vacuum lifter is designed for unitized curtain wall installation, mega panel glazing, skylights, atriums, commercial lobby glass, ballistic glass and oversized glass replacement.
Product Specifications
48V Electric Glass Vacuum Lifter Models
Click to expand model specifications. BILLIONS LIFTER® provides electric drive and hydraulic drive solutions for different heavy-duty glass installation requirements.
View Full Product Specifications Load capacity, powered tilt and rotation, control method, drive type, large sucker configuration and reference units.
| Model / Series | Product Image | Load Capacity | Function | Drive Type | Control Method | Power System |
|---|---|---|---|---|---|---|

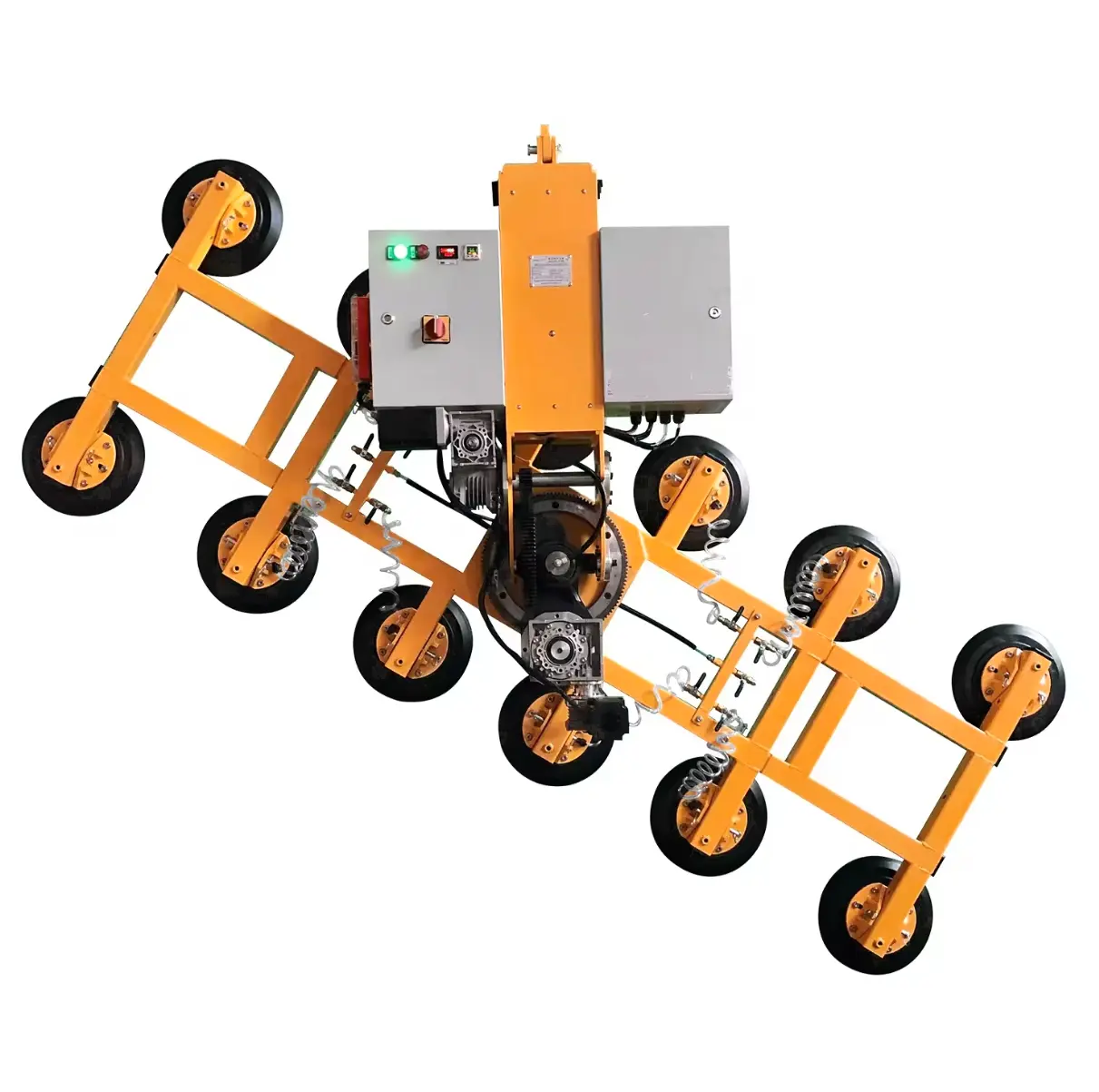

| TB-VGO Electric Drive |
|
600-1000 kgApprox. 1,323-2,205 lb | 90° Flip + 360° RotationPowered tilt and powered rotation | Electric DriveElectric actuator movement | Wireless Remote ControlRemote positioning operation | 48V BatteryRechargeable DC battery system |

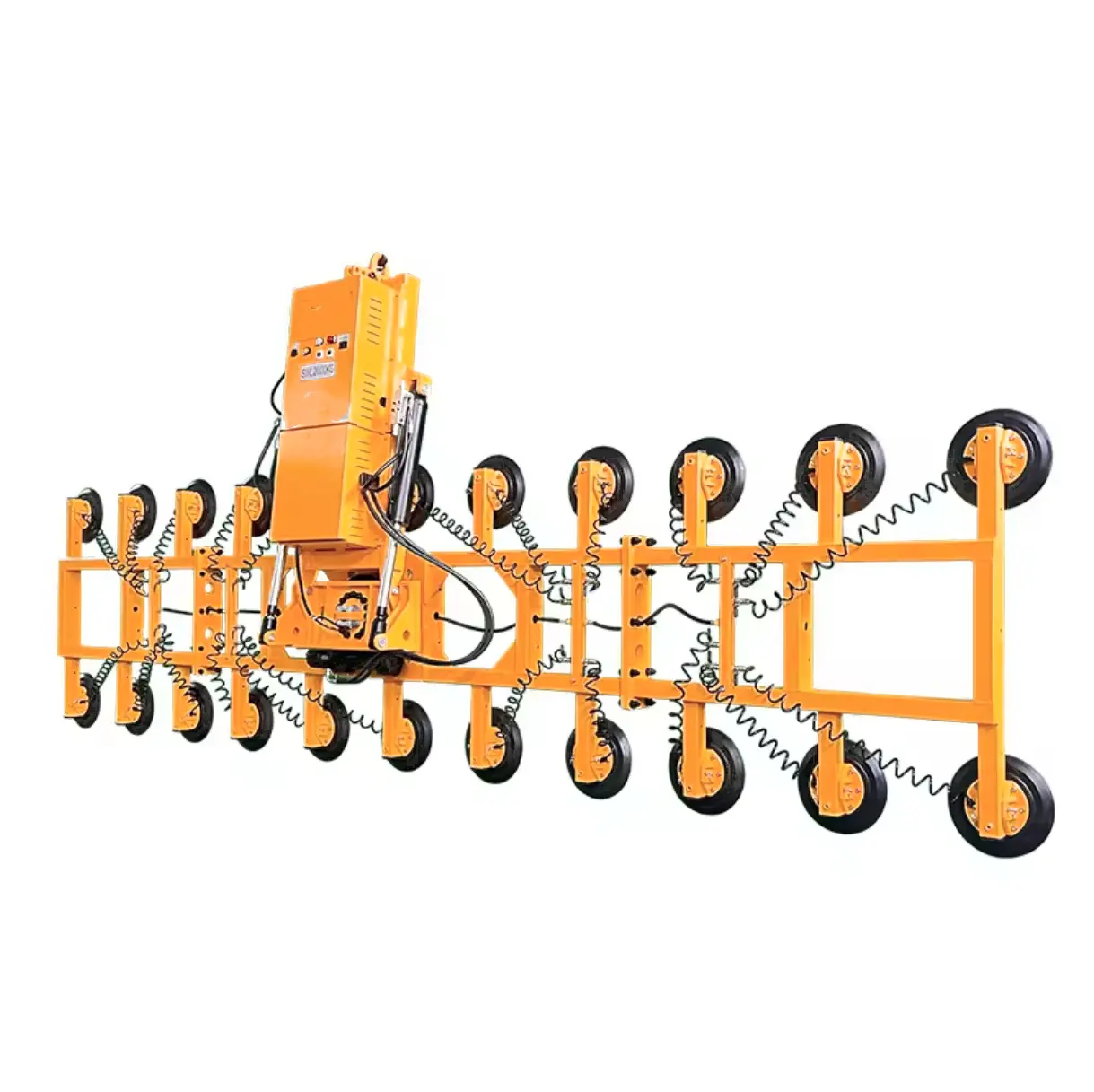

| B-VGOI Hydraulic Drive |
|
500 / 7500 kgApprox. 1,102 / 16,535 lb | 90° Flip + 360° RotationPowered tilt and powered rotation | Hydraulic DriveFor large-capacity glass handling | Wireless Remote ControlRemote heavy glass positioning | 48V BatteryTB-VGO Series large sucker configuration |
Video Demonstration
See BILLIONS 48V Electric Glass Vacuum Lifter in Action
Watch how the heavy-duty battery-powered glass suction lifter performs powered 90° tilt, powered 360° rotation and remote-controlled outdoor glazing operations.
Heavy-Duty Electric Glass Installation Demonstration
48V battery-powered cordless glass vacuum hoist for 7500kg mega glass panels, curtain wall installation, skylights and structural glazing.
Factory Direct & Customization
Contact BILLIONS LIFTER® for 48V Heavy-Duty Electric Glass Vacuum Lifting Solutions
BILLIONS LIFTER® is a direct manufacturer of heavy-duty electric glass vacuum lifters for unitized curtain wall installation, mega panel glazing, skylight installation, public façade projects, industrial glazing and oversized glass replacement.
Tell us your glass size, glass weight, installation height, site ground condition, crane or forklift connection method, required tilt and rotation mode, and safety requirements. Our engineering team will recommend the most suitable 48V cordless glass manipulator configuration.
FAQ
Frequently Asked Questions
Common buyer questions about 48V electric glass vacuum lifters, 7500kg battery glass suction lifters and heavy-duty cordless glass manipulators.
Q1: What is a 48V electric glass vacuum lifter? How does it differ from other glass handling equipment?
A: A 48V electric glass vacuum lifter — also known as a 48V battery-powered glass suction lifter, heavy-duty cordless glass manipulator, or DC electric glass vacuum hoist — is a self-contained unit that uses a large 48V battery bank to run the vacuum pump and all motion functions. Unlike pneumatic or mains-powered lifters, BILLIONS LIFTER® 7500kg models require no trailing cables or air hoses. The higher voltage platform supplies ample power for the vacuum system, electric tilt and rotation actuators, making it the ultimate tool for handling ultra-large glass panels weighing several tons on outdoor sites.
Q2: How does the lifter ensure safety at the 7500kg load capacity?
A: The BILLIONS LIFTER® 7500kg electric glass vacuum lifter is engineered with multiple safety layers: redundant vacuum pumps and a dual-circuit vacuum system ensure adhesion even if one pump fails; a large vacuum reservoir with check valves locks the vacuum in case of a total power loss, holding the glass safely for a minimum of 20 minutes while an audible and visual alarm activates; and the powered tilt and rotate drives are equipped with self-locking mechanisms to prevent any drift. The safety margin is extremely high throughout the lift.
Q3: Does this model come with powered tilt and rotate, or is it manual?
A: It is fully powered. The unit features motorized 90° tilt and motorized 360° rotation as standard. Operators simply use the wireless remote control or pendant to adjust the glass orientation effortlessly. Unlike manual glass lifters that require physical cranking, the BILLIONS LIFTER® electric actuator system makes positioning glass loads measured in tons precise and virtually effortless.
Q4: How long does the 48V battery last? Can it be charged on site?
A: The high-capacity 48V battery bank supports continuous heavy-duty cycles. Exact duration depends on load weight and cycle frequency, but typically a single charge lasts the majority of a full workday under normal large-panel installation rhythms. The supplied smart charger allows fast top-ups during breaks, and spare batteries can be hot-swapped for truly continuous operation. BILLIONS LIFTER® also offers multi-battery pack configurations.
Q5: What outdoor installation applications is this lifter designed for? Only new curtain wall projects?
A: Its application is broad: unitized curtain wall installation, large stick-built façade panel mounting, mega skylight glazing, oversized shopfront glass in commercial complexes, as well as replacement of heavy structural glass in factories, exhibition halls, and museums. As long as the glass is within the 7500kg limit, the lifter handles both new construction and retrofit work. Its terrain-ready chassis negotiates a variety of ground surfaces.
Q6: Can it handle curved or irregularly shaped glass?
A: The standard setup is optimized for flat glass. For slightly curved panels or irregular shapes such as trapezoids, BILLIONS LIFTER® can adjust the beam arms and suction cup positions to match. For complex geometries or large curvatures, we provide custom cup layouts and contoured pad frames — we recommend consulting our engineering team for a tailored assessment.
Technical Parameter
BILLIONS VACUUM LIFTERS
Professional Glass Handling Solutions - Efficient, Safe, Reliable
TB-VGO Electric drive
- Load Capacity: 600KG – 1000KG
- Function: 90° Flip + 360° Rotation Dual Function
- Control method: : Wireless remote control
-
TB-VGOI Hydraulic drive
- Load Capacity: 500KG/750KG
- Function: 90° Flip + 360° Rotation Dual Function
- Control method: Wireless remote control
- TB-VGO Series (Large Sucker)
