BILLIONS LIFTER® Vacuum Tube Lifter for Bags: Professional Handling for Sacks & Woven Bags
Experience the power of BILLIONS LIFTER®. Our vacuum bag lifters offer ergonomic, high-speed handling for plastic, paper, and porous woven sacks, ensuring a safer workplace and optimized production flow across global markets.
Move any bag with BILLIONS LIFTER®
Universal Suction Technology + Mechanical Gripper for Woven Bags. Suitable materials: Plastic & Poly Bags, Multi-layer Paper Bags, Woven PP Sacks, Porous Mesh Bags.

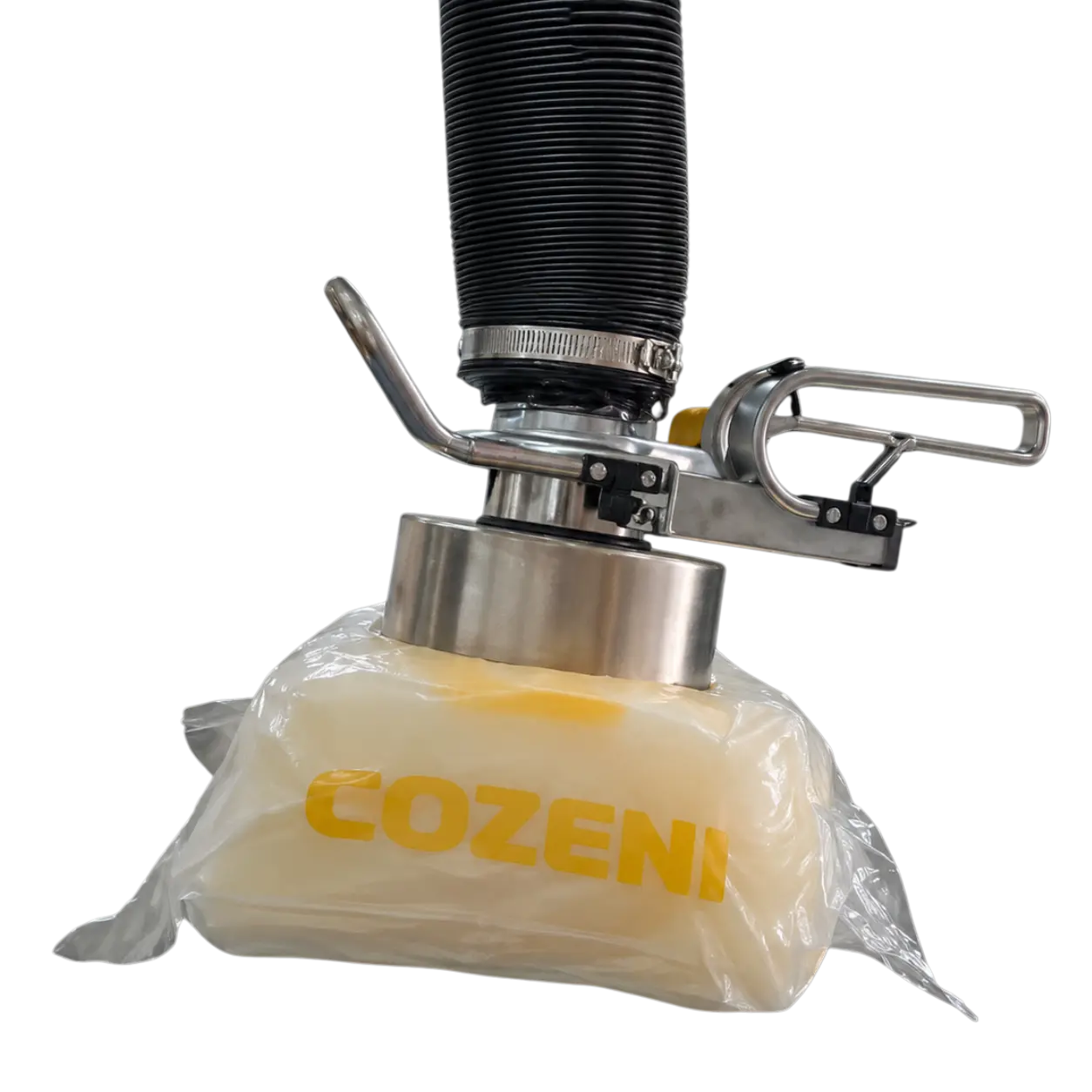

Plastic & Poly Bags

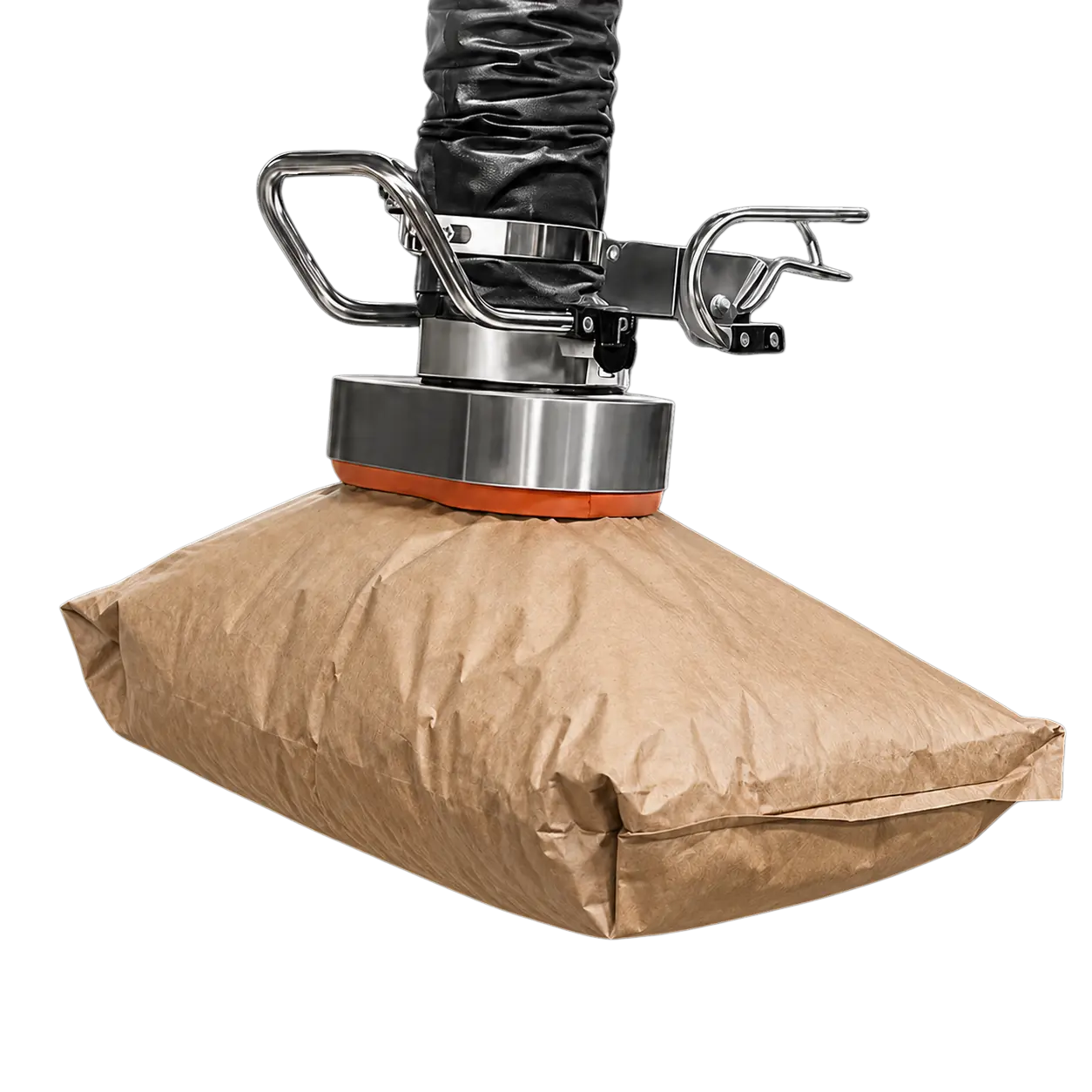

Multi‑wall Paper Bags

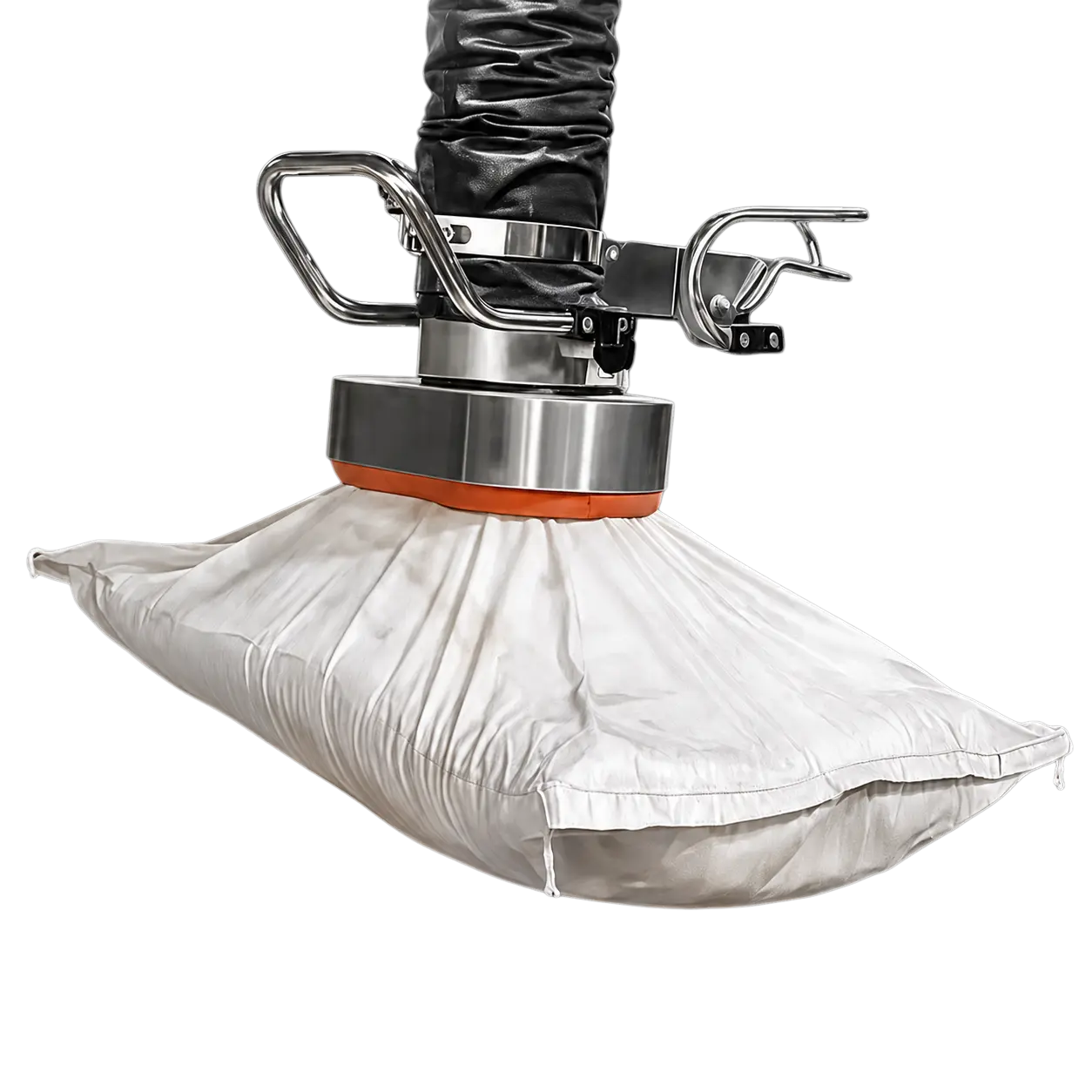

Woven PP Sacks

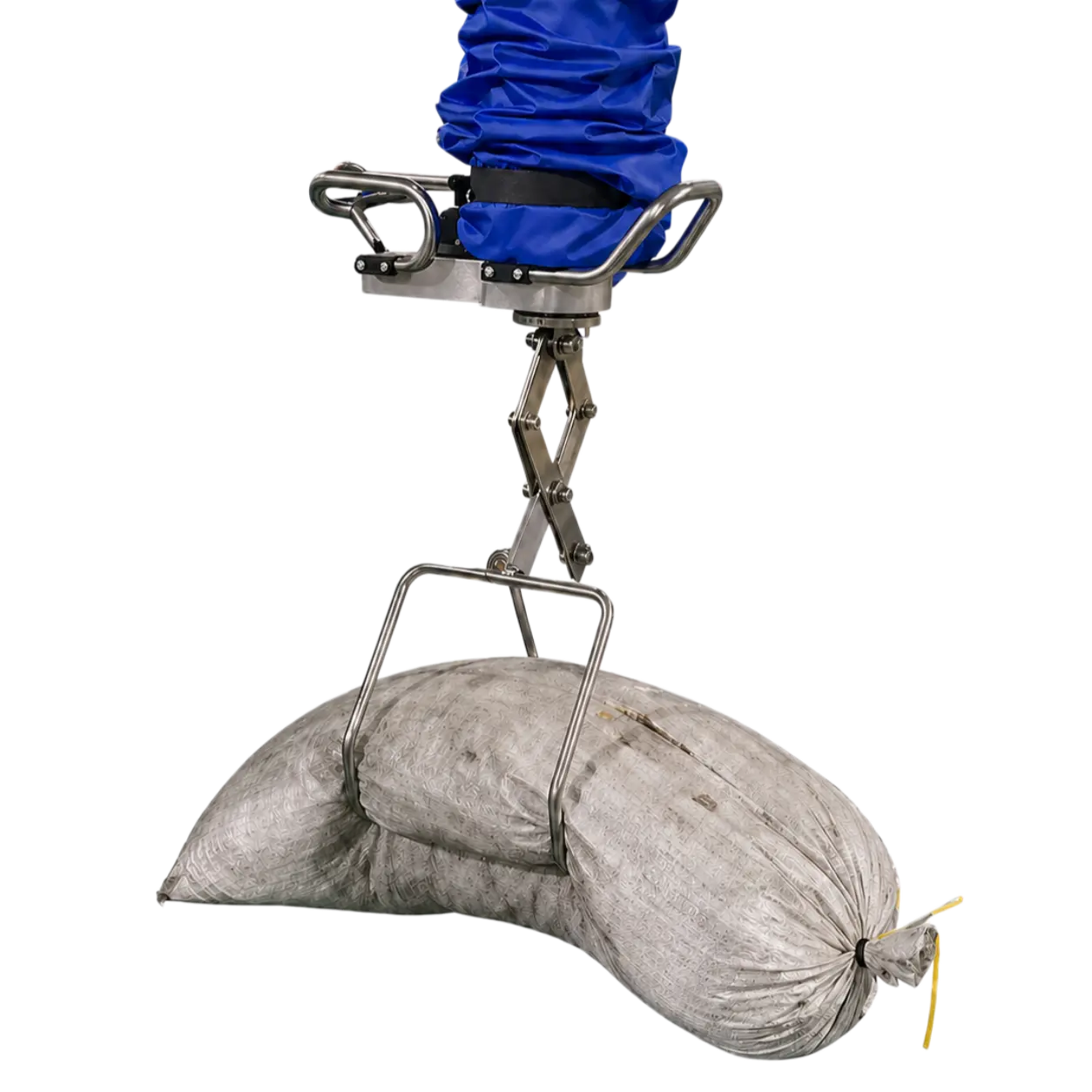

Porous Sacks & Gripper
Universal Suction Technology: Non-porous bags like plastic & multi-layer paper sealed with 100% reliability. Porous Sacks Specialty: For woven bags with high air permeability, BILLIONS LIFTER® provides specialized Mechanical Gripper attachments to guarantee a secure hold. Eliminates physical strain from 25kg up to 300kg, reduces sick leave, and protects delicate packaging.
Application Scenarios: BILLIONS palletizing solutions & industrial sack handling equipment
Food & Ingredient Processing
Safe and hygienic movement of ingredients like flour, grains, or spices in cleanroom environments. BILLIONS vacuum tube lifter ensures zero spillage and total ergonomic control.
Chemical & Raw Material Mixing
Streamlined feeding of heavy chemical bags into mixers or reactors with precision control. Reduce dust exposure and increase batch consistency.
End-of-line Palletizing
Rapidly stack bags onto pallets for shipment, minimizing downtime and labor costs. BILLIONS palletizing solutions boost throughput up to 30%.
Pharmaceutical Warehousing
Precise handling of high-value bagged materials where safety and accuracy are paramount. ATEX-compliant versions available for sensitive zones.
BILLIONS LIFTER® provides customized lifting solutions tailored to your specific site requirements.
1. Pillar-Mounted Jib Crane
2. Mobile Pillar Jib Crane
3. Wall-Mounted Jib Crane
4. KBK Light Rail System
BILLIONS LIFTER® Offers a Wide Range of Handle Options
We provide the most comfortable control methods tailored to your specific operating habits and working conditions.
One-Handed Easy Control
Featuring a fully integrated design for lifting, suction, and release, this handle is ideal for rapid, high-frequency light-duty handling tasks.
Two-Handed Robust Control
Designed for heavy-duty loads or tasks requiring high-precision positioning, providing superior stability and a sense of total control.
Extended & Adjustable Handles
Easily handle high-level palletizing or deep-reach picking. It expands the operational radius while ensuring maximum operator comfort.
Intelligent & Ergonomic Control Features
It’s more than just material handling—it’s an efficient, safe, and intelligent experience.
Stepless High-Speed Lifting
With a response speed of 0-1m/s (197 ft/min), it allows for intuitive control of the handling tempo, significantly boosting production line efficiency.
Precise Hovering Under No-Load
After releasing the handle, the suction head automatically stabilizes and hovers at any height, ensuring the next pick-up is quick and convenient.
Secure Hovering Under Load
Even when suctioning heavy objects, the system achieves precise hovering and fine-tuning, ensuring the placement position is accurate to the millimeter.
TECHNICAL SPECIFICATIONS - BILLIONS LIFTER® FOR BAGS
[ Click for Details + ]
| MODEL | LOAD (KG / LBS) | SUCKER (MM / IN) | LIFT SPEED (M/S / FT/MIN) | VACUUM PUMP (KW / HP) |
|---|---|---|---|---|
| TB-VAT-100 | 30 kg / 66 lbs | 100 mm / 3.9" | Approx. 1 m/s | 2.2kw / 3.0 hp |
| TB-VAT-120 | 50 kg / 110 lbs | 120 mm / 4.7" | Approx. 1 m/s | 3.5kw / 4.7 hp |
| TB-VAT-140 | 60 kg / 132 lbs | 140 mm / 5.5" | Approx. 1 m/s | 3.5kw / 4.7 hp |
| TB-VAT-160 | 70 kg / 154 lbs | 160 mm / 6.3" | Approx. 1 m/s | 4.5kw / 6.0 hp |
| TB-VAT-180 | 90 kg / 198 lbs | 180 mm / 7.1" | Approx. 1 m/s | 4.5kw / 6.0 hp |
| TB-VAT-200 | 120 kg / 265 lbs | 200 mm / 7.9" | Approx. 1 m/s | 4.5kw / 6.0 hp |
| TB-VAT-230 | 150 kg / 330 lbs | 230 mm / 9.1" | Approx. 1 m/s | 5.5kw / 7.4 hp |
Frequently Asked Questions
Q1: Can BILLIONS LIFTER® handle highly porous woven bags?
Absolutely. We offer a dual-solution approach: high-flow vacuum power for semi-porous bags and specialized pneumatic grippers for loose-weave sacks. The Mechanical Gripper for Woven Bags ensures a secure hold even with high air permeability, making it the perfect sack handler for agricultural or chemical woven bags.
Q2: Is the system suitable for hazardous or explosive environments?
Yes, we provide fully pneumatic versions (non-electric) that comply with global explosion-proof standards, ideal for dusty chemical zones. BILLIONS LIFTER® ATEX-certified models eliminate spark risks and are built for pharma, grain, or chemical bag handling with maximum safety.
Q3: What is the lifespan of the vacuum lifting tube?
Our tubes are crafted from high-durability synthetic materials, tested for over 1 million cycles. With proper care, they typically last 3-5 years, even in demanding bag-lifting applications handling plastic, paper, and woven sacks daily.
Q4: What happens in the event of a sudden power or air failure?
Safety is our priority. A built-in non-return safety valve ensures the load is held and lowered slowly to the ground, preventing any sudden drop. This feature guarantees operator safety and product integrity when lifting heavy bags up to 300 kg.
Q5: Can I integrate this with my existing workshop structure?
Our systems are modular. They can be mounted on BILLIONS® Pillar Jib Cranes, Wall-mounted Jibs, or KBK Ceiling Rail Systems to fit your specific layout. Our engineering team provides full integration support, whether you need a fixed workstation or mobile bag lifting solution.
